AIR
FORCE
T033A1-13^96-1
NAVELEX
0969-LP-170-0010
General
Information

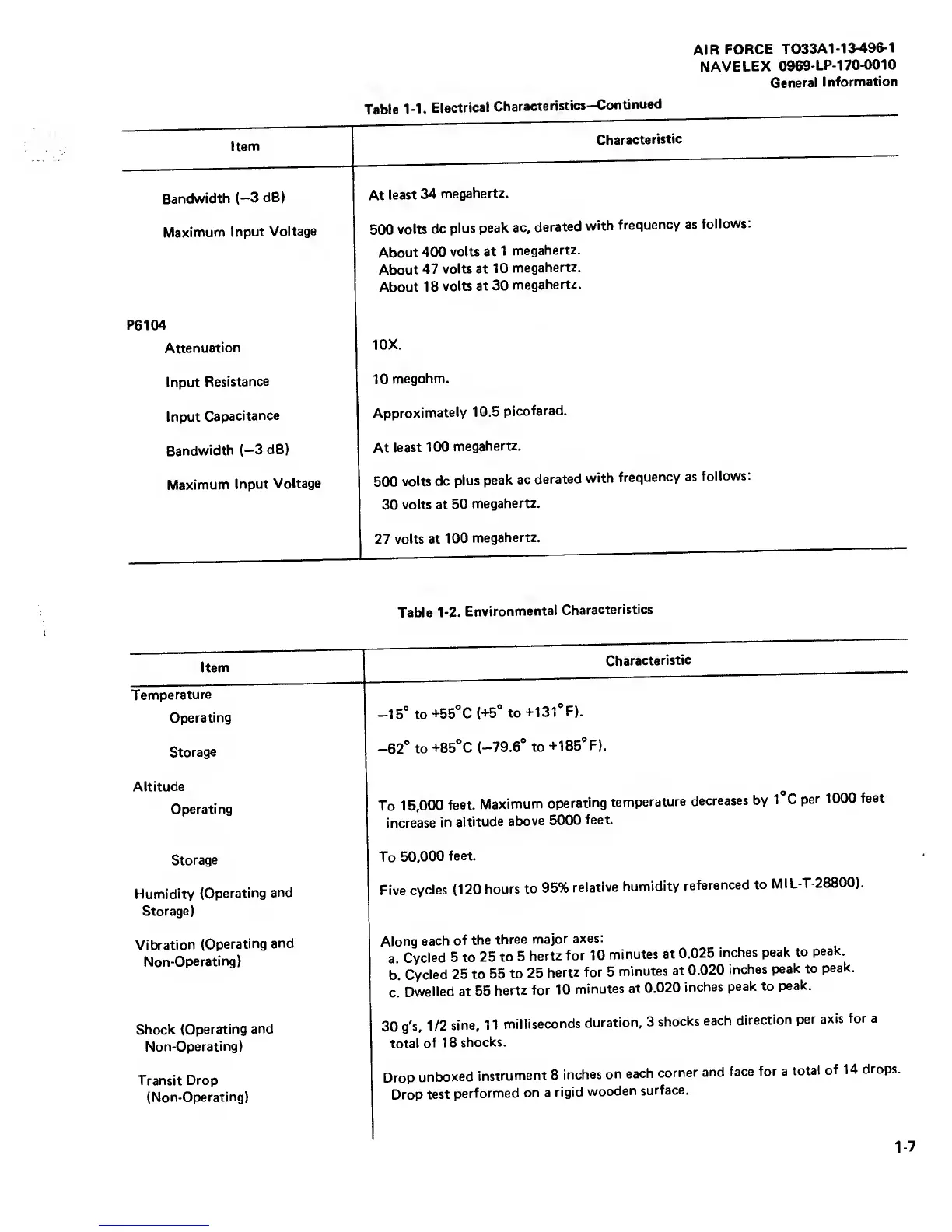

Table
1-1.
Electrical
Characteristics-Continued
Item
Characteristic
Bandwidth
(—3 dB)
At
least
34
megahertz.
Maximum
Input
Voltage
500
volts
dc
plus
peak
ac,
derated
with
frequency
as
follows:
About
400
volts at
1
megahertz.
About
47
volts at
10
megahertz.
About
18
volts
at 30
megahertz.
P6104
Attenuation
10X.
Input
Resistance
1 0
megohm.
Input
Capacitance
Approximately
10.5
picofarad.
Bandwidth
(—3 dB)
At
least
100
megahertz.
Maximum
Input
Voltage
500
volts
dc
plus
peak
ac
derated
with
frequency
as
follows;
30
volts at
50
megahertz.
27
volts at
100
megahertz.
Table
1-2.
Environmental
Characteristics
Item
Characteristic
Temperature
Operating
-15°
to
-^55°C
(-!-5°
to
+131°F).
Storage
-62°
to
-H85°C
(-79.6°
to
-H85°F).
Altitude
Operating
To
15,000
feet.
Maximum
operating
temperature
decreases by
1°C
per
1000
feet
increase
in
altitude
above
5000
feet.
Storage
To
50,000
feet.
Humidity
(Operating
and
Storage)
Five
cycles (120
hours
to
95%
relative
humidity
referenced
to
MIL-T-28800).
Vibration
(Operating
and
Non-Operating)
Along
each
of
the
three
major
axes:
a.
Cycled
5 to
25
to 5
hertz
for 10
minutes
at
0.025
inches
peak
to
peak.
b.
Cycled
25 to
55
to
25
hertz
for 5
minutes
at
0.020
inches
peak
to
peak.
c.
Dwelled at
55
hertz for
10
minutes
at
0.020
inches
peak
to
peak.
Shock
(Operating
and
Non-Operating)
30
g's,
1/2
sine,
1 1
milliseconds
duration,
3
shocks
each
direction
per
axis
for a
total
of
1 8
shocks.
Transit Drop
(Non-Operating)
Drop
unboxed
instrument
8
inches
on
each
corner
and
face
for a
total
of
14
drops.
Drop
test
performed
on a
rigid
wooden
surface.
1-7
