AIR
FORCE T033A1-13-496-1
NAVE
LEX
0969-LP-1
70-0010
General
Information

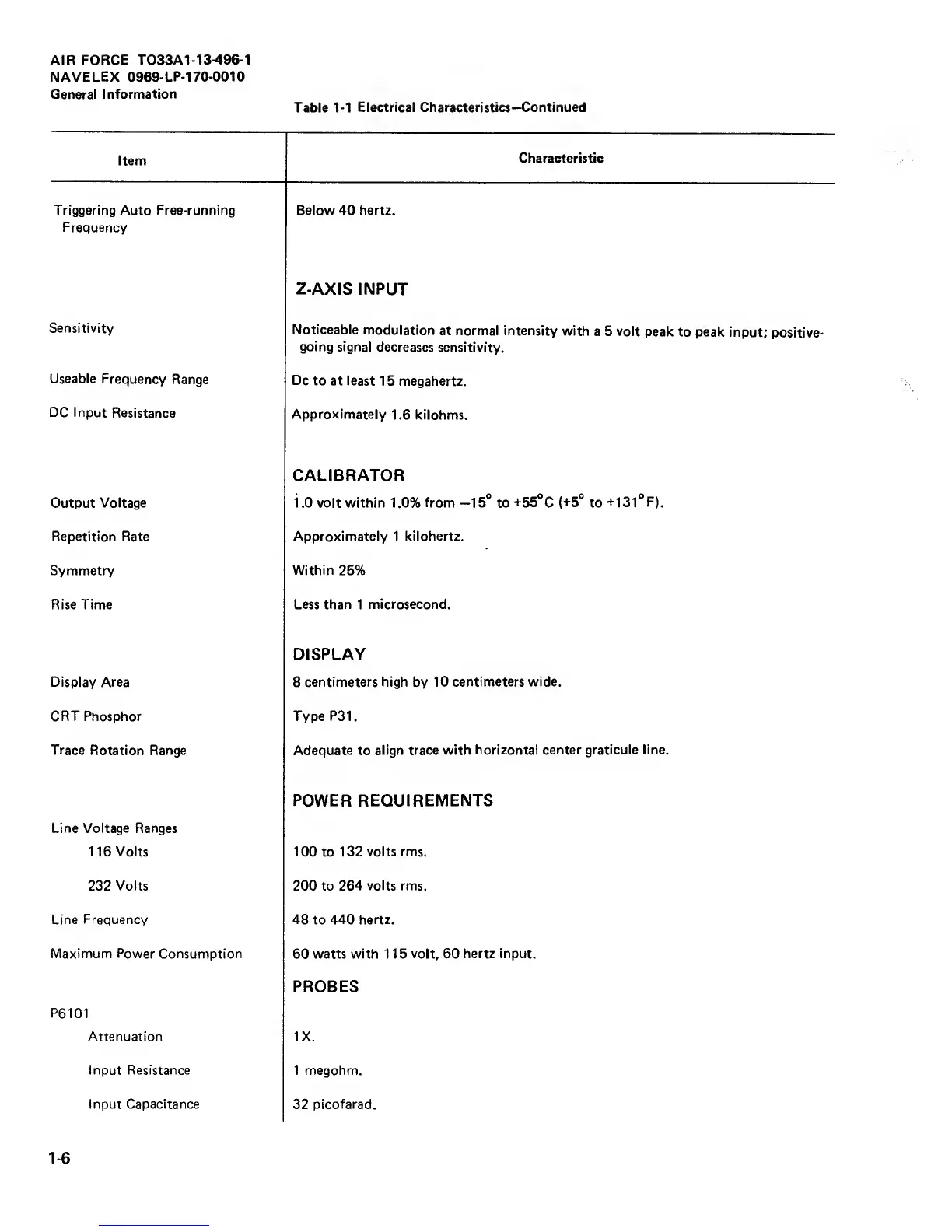

Table
1-1
Electrical Characteristics—Continued
Item
Characteristic
Triggering Auto
Free-running
Frequency
Below 40 hertz.
Z-AXIS
INPUT
Sensitivity
Noticeable
modulation
at normal intensity
with
a 5 volt
peak to peak
input;
positive-
going signal
decreases
sensitivity.
Useable Frequency
Range
Dc
to at least
15 megahertz.
DC Input
Resistance
Approximately
1.6
kilohms.
CALIBRATOR
Output Voltage 1.0 volt within 1.0%
from
—15°
to +55°C
(+5°
to
-H31°F).
Repetition Rate Approximately 1
kilohertz.
Symmetry Within
25%
Rise
Time Less than
1
microsecond.
DISPLAY
Display Area
8
centimeters high
by
10
centimeters wide.
CRT Phosphor Type
P31
.
Trace
Rotation
Range Adequate
to
align trace with
horizontal center graticule line.
POWER REOUIREMENTS
Line Voltage Ranges
116 Volts 100
to
132 volts rms.
232
Volts
200 to
264 volts rms.
Line Frequency 48
to
440 hertz.
Maximum Power Consumption
60
watts with 115
volt,
60
hertz input.
PROBES
P6101
Attenuation
IX.
Input Resistance
1 megohm.
Input Capacitance
32
picofarad.
1-6
