AIR
FORCE
T033A1
-13-496-1
NAVELEX
0969-LP-170-0010
Maintenance
Instructions

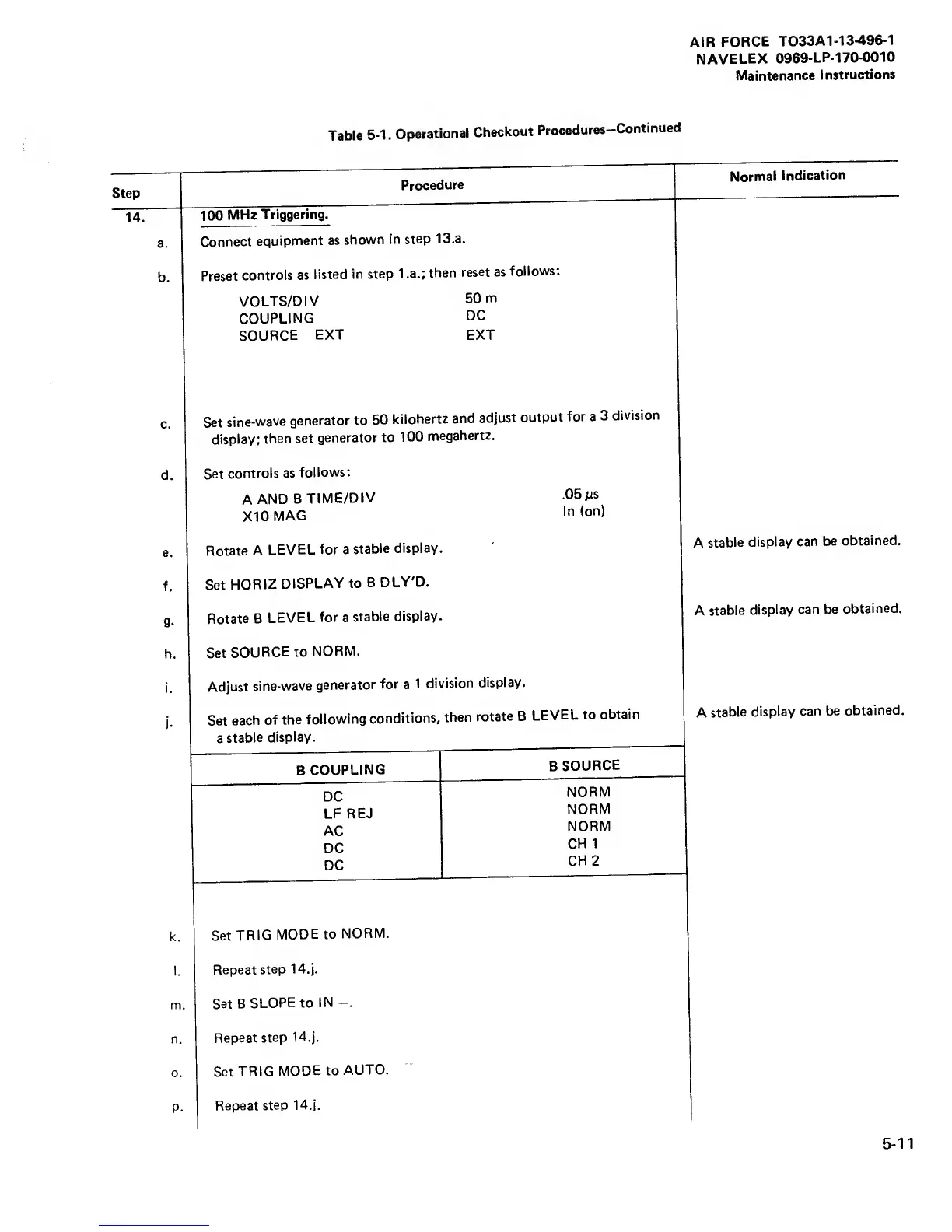

Table
5-1.
Operational
Checkout
Procedures-Continued
Step
Procedure
Normal
Indication
14.
100
MHz
Triggering.
a.
Connect
equipment
as
shown
in step
13.a.
b.
Preset
controls
as
listed in
step
1.
a.;
then
reset as
follows;
VOLTS/DIV
50
m
COUPLING
DC
SOURCE
EXT
EXT
c.
Set
sine-wave
generator
to
50
kilohertz
and
adjust
output
for a
3
division
display;
then
set
generator to
100
megahertz.
d.
Set
controls
as
follows;
AANDBTIME/DIV
.05
ps
X10
MAG
In (on)
e.
Rotate
A
LEVEL
for a
stable
display.
A
stable
display
can
be
obtained.
f.
Set
HORIZ
DISPLAY
to
B
DLY'D.
g.
Rotate
B
LEVEL
for
a
stable
display.
A
stable
display
can
be
obtained.
h.
Set
SOURCE
to
NORM.
i.
Adjust
sine-wave
generator
for
a
1
division
display.
j.
Set
each
of
the
following
conditions,
then
rotate B
LEVEL
to
obtain
A
stable
display
can
be
obtained.
a
stable
display.
B
COUPLING
B
SOURCE
DC
NORM
LF
REJ
NORM
AC
NORM
DC
CH
1
DC
CH 2
k.
Set
TRIG
MODE
to
NORM.
1 .
Repeat
step 14.j.
m.
Set
B
SLOPE to
IN
-.
n.
Repeat
step 14.
j.
0.
Set
TRIG
MODE
to
AUTO.
p.
Repeat
step 14.j.
5-11
