Tektronix 465M User Manual

AIR FORCE T033A1-13-496-1
NAVELEX
0969-LP-170-0010
General
Information
Table

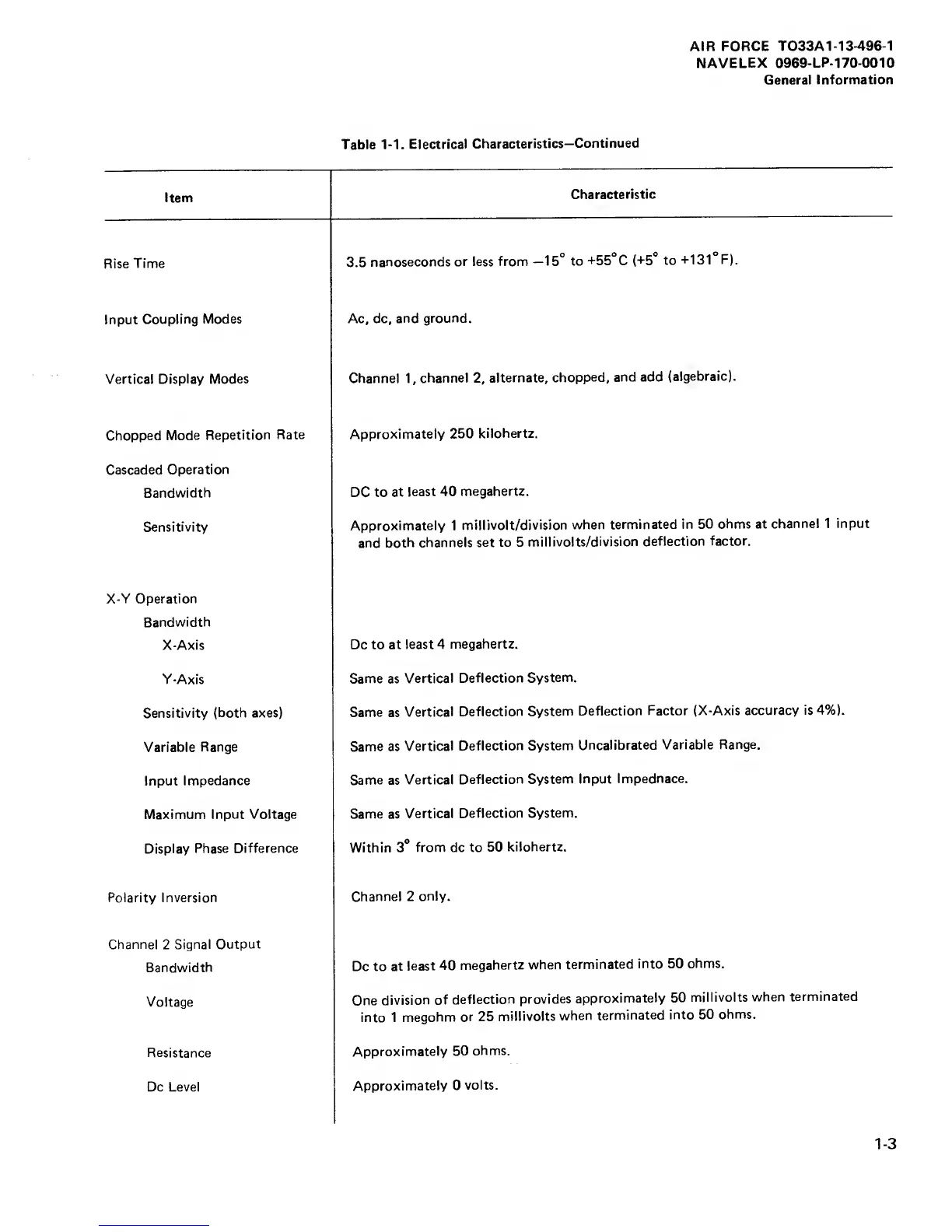

1-1.
Electrical
Characteristics—
Continued
Item
Characteristic
Rise
Time
3.5
nanoseconds
or less from
—15°
to
-t55°C
(-1-5°
to
-h131°F).
input
Coupling
Modes
Ac, dc,
and ground.
Vertical
Display Modes
Channel
1,
channel
2,
alternate,
chopped,
and add
(algebraic).
Chopped
Mode
Repetition
Rate
Approximately
250
kilohertz.
Cascaded
Operation
Bandwidth
DC to at
least
40
megahertz.
Sensitivity
Approximately 1
millivolt/division
when terminated
in 50
ohms
at
channel 1 input
and
both
channels set to
5
millivolts/division
deflection
factor.
X-Y Operation
Bandwidth
X-Axis
Dc to at
least 4
megahertz.
Y-Axis
Same as
Vertical
Deflection
System,
Sensitivity (both axes)
Same
as
Vertical
Deflection System
Deflection Factor
(X-Axis accuracy
is
4%).
Variable Range
Same as
Vertical
Deflection System
Uncalibrated
Variable
Range.
Input
Impedance
Same
as
Vertical
Deflection
System
Input
Impednace.
Maximum
Input Voltage
Same as
Vertical
Deflection
System.
Display
Phase Difference
Within
3°
from dc to
50
kilohertz.
Polarity Inversion
Channel 2
only.
Channel
2
Signal
Output
Bandwidth
Dc to
at
least
40
megahertz
when
terminated
into 50
ohms.
Voltage
One
division
of
deflection
provides
approximately
50
millivolts
when
terminated
into 1
megohm or
25
millivolts
when
terminated
into
50 ohms.
Resistance
Approximately
50
ohms.
Dc Level
Approximately
0
volts.
1-3
