Tektronix 465M User Manual

AIR FORCE T033A1-13-496-1
NAVELEX
0969-LP-170-0010

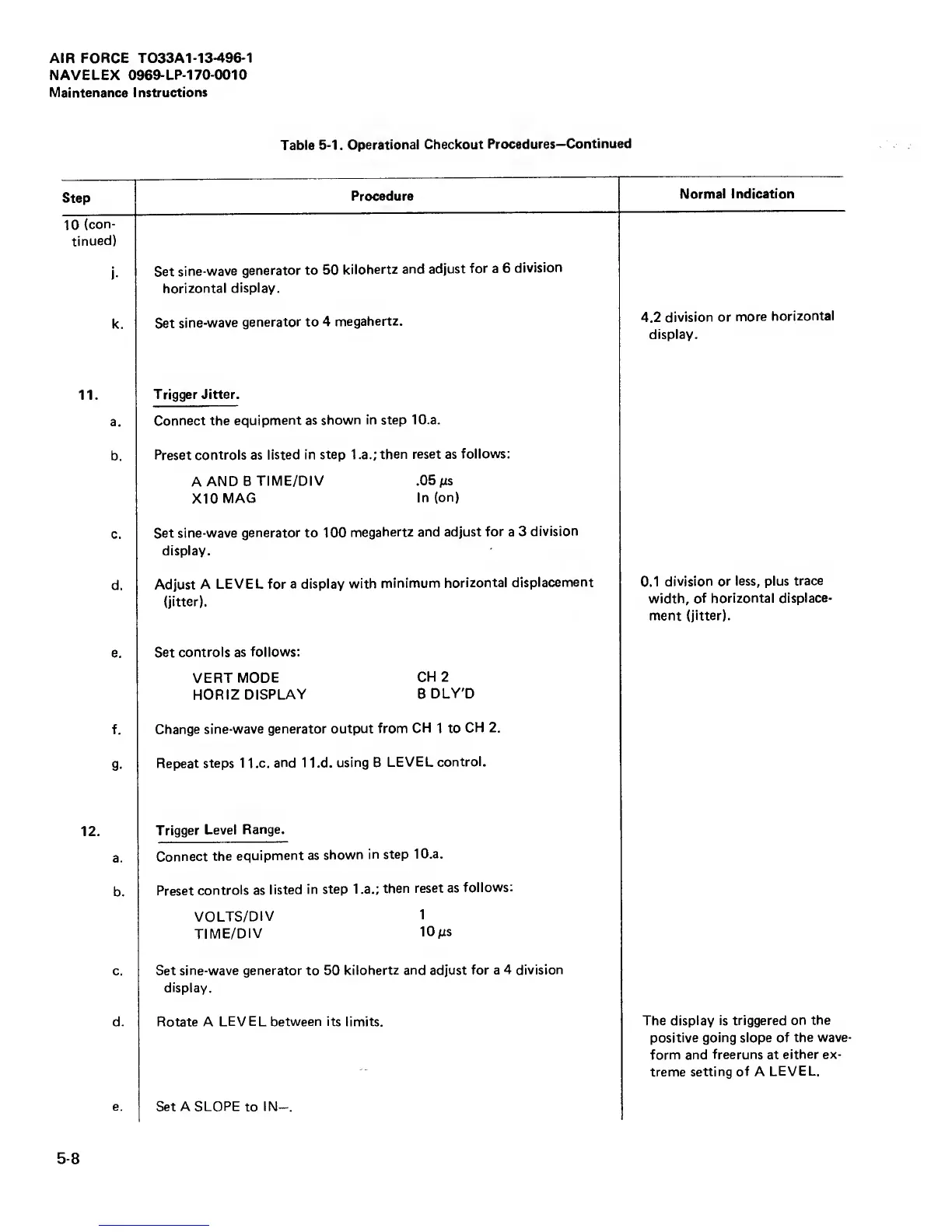

Maintenance
Instructions
Table
5-1. Operational
Checkout
Procedures—
Continued
Step
10
(con-
tinued)
Procedure
Normal Indication
Set
sine-wave
generator to
50
kilohertz
and adjust
for a
6
division
horizontal
display.
k.
Set
sine-wave
generator to
4
megahertz.
4.2
division or
more
horizontal
display.
11 .
Trigger Jitter.
Connect
the
equipment as shown
in step lO.a.
b.
Preset controls as
listed in step 1 .a.;
then
reset
as
follows:
A
AND B
TIME/DIV .05
ps
X10
MAG
In
(on)
c.
Set
sine-wave
generator to 100
megahertz and adjust
for a 3
division
display.
d.
Adjust
A LEVEL for a
display with
minimum
horizontal
displacement
(jitter).
e.
Set
controls as
follows;
VERT MODE
CH 2
HORIZ
DISPLAY
B
DLY'D
f.
Change
sine-wave
generator
output from
CH
1 to
CH 2.
9-
Repeat
steps 11.
c.
and ll.d.
using
B
LEVEL control.
0.1
division or
less, plus
trace
width, of
horizontal
displace-
ment
(jitter).
12.
Trigger
Level
Range.
Connect
the
equipment as
shown
in step
lO.a.
b.
Preset
controls as
listed
in
step 1 .a.;
then
reset as
follows:
VOLTS/D
IV
1
TIME/DIV
lOps
c. Set
sine-wave generator
to 50
kilohertz and
adjust
for a 4
division
display.
d. Rotate A
LEVEL between its
limits.
e.
Set A SLOPE
to
IN-.
The
display is triggered on
the
positive going slope of
the wave-
form and
freeruns
at
either ex-
treme
setting of
A
LEVEL.
5-8
