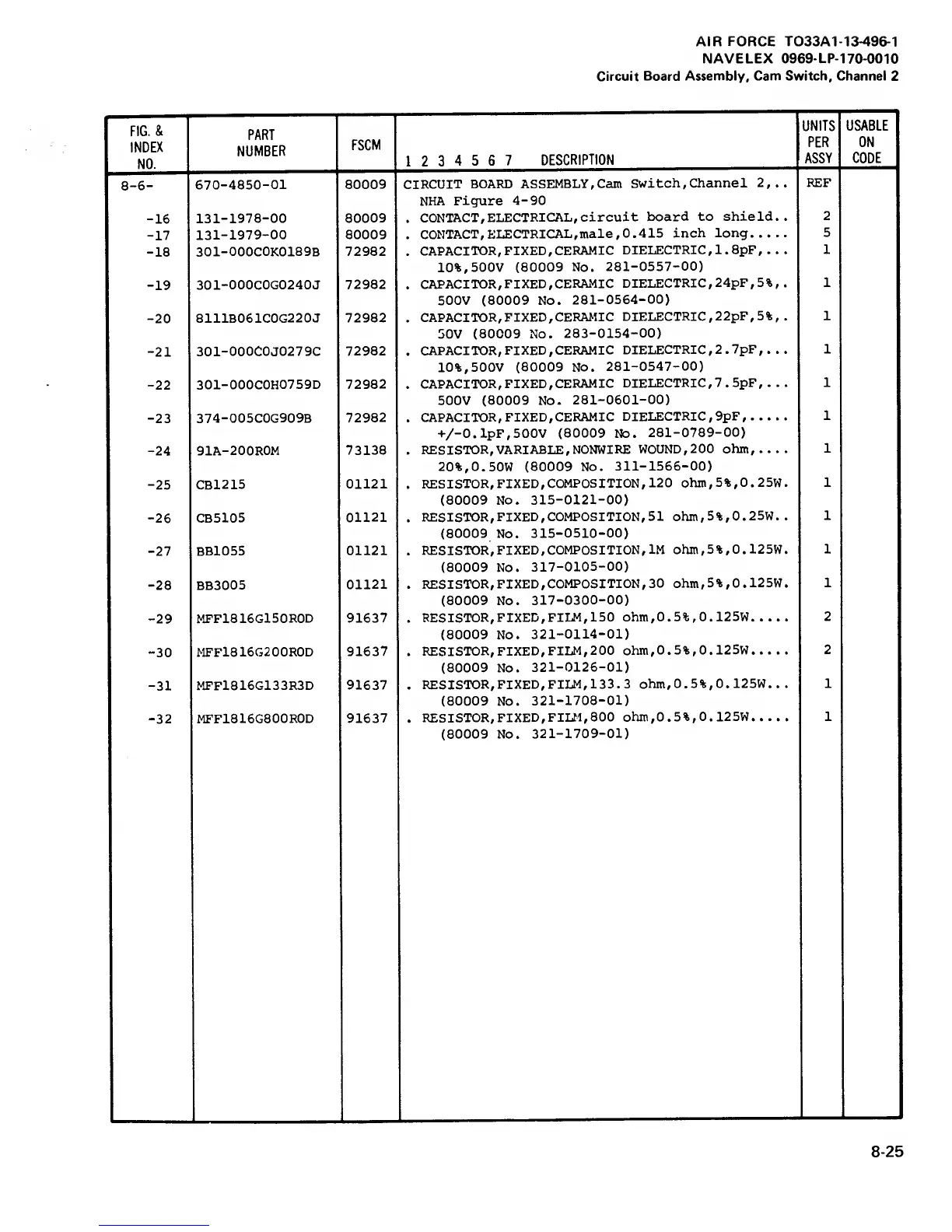

AIRFORCE
T033A1
-13-496-1
NAVELEX
0969-LP-170-0010
Circuit
Board
Assembly,
Cam
Switch,
Channel
2
FIG.
&
INDEX
NO.
PART
NUMBER
FSCM
1
2
3
4
5
6
7
DESCRIPTION
USABLE
ON
CODE
8-6-
670-4850-01
80009
CIRCUIT
BOARD
ASSEMBLY,
Cam
Switch,
Channel
2,..
NHA
Figure
4-90
REF
-16
131-1978-00
80009
CONTACT,
ELECTRICAL,
circuit
board
to
shield..
2
-17
131-1979-00
80009
CONTACT,
ELECTRICAL,
male,
0.415
inch
long
5
-18
3O1-O00C0K0189B
72982
CAPACITOR,
FIXED,
CERAMIC
DIELECTRIC
,
1
.
8pF
,
.
.
.
10%,
500V
(80009
No.
281-0557-00)
1
-19
301-000C0G0240J
72982
CAPACITOR,FIXED,
CERAMIC
DIELECTRIC,
24pF
,
5%
,
.
500V
(80009
No.
281-0564-00)
1
-20
8111B061C0G220J
72982
CAPACITOR,
FIXED,
CERAMIC
DIELECTRIC
,
22pF
,
5%
,
.
50V
(80009
No.
283-0154-00)
1
-21
301-000C0J0279C
72982
CAPACITOR,
FIXED,
CERAMIC
DIELECTRIC,
2
.
7pF
,
.
.
.
10%,
500V
(80009
No.
281-0547-00)
1
-22
301-000C0H0759D
72982
CAPACITOR,
FIXED,
CERAMIC
DIELECTRIC,
7
.
5pF
,
.
.
.
500V
(80009
No.
281-0601-00)
1
-23
374-005COG909B
72982
CAPACITOR,
FIXED,
CERAMIC
DIELECTRIC
,
9pF
+/-0.1pF,500V
(80009
No.
281-0789-00)
1
-24
91A-200R0M
73138
RESISTOR,
VARIABLE,
NONWIRE
WOUND,
200
ohm,
20%,0.50W
(80009
No.
311-1566-00)
1
-25
CB1215
01121
RESISTOR,
FIXED,
COMPOSITION,
120
ohm,
5%
,0
.
25W.
(80009
No.
315-0121-00)
1
-26
CB5105
01121
RESISTOR,
FIXED,
COMPOSITION,
51
ohm,
5%,
0
.
25W.
.
(80009
No.
315-0510-00)
1
-27
BB1055
01121
RESISTOR,
FIXED,
COMPOSITION,
IM
ohm,
5%
,
0
.
125W.
(80009
No.
317-0105-00)
1
-28
BB3005
01121
RESISTOR,
FIXED,
COMPOSITION,
30
ohm,
5%
,
0
.
125W.
(80009
No.
317-0300-00)
1
-29
MFF1816G150R0D
91637
RESISTOR,FIXED,
FILM,
150
ohm,
0
.
5%
,
0
.
125W
(80009
No.
321-0114-01)
2
-30
MFF1816G200R0D
91637
RESISTOR,
FIXED,
FILM,
200
ohm,
0
.
5%
,
0
.
125W
(80009
No.
321-0126-01)
2
-31
MFF1816G133R3D
91637
RESISTOR,FIXED,FILM,133.3
ohm,
0
.
5%
,
0.
125W.
.
.
(80009
No.
321-1708-01)
1
-32
MFF1816G800R0D
91637
RESISTOR,
FIXED,
FILM,
800
ohm,
0
.
5%,
0
.
125W
(80009
No.
321-1709-01)
1
8-25
166
168
