PRESS IN
ON PIVOT
POINTS
BOTH
SIDES
TO
POSITION

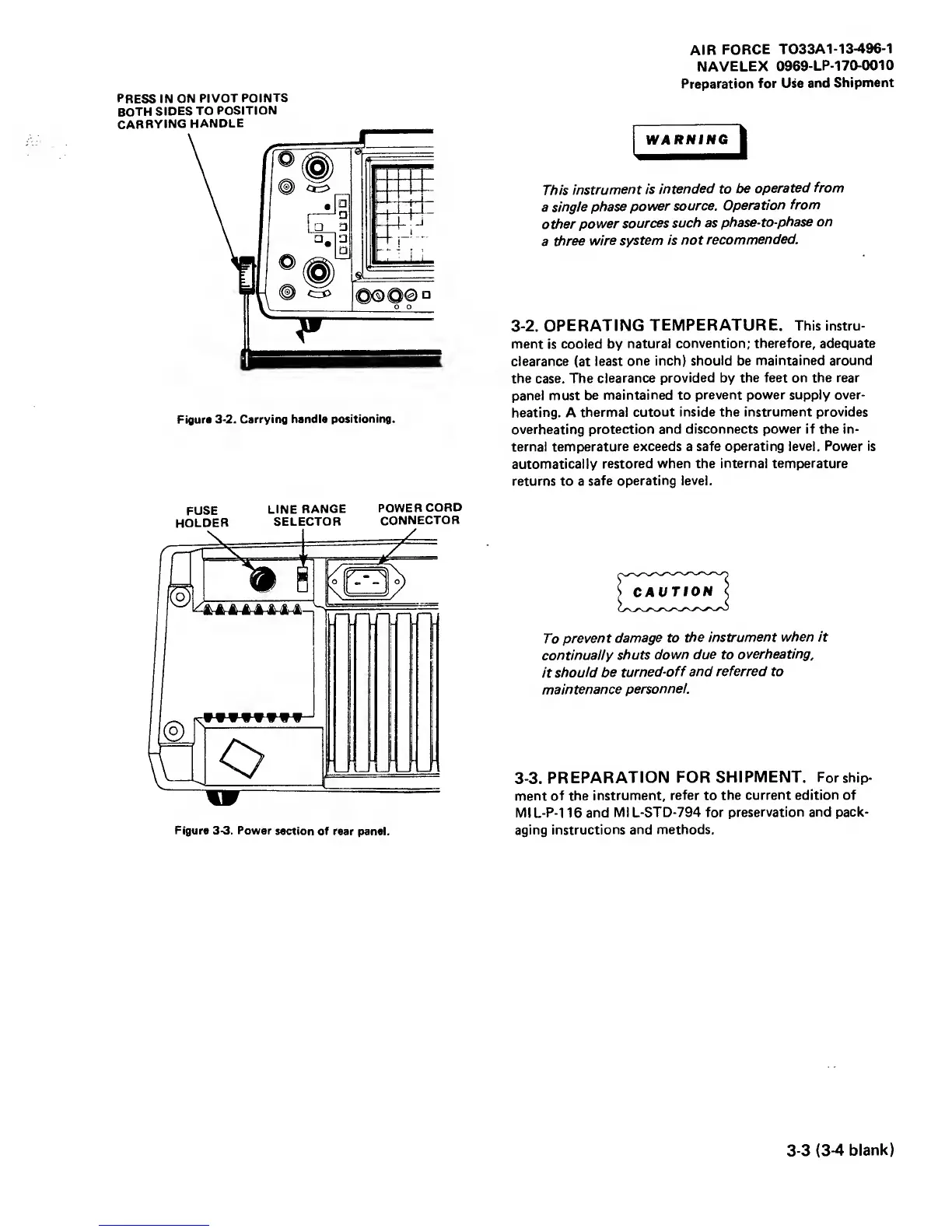

Figure
3-2.
Carrying handle
positioning.
FUSE
LINE
RANGE
POWER
CORD
HOLDER
SELECTOR
CONNECTOR
AIR
FORCE
T033A1-13-496-1
NAVELEX
0969-LP-1
70-0010
Preparation
for Use
and
Shipment
WAWWIWG
I
This
instrument
is
intended to
be
operated
from
a
single
phase
power
source.
Operation
from
other
power
sources
such as
phase-to-phase
on
a
three
wire system
is not
recommended.
3-2.
OPERATING
TEMPERATURE. This instru-
ment
is
cooled by
natural
convention; therefore, adequate
clearance
(at
least
one inch)
should
be
maintained around
the case. The
clearance
provided
by
the feet on the rear
panel must
be
maintained
to
prevent power supply over-
heating.
A
thermal
cutout inside the instrument provides
overheating
protection and disconnects power if the in-
ternal
temperature exceeds a
safe operating level. Power is
automatically
restored when the
internal temperature
returns to a
safe
operating level.
To
prevent
damage to
the
instrument when it
continuaiiy
shuts
down due to
overheating,
it
should
be
turned-off
and referred to
maintenance
personnel.
3-3.
PREPARATION FOR
SHIPMENT. For ship-
ment of the
instrument,
refer
to
the
current edition
of
MIL-P-1
16
and
MIL-STD-794 for
preservation and pack-
aging instructions
and methods.
3-3
(3-4 blank)
