AIR FORCE T033A1
-13-496-1
NAVELEX
0969-LP-170-0010
Maintenance
Instructions

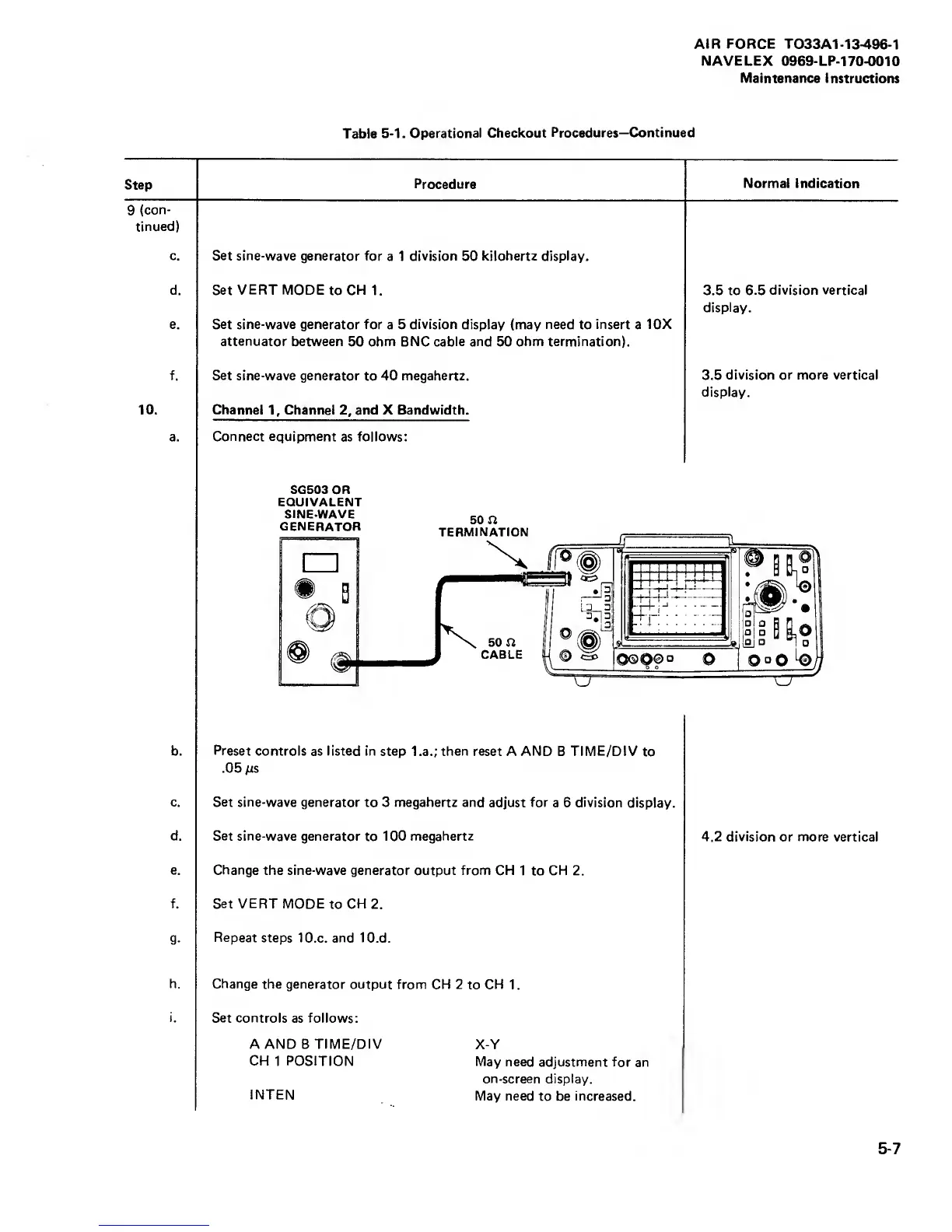

Table
5-1.
Operational Checkout
Procedures—Continued
Step
9
(con-
tinued)
Procedure
Normal Indication
c. Set
sine-wave generator for
a 1
division
50
kilohertz display.
d. Set
VERT
MODE
to
CH
1.
e. Set sine-wave generator for
a 5
division
display (may
need
to
insert
a
10X
attenuator
between
50
ohm BNC cable and
50
ohm termination).
3.5 to
6.5 division vertical
display.
f. Set
sine-wave generator
to
40 megahertz.
10
.
Channel
1,
Channel
2,
and X Bandwidth.
a.
Connect equipment
as follows;
3.5
division or more vertical
display.
SG503 OR
EQUIVALENT
b.
c.
d.
e.
f.
g-
Preset
controls as listed in step
l.a.;
then reset
A AND B
TIME/DI
V to
.05
MS
Set sine-wave
generator to 3 megahertz and
adjust
for
a 6 division display.
Set sine-wave
generator to 100 megahertz
Change
the sine-wave generator output from CH
1
to
CH
2.
4.2 division
or
more
vertical
Set
VERT
MODE
to
CH
2.
Repeat
steps lO.c. and lO.d.
h. Change
the generator
output from CH 2
to
CH
1
.
i.
Set controls
as follows:
A AND B TIME/DIV
CH
1
POSITION
INTEN
X-Y
May
need adjustment
for an
on-screen
display.
May
need
to be
increased.
5-7
