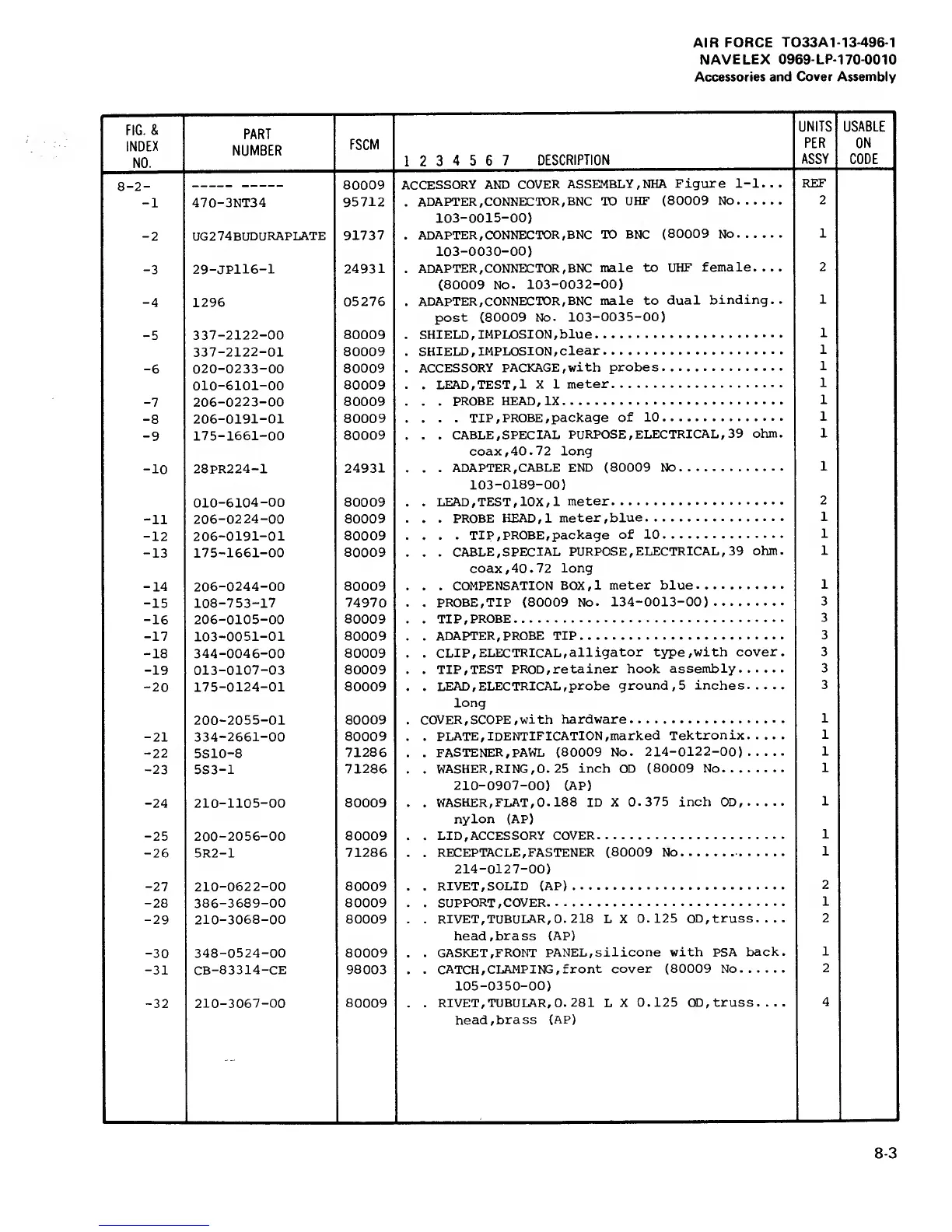

AIR
FORCE
T033A1-13-496-1
NAVELEX 0969- LP-1
70-0010
Accessories and
Cover
Assembly
FIG.
&
INDEX
NO.
PART
NUMBER
FSCM
1 2
3
4 5 6
7
DESCRIPTION
USABLE
ON
CODE
8-2-
80009
ACCESSORY
AND COVER
ASSEMBLY,
NHA
Figure
1-1... REF
-1
470-3NT34
95712 .
ADAPTER,
CONNECTOR, BNC TO
UHF (80009 No
2
103-0015-00)
-2
UG
2
74BUDURAPLATE 91737
.
ADAPTER,
CONNECTOR, BNC TO
BNC (80009
No
1
103-0030-00)
-3
29-JP116-1
24931 .
ADAPTER,
CONNECTOR, BNC
male
to UHF
female....
2
(80009 No.
103-0032-00)
-4
1296
05276 .
ADAPTER,
CONNECTOR, BNC
male to
dual
binding..
1
post (80009 No.
103-0035-00)
-5
337-2122-00
80009
. SHIELD,
IMPLOSION,
blue
1
337-2122-01 80009 . SHIELD,
IMPLOSION,
clear
1
-6
020-0233-00 80009 .
ACCESSORY
PACKAGE,
with probes
1
010-6101-00 80009
.
.
LEAD, TEST,
1 X 1
meter
1
-7
206-0223-00
80009
. . .
PROBE HEAD, IX
1
-8
206-0191-01 80009
.... TIP,
PROBE, package
of 10
1
-9
175-1661-00 80009
.
. .
CABLE,
SPECIAL PURPOSE
, ELECTRICAL,
39
ohm. 1
coax,
40. 72 long
-10
28PR224-1
24931
. . .
ADAPTER,CABLE END (80009
No
1
103-0189-00)
010-6104-00 80009
.
.
LEAD,TEST,10X,1
meter
2
-11 206-0224-00
80009
.
.
. PROBE HEAD,1
meter,
blue
1
-12 206-0191-01 80009 ....
TIP,
PROBE, package
of 10
1
-13 175-1661-00 80009
. . .
CABLE, SPECIAL
PURPOSE
,
ELECTRICAL ,
39 ohm.
1
coax, 40. 72
long
-14
206-0244-00
80009 .
. .
COMPENSATION B0X,1
meter blue
1
-15
108-753-17 74970 . .
PROBE, TIP (80009 No.
134-0013-00) 3
-16
206-0105-00 80009 . . TIP,
PROBE
3
-17
103-0051-01
80009 . .
ADAPTER, PROBE
TIP
3
-18
344-0046-00
80009
. . CLIP,
ELECTRICAL,
alligator type, with
cover. 3
-19
013-0107-03
80009
. . TIP,
TEST PROD,
retainer hook
assembly
3
-20
175-0124-01
80009 . .
LEAD,
ELECTRICAL,
probe ground, 5
inches
3
long
200-2055-01
80009 .
COVER, SCOPE,
with hardware
1
-21
334-2661-00 80009 . .
PLATE,
IDENTIFICATION,
marked Tektronix
1
-22
5S10-8
71286
. .
FASTENER, PAWL
(80009 No.
214-0122-00) 1
-23
5S3-1
71286
. .
WASHER, RING,
0.
25
inch OD (80009 No
1
210-0907-00)
(AP)
-24
210-1105-00
80009
.
.
WASHER,FLAT,0. 188 ID X
0.375 inch OD,
1
nylon (AP)
-25
200-2056-00
80009 . .
LID,
ACCESSORY COVER
1
-26
5R2-1
71286 .
.
RECEPTACLE, FASTENER (80009 No
1
214-0127-00)
-27
210-0622-00
80009 . .
RIVET, SOLID (AP)
2
-28
386-3689-00
80009 . .
SUPPORT, COVER
1
-29
210-3068-00
80009 . .
RIVET,TUBULAR,0.
218
LX
0.125
OD,
truss
2
head,
brass (AP)
-30 348-0524-00
80009 .
. GASKET,
FRONT PANEL ,
silicone with PSA
back.
1
-31
CB-83314-CE
98003
.
. CATCH,
CLAMPING,
front cover (80009 No
2
105-0350-00)
-32
210-3067-00 80009
.
.
RIVET, TUBULAR,
0.
281
L
X
0.125 OD, truss....
4
-
head,
brass
(AP)
8-3
