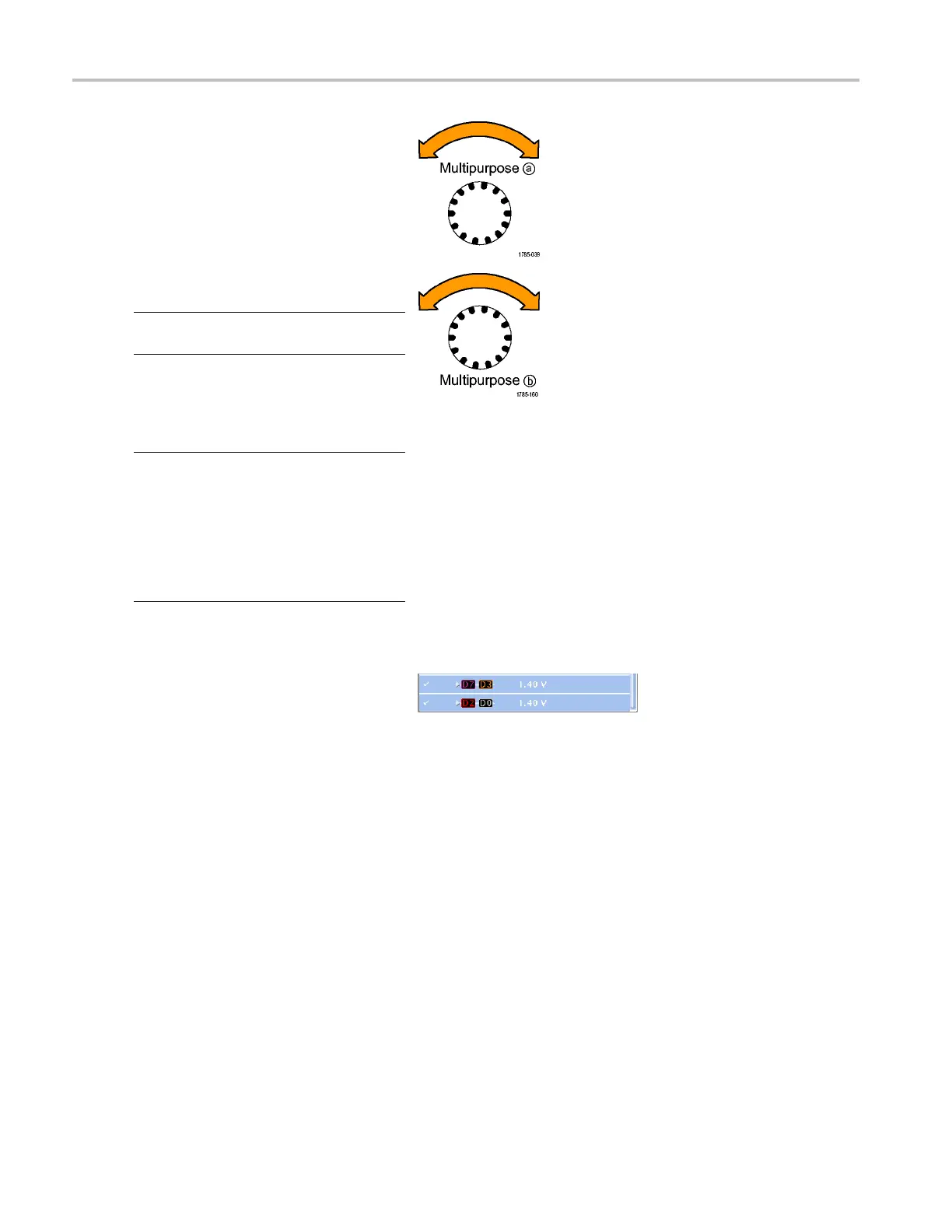

4. Turn multipurp
ose knob a to select the
channel to move.
5. Turn multipurpose knob b to move the
selected channel.
NOTE. The display of the channel (or group)
only moves after you stop rotating the knob.

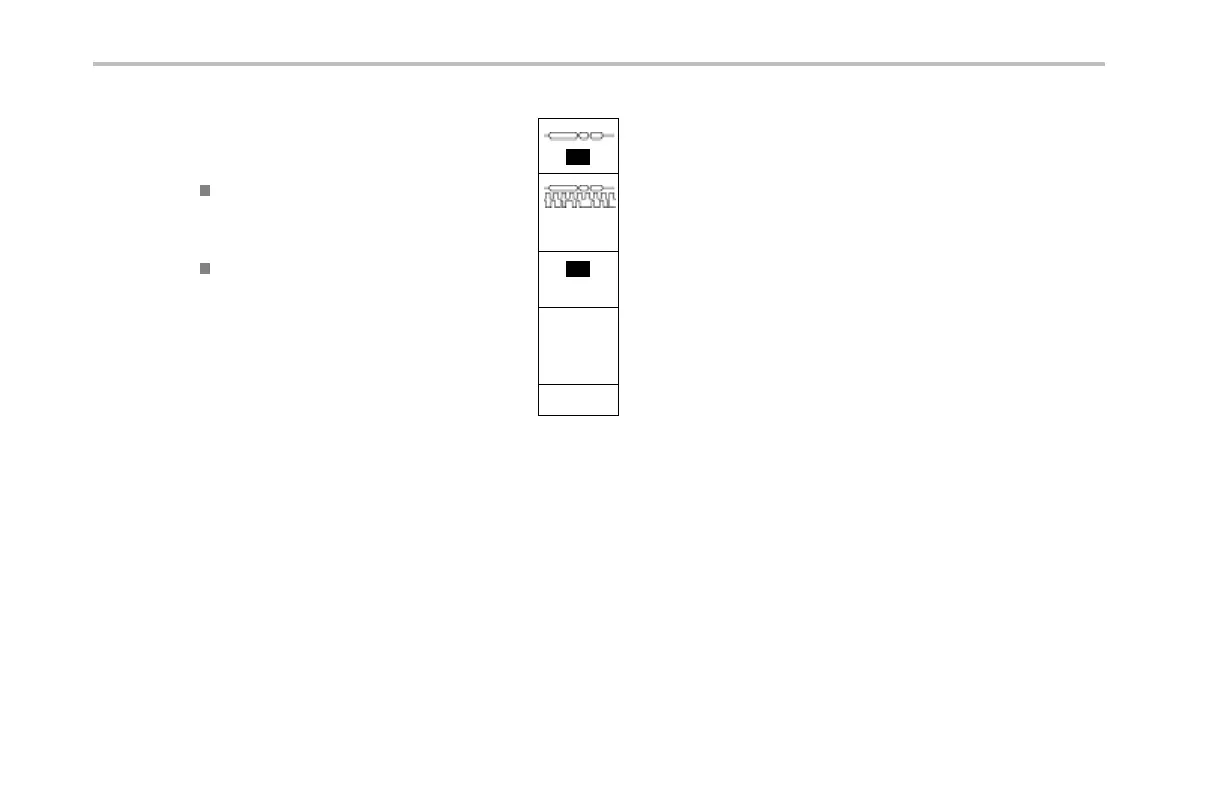

6. To change the scale (height) of the digital
channels, push Height on the lower menu.
NOTE. The S (Small) selection will display
each waveform at 0.2 divisions tall. The M
(Medium) selection will display each waveform
at 0.5 divisions tall. T he L (Large) selection will
display each waveform at 1 division tall. L only
works if there is enough room in the display to
display the waveforms. You can display up to 8L
waveforms at one time.
7. You can label individual digital channels for
easier identification. (See page 45, Labeling
Channels and Buses.)
8. To group some o r a ll of the digital channels
together, move the channels right next to
each other. All the channels that are next to
each other automatically form a group.
You can see the groups by pressing Select
on the side menu and turning m ultipurpose
knob a.
When a group is selected, turn multipurpose
knob b to move the whole group.
