Analyze Wavefor
mData
Amplitude Measurements (cont.)
Measurement Description
RMS The true R oot Mean Square voltage over the entire waveform or gated region.
Cycle RMS The true Root Mean Square voltage over the first cycle in the waveform or the first
cycle in the gated region.
Miscella
neous Measurements
Measurem
ent
Descript
ion
Rising Edge
Count
The numb
er of positive transitions from the low reference value to the high reference
value in the waveform or gated region.
Falling
Edge
Count
The number of negative transitions from the high reference value to the low reference
value in the waveform or gated region.

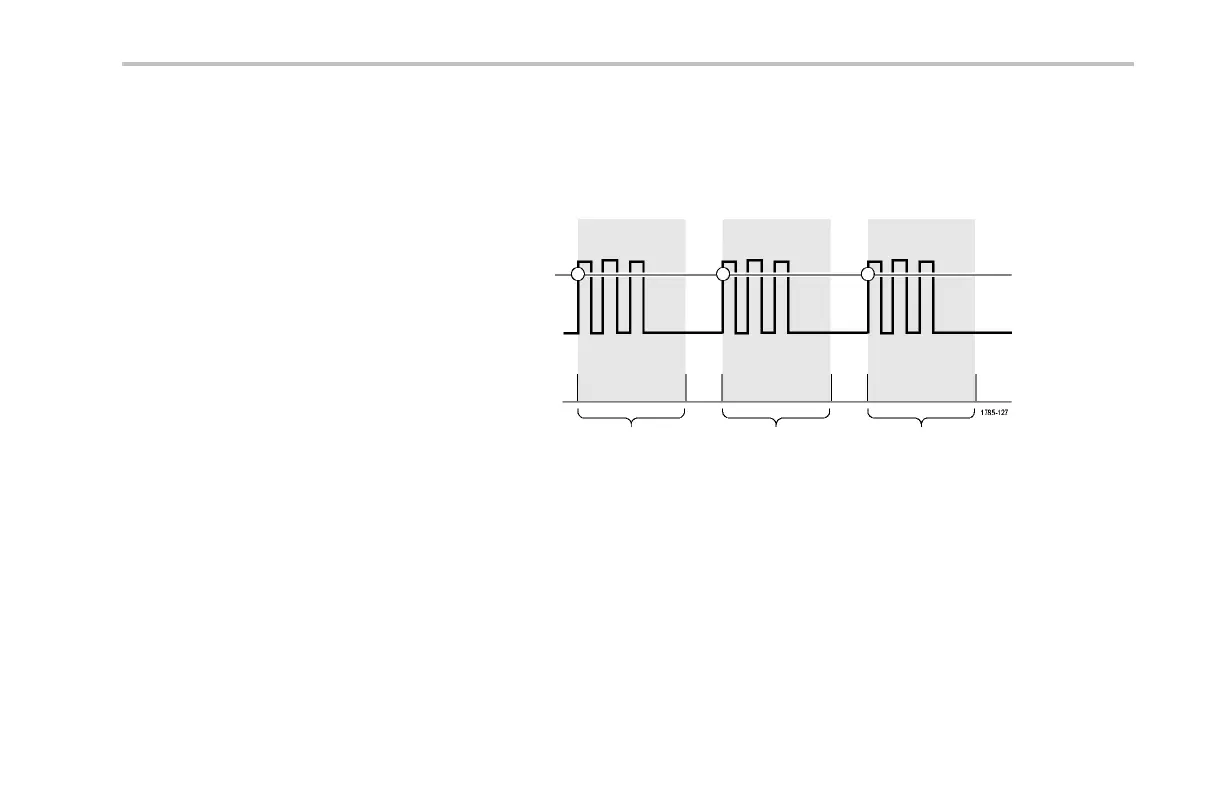

Positive Pulse
Count
The number of positive pulses that rise above the mid reference crossing in the waveform
or gat
ed region.
Negative Pulse
Count
The nu
mber of negative pulses that fall below the mid reference crossing in the waveform
or gated region.
Area Area
measurement is a voltage over time measurement. It returns the area over the
entire waveform or gated region in volt-seconds. Area measured above ground is
positive; area measured below ground is negative.
Cycle Area A voltage over time measurement. The measurement is the area over the first cycle
in t
he waveform or the first cycle in the gated region expressed in volt-seconds. The
area above the common reference point is positive, and the area below the common
reference point is negative.
MSO3000 and DPO 3000 Series Oscilloscopes User Manual 103
