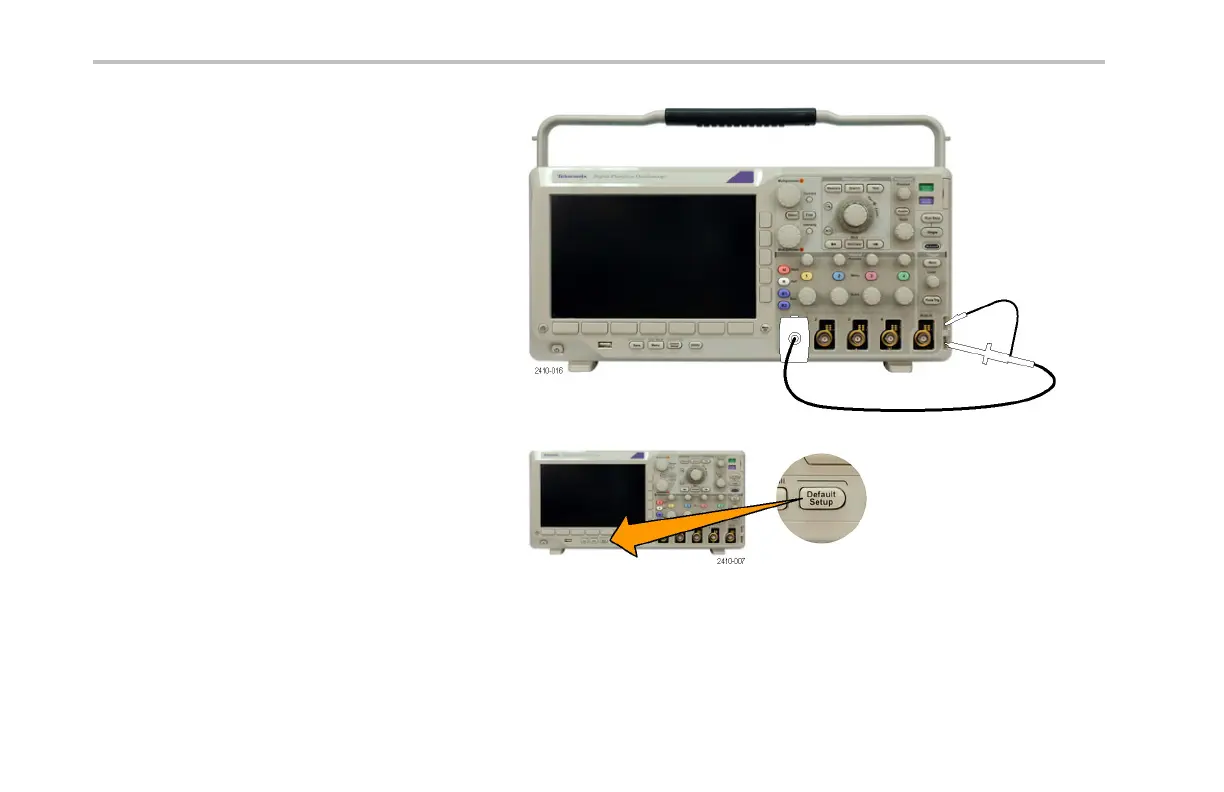

Installation
DPO3BW1T34 - upgrades bandwidth from 100 MHz to 300 MHz for 4 channel models
DPO3BW1T54 - upgrades bandwidth from 100 MHz to 500 MHz for 4 channel models
DPO3BW3T54 - upgrades bandwidth from 300 MHz to 500 MHz for 4 channel models
To enable the upgrade, you will need to order a bandwidth upgrade product. Then, depending upon the serial number
of your instru
ment, you will either need to send your instrument to a Tektronix service center, or install an option key
on your instrument (see below).
To determine the serial number of your instrument, push Utility, and then push About. The serial number is located on
the resulting screen.
If the serial number of your instrument starts with C01, you will need to send your instrument to a Tektronix service center
to enable th
e bandwidth upgrade. Arrangements for the service upgrade are made at the time an order is placed.
If the seria
l number of your instrument starts with C02, you may upgrade the bandwidth by installing a fixed license
option key on your instrument.
To upgrade bandwidth by installing an option key on your instrument,
1. Once you have placed an order for the
appropri
ate bandwidth upgrade product, you
should receive an Option Key Certificate.
with the option key number.
2. Push Uti
lity.
3. On the l
ower menu, push Utility Page and
select Config.
Utility Page
Config
4. Push M
anage Modules & O ptions.
Manage
Modul
es &
Options
5. On th
e side menu, push License Type until
Options is highlighted.
License
Type
Modules
Options
14 MSO3000 and DP O3000 Series Oscilloscopes User Manual
