Acquire the Sign
al
Acquisition
Mode
Sample
Peak
Detect
Hi Res
Envelope

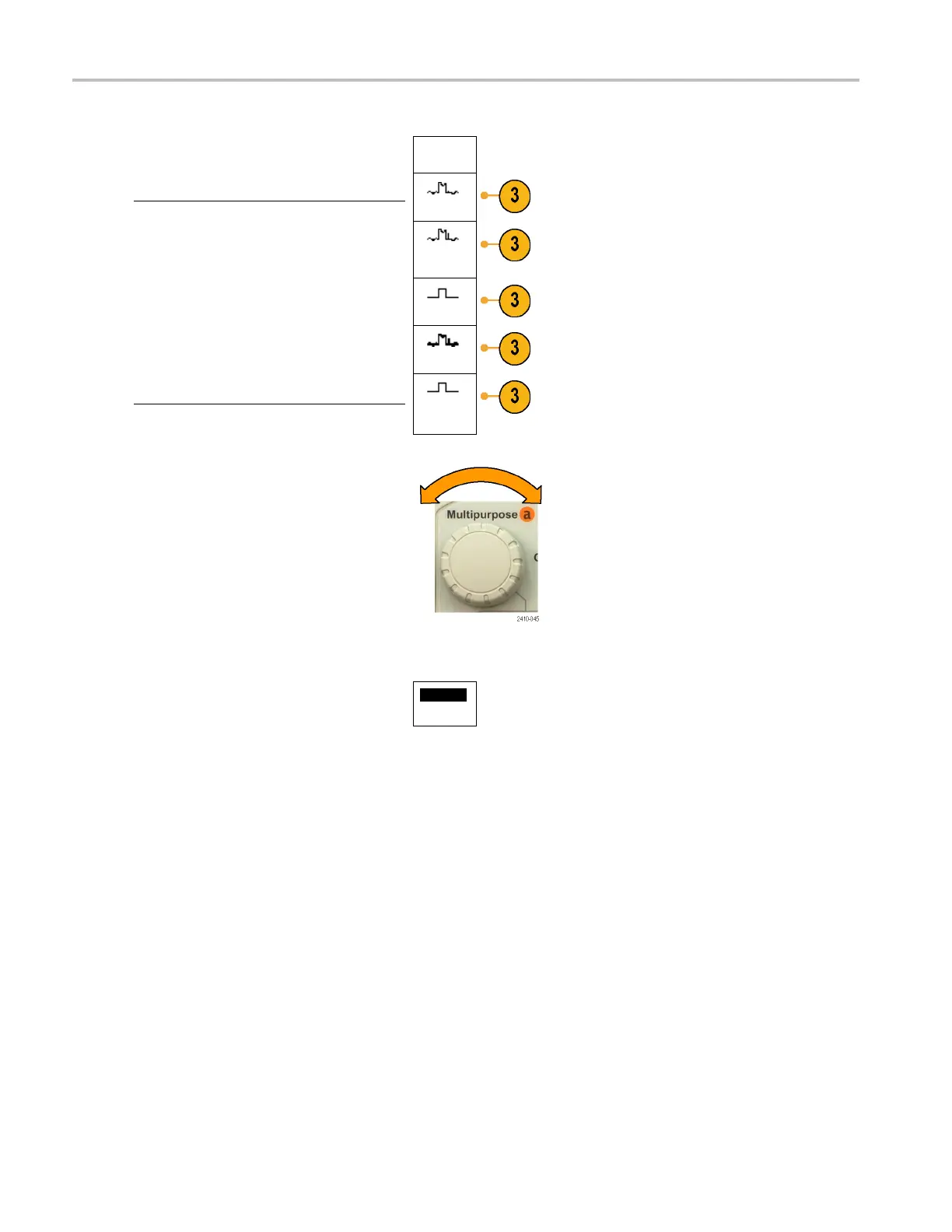

3. Then choose th
e acquisition mode on the
side menu. You can chose from: Sample,
Peak Detect, Hi Res, Envelope, or Average.
NOTE. Peak Det
ect and Hi Res modes
take advantage of sample points that the
oscilloscope would have d iscarded at lower
sweep speeds
. Therefore, these modes only
work when the current sample rate is less than
the maximum possible sample rate. As soon
as the oscil
loscope starts to acquire at the
maximum sample rate, then the Peak Detect,
Hi Res and Sample modes all look the same.
You can con
trol the sample rate by setting the
Horizontal scale and the Record Length.
Average
16
4. If you chos
e Average, turn multipurpose
knob a to set the number of waveforms to
average over.
5. Push Record Length.
6. Push th
e record length button on the side
menu.
10k po
ints
Choose
among: 1000, 10 k, 100 k, 1 M, and
5Mpoints.
52 MSO3000 and DP O3000 Series Oscilloscopes User Manual
