Trigger Setup
Select the method for sequencing the B
trigger after the A by pushing a side menu
button.
Time
(a) 8 ns
B Events
1
Set to
Minimum
5. Set the other Sequence Trigger parameters
in the relat
ed side and lower menus.

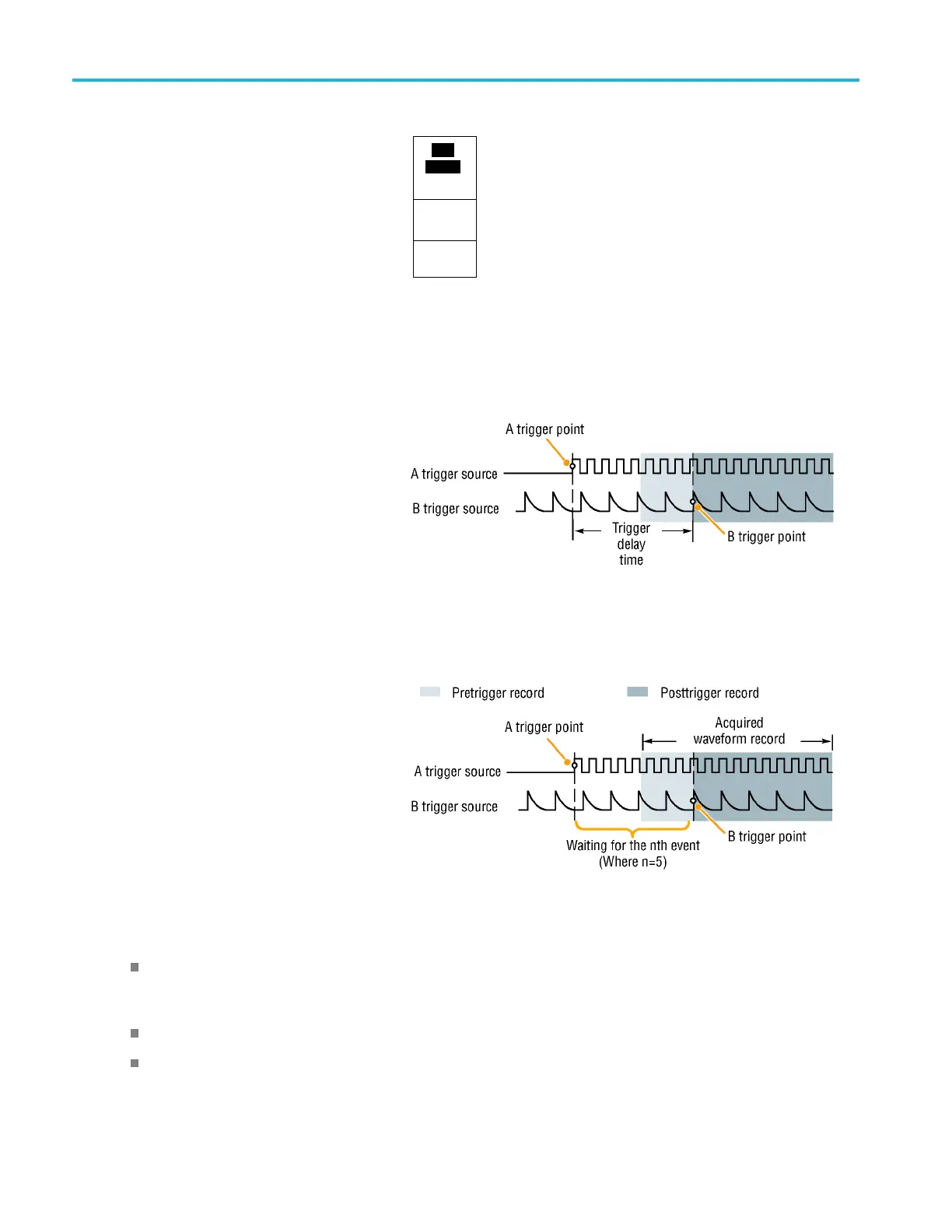

B Trigger A
fter Delay Time
The A trigger arms the instrument.
Posttrigger acquisition starts on the first B
edge after the trigger delay time.
Trigger on B Events
The A trigger arms the instrument.
Posttrigger acquisition starts on the nth B
event.
Quick Tips
B-trigger delay time and horizontal position are independent functions. When you establish a trigger condition using
either the A trigger alone or the A and B triggers together, you can also use the horizontal position control to delay the
acquisition by an additional amount.
After establishing an A/B trigger, if you change the trigger level for A, the trigger level for B also changes.
When using the B trigger, the A and B trigger types can only be Edge.
88 MSO4000B and DPO 4000B Series Oscilloscopes User Manual
