Application Exa
mples
4. Calculate the amplifier gain using the
following equations:
Gain = (output
amplitude ÷ input amplitude)
= (3.155 V ÷ 130.0 mV) = 24.27
Gain (dB) = 20 x log(24.27) = 27.7 dB
Customizin
g Yo ur Measurements

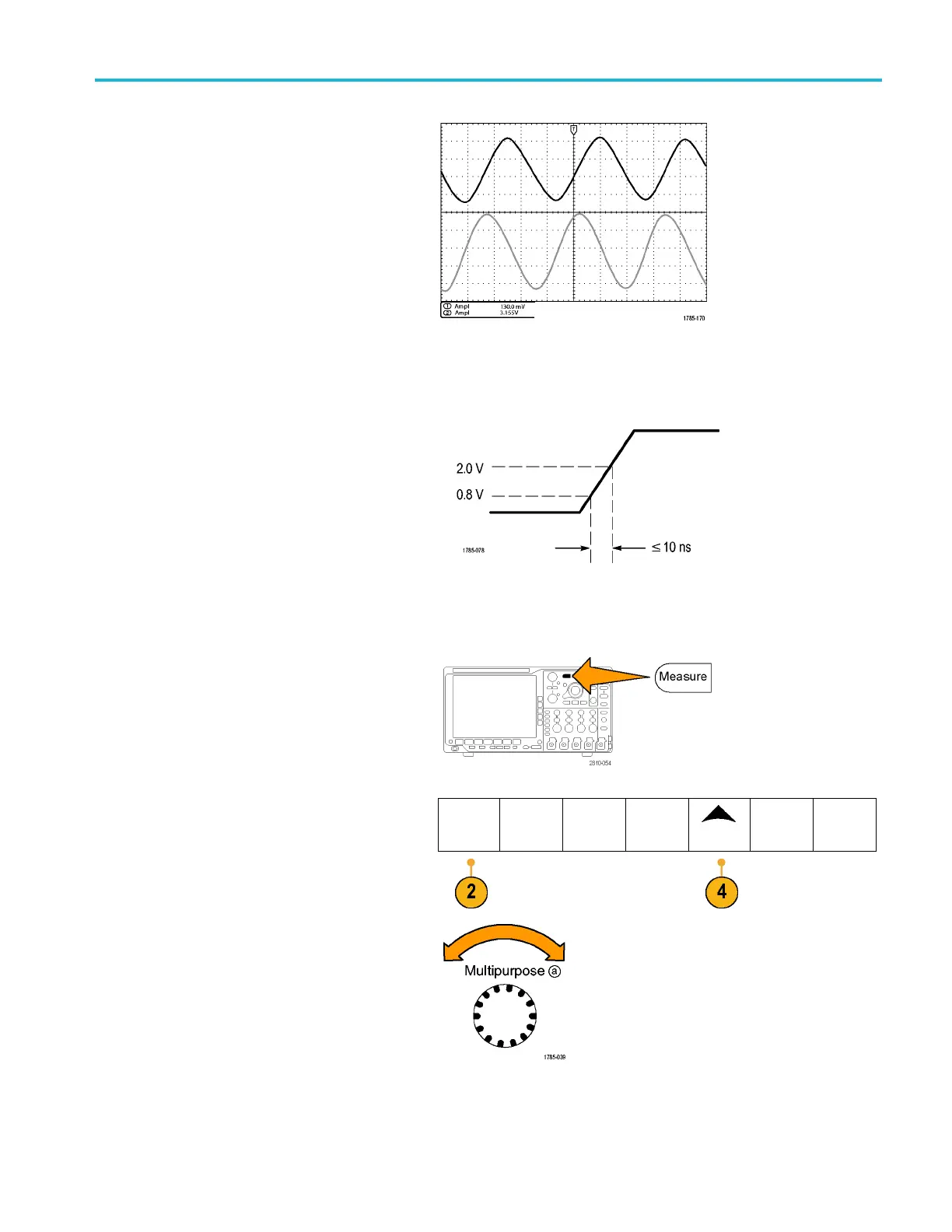

In this example, you want to verify that the
incoming signal to digital equipment meets
its specifications. Specifically, the trans ition
time from a low logic level (0.8 V) to a high
logic level (2.0 V) must be 10 ns or less.
To select the Rise Time measurement:
1. Push Measure.
2. Push Add Measurement.
Add Mea-
surement
Remove
Measure-
ment
Indicators
Waveform
His-
tograms
More
Bring
Cursors
On Screen
3. If needed, from the side menu, push Source
and turn multipurpose knob a to select the
channel from which you want to measure.
Turn multipurpose knob b to select the
Rise Time measurement. Push OK Add
Measurement from the side menu.
MSO4000B and DP O4000B Series Oscilloscopes User Manual 167
