Display Wavefor
mData
3. Turn multipur
pose knob a and select
Display.
Display
4. Push Backlight Intensity.
Utility
Page
Display
Backlight
Intensity
High
Graticule
Full
Screen
Annotation
5. Select the intensity level from the resulting
side menu. Choices are: High, Medium,
and Low.
Backlight
Intensity
High
Med
Low
Settin
g Waveform Intensity

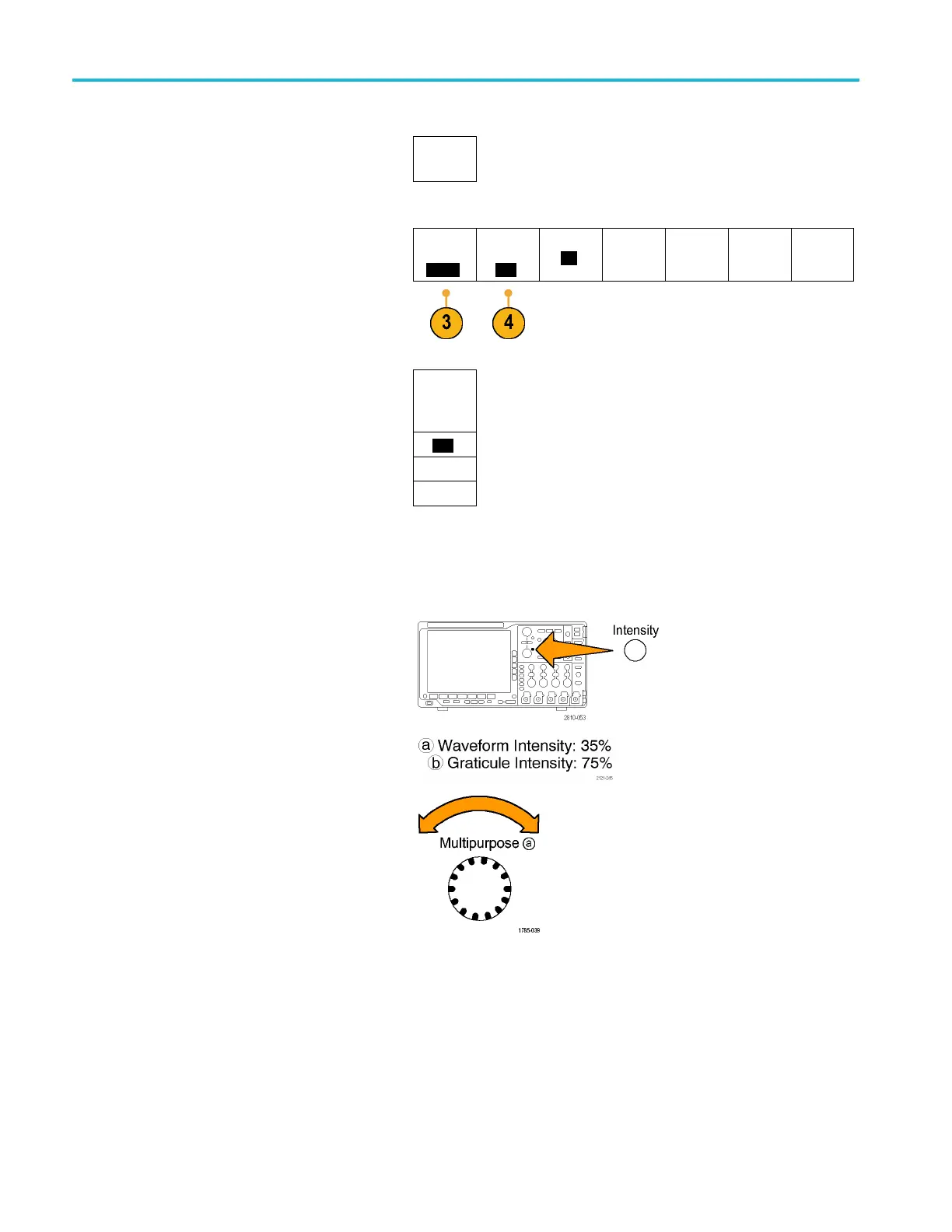

1. Push Intensity on the front panel.
This will show the intensity readout on the
display.
2. Rotat
e multipurpose knob a to select the
desired waveform intensity.
3. Rotate multipurpose knob b to select the
desired intensity for the graticule.
94 MSO4000B and DPO 4000B Series Oscilloscopes User Manual
