Display Wavefor
mData

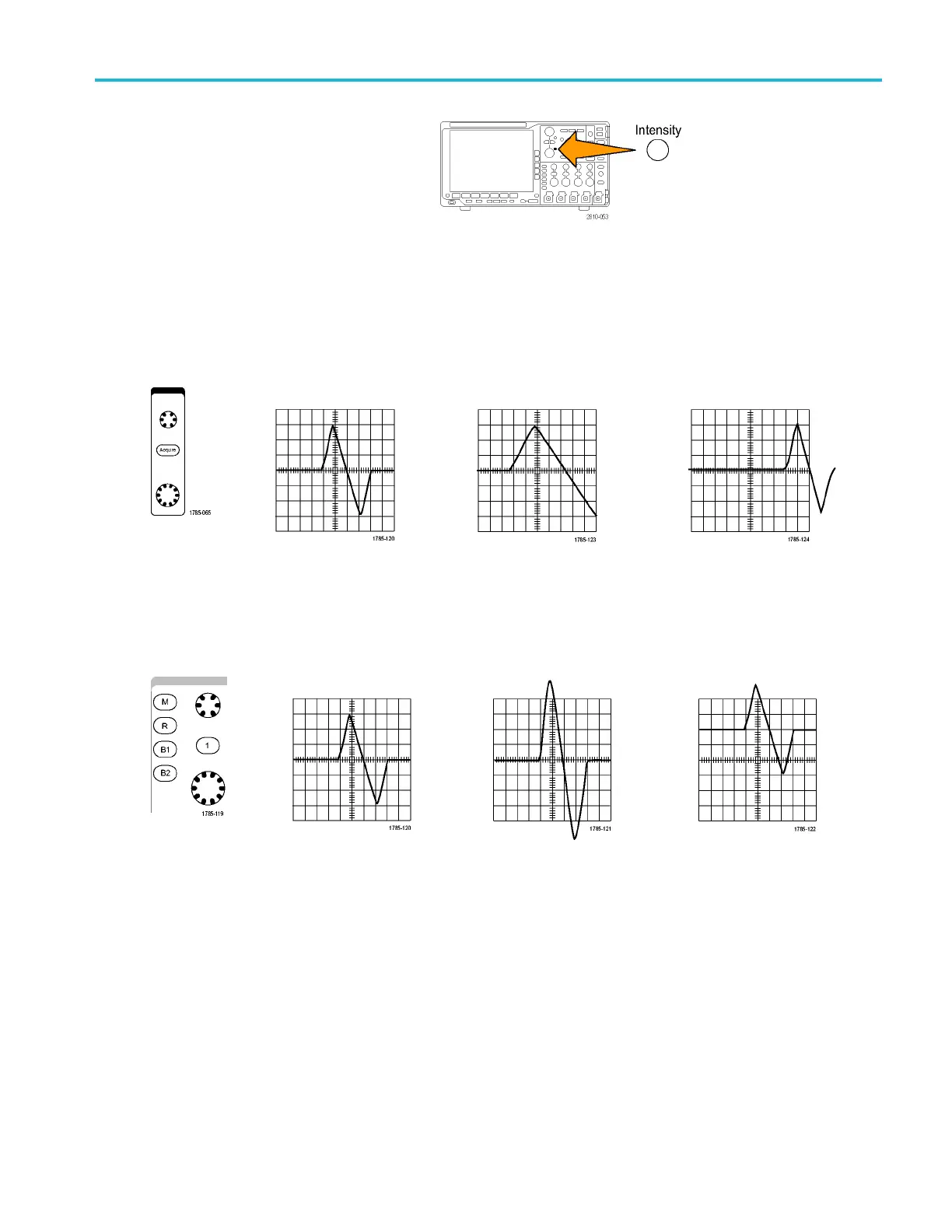

4. Push Intens ity
again to clear the intensity
readout from the display.
Scaling a nd P
ositioning a Waveform
Use the horizontal controls to adjust the time base, adjust the trigger point, and to examine waveform details more closely.
You can also use the Wave Inspector Pan and Zoom controls to adjust the display of waveforms. (See page 127, Using
Wave Inspector to Manage Long Record Length Waveforms.)
Original waveform Scaled horizontally Positioned horizontally
Use the vertical controls to select waveforms, adjust the waveform vertical position and scale, and set input parameters.
Push a channel menu button (1, 2, 3,or4), button as many times as needed and the a ssociated menu items to select,
add, or remove a waveform.
Original waveform Scaled vertically Positioned vertically
MSO4000B and DP O4000B Series Oscilloscopes User Manual 95
