Application Exa
mples
Analyzing Signal Detail
In this example, you have a noisy signal
displayed on t
he oscilloscope, and you need
to know more about it. You suspect that the
signal contains much more detail than you
can currentl
y see in the display.
Looking at a N oisy Signal

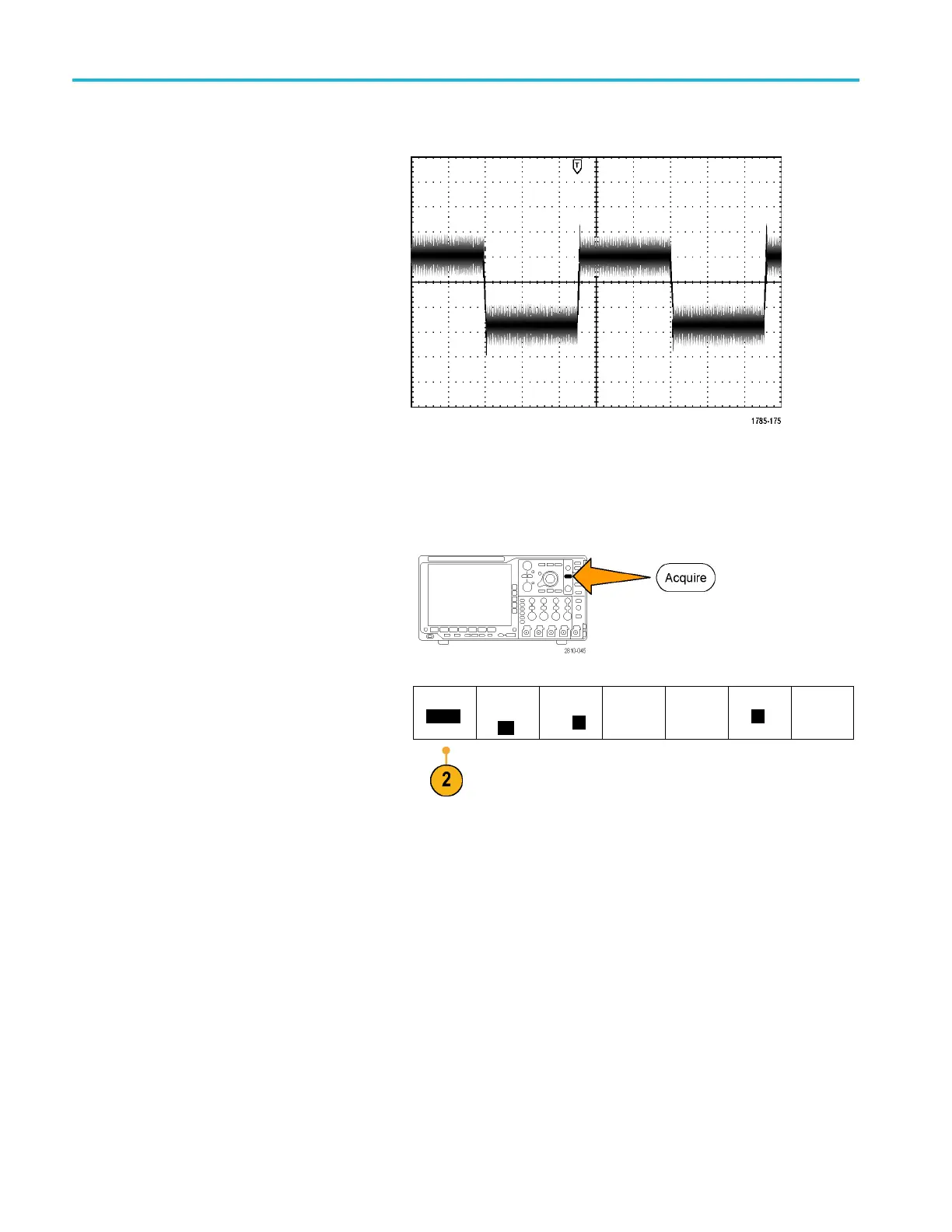

The signal appears noisy. You suspect that noise is causing problems in y our circuit. To better analyze the noise:
1. Push Acquire.
2. Push Mode on the lower menu.
Mode
Sample
Record
Length
10k
Delay
On |
Off
Set Horiz.
Position to
10%
Waveform
Display
XY Display
Off
170 MSO4000B and DPO 4000B Series Oscilloscopes User Manual
