Acquire the Sign
al
2. If you change your mind, push Undo
Default Setup to undo the last default
setup.
Undo
Default
Setup
Using Autose
t
Autoset adjusts the instrument (acquisition, horizontal, trigger, and vertical controls) such that it displays four or five waveform
cycles for analog channels with the trigger near the midlevel, and ten cycles for digital channels.
Autoset works with both the analog and digital channels. Autoset works with signals that are greater than 45 Hz.

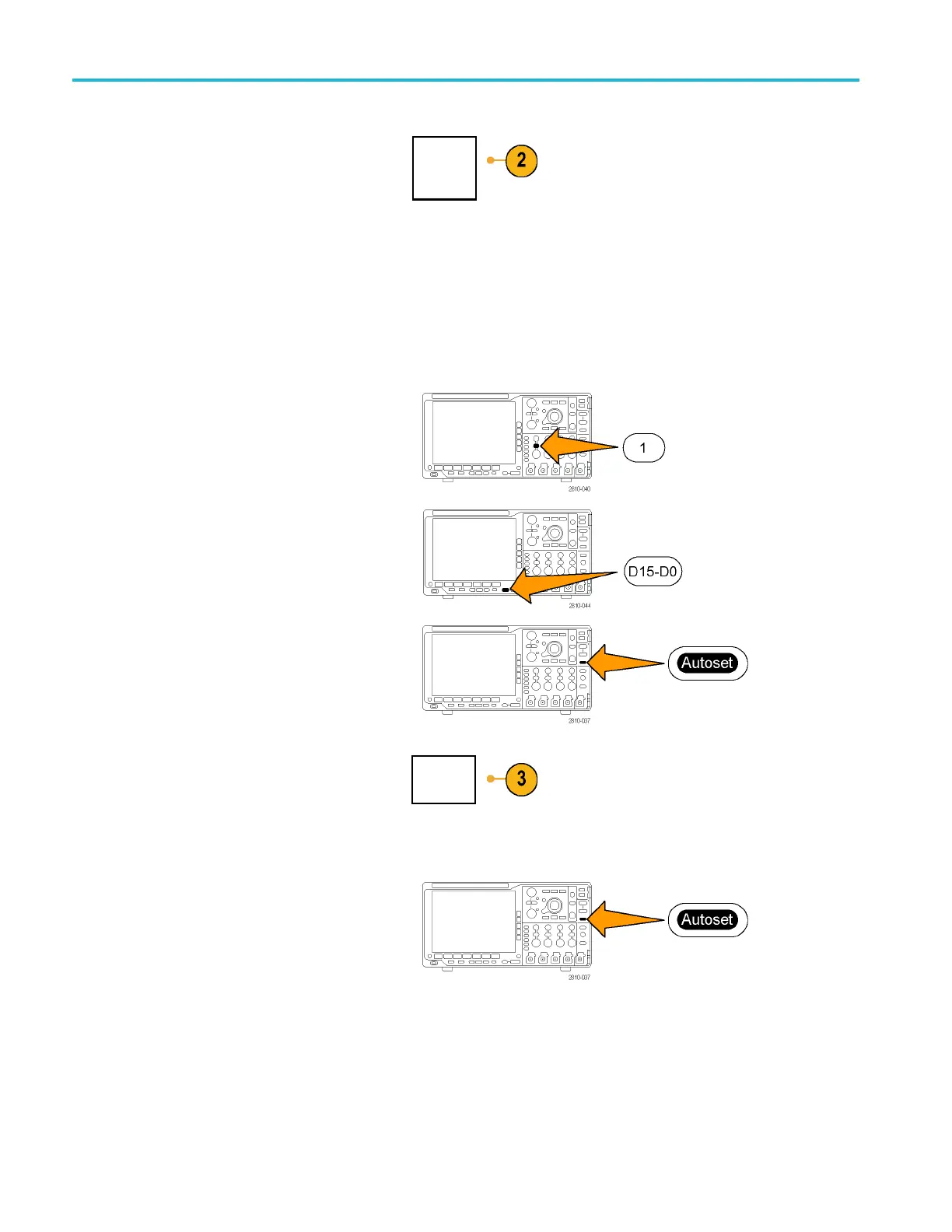

1. To autoset an analog channel, connect the
analog probe, and then select the input
channel. (See page 46, Setting Up Analog
Channels.)
To autoset a digital channel, connect
the logic probe and select the input
channel. (See page 72, Setting Up Digital
Channels.)
2. Push Autoset to execute an Autoset.
3. If desired, push Undo Autoset to undo
the last Autoset.
Undo
Autoset
You c an also disable the Autoset function. To disable or enable the Autoset function:
1. Push and hold Autoset.
50 MSO4000B and DPO 4000B Series Oscilloscopes User Manual
