Tektronix MSO4000B Series - Appendix C: P6616 General-Purpose Logic Probe Information; Product Description; Connecting the Probe to the Oscilloscope

Appendix C : P661
6 General-Purpose Logic P robe Information
Appendix C: P6
616 General-Purpose Logic Probe Information

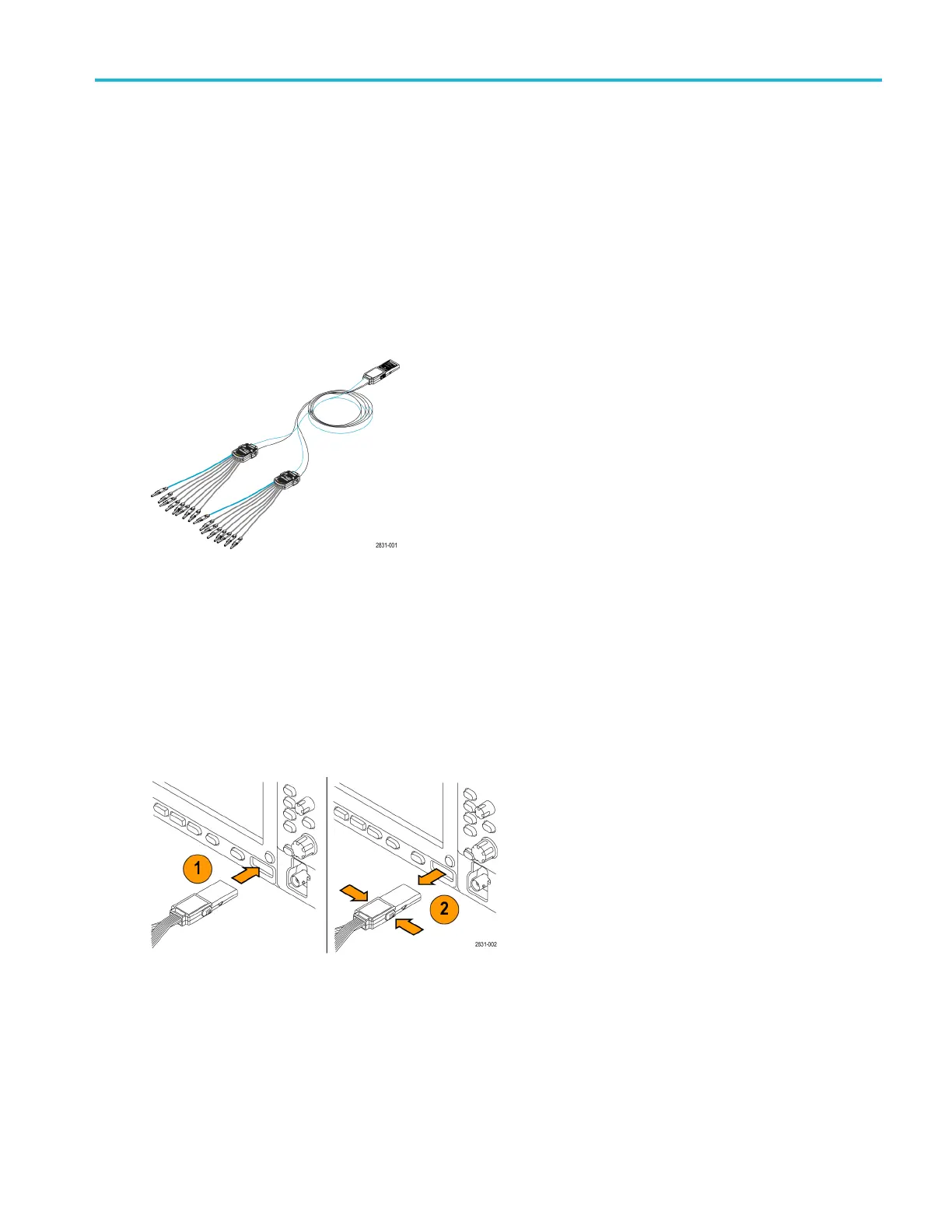

Product Description
The P6616 general-purpose logic probe connects the Tektronix MSO4000B Series of mix ed-signal oscilloscopes to digital
buses and signals on your target system. The probe contains 16 data channels split between two lead sets (GROUP
1 and GROUP 2).
The fi rst lead in each set is identified by blue insulation, and the remaining seven leads are gray. All leads include a
ground connection at the tip. You can connect the probe leads separately to the target system, or group the leads together
using the probe tip holders.
Connecting the Probe to the Oscilloscope
Connect the probe as shown in the illustration below.
1. Insert the probe label-side up into the connector on the oscilloscope.
2. To remove the probe, squeeze the buttons on the side and pull out the probe.
MSO4000B and DP O4000B Series Oscilloscopes User Manual 199
