Tektronix MSO4000B Series User Manual

Appendix B: T PP0
500B and TPP1000 500 MHz and 1 GHz 10X Passive Probes Information
Specifications
Table 6: Electrical and mechanical specifications
Characteristic TPP0500B TPP1000
Bandwidth (–3 dB)
500 MHz
1GHz
System rise time (typical)
<350 ps <700 ps
System input capacitance Rigid tip: 3.9 pF ±0.3 pf
Pogo pin tip
: 5.1 pf ±0.5 pf
System att
enuation accuracy
10:1 ±2.2%
Probe ser
ies resistance @DC
9.75 MΩ ±0
.5%
System in
put resistance @DC
10 MΩ ±2%
Propagation delay ~5.67 ns
Maximum input voltage
300 V
RMS
CAT II
Cable length
1.3 m, ±3 cm

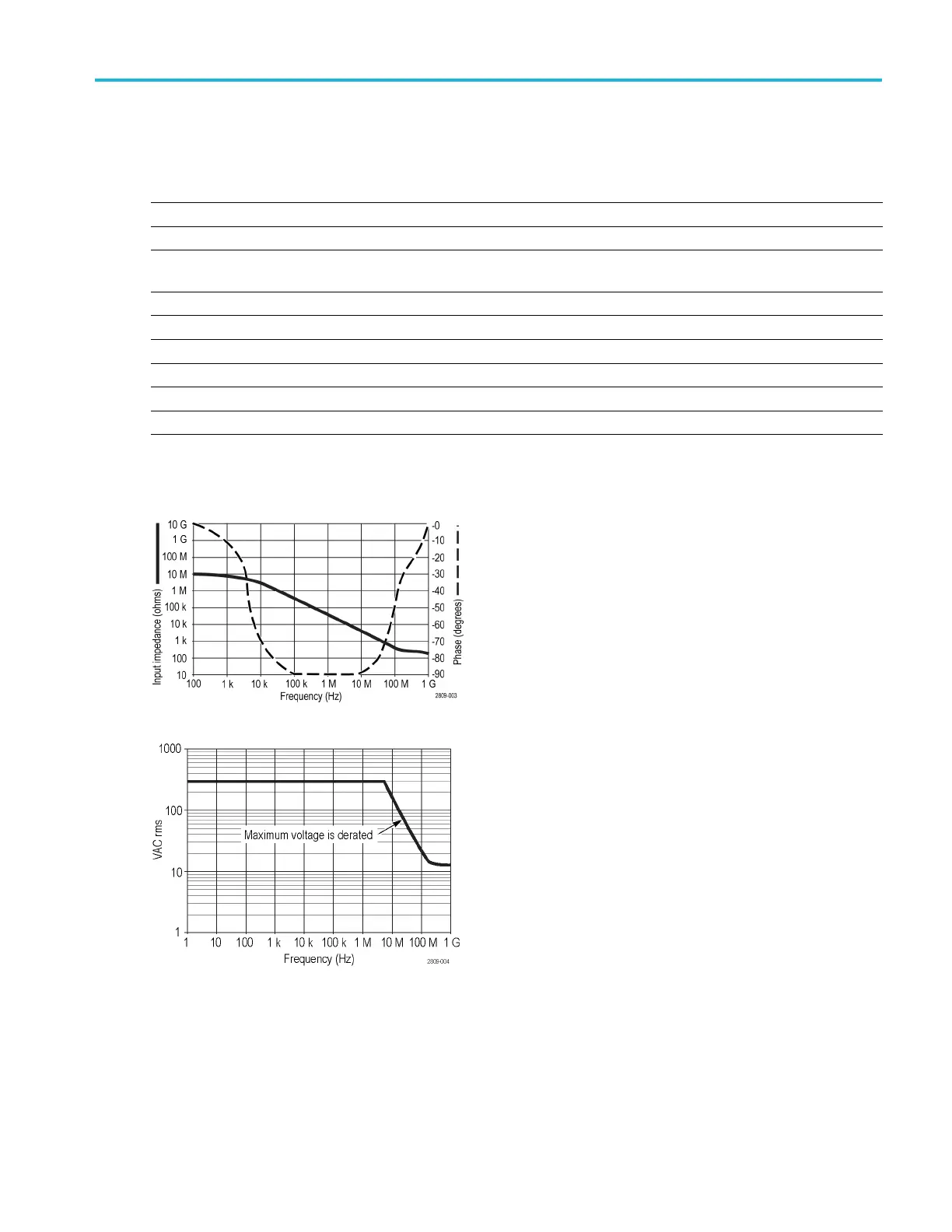

Performance Graphs
MSO4000B and DP O4000B Series Oscilloscopes User Manual 195
