Display Wavefor
mData
7. To display the amplitude from one
waveform against the amplitude
from another,
push XY Display.
Then push Triggered XY from
the side m enu.
A data point f
rom the firs t
waveform specifies the horizontal
location while the corresponding
data point fr
om the s econd
waveform specifies the vertical
location for each displayed point.
Quick Tips
Variable persistence accumula tes record points for a specified time interval. E ach record point decays independently
according to the time interval. U se variable persistence for displaying infrequently appearing signal anomalies, such
as glitches.
Infinite persistence continuously accumulates record points until you change one of the acquisition display settings. Use
infinite persistence for displaying unique signal anomalies, such as glitches.
The XY D isplay mode graphs the data in fixed pairs of waveforms against one another.
When the XY Display is on, an upper window appears that displays data versus time.
Setting the Graticule Style

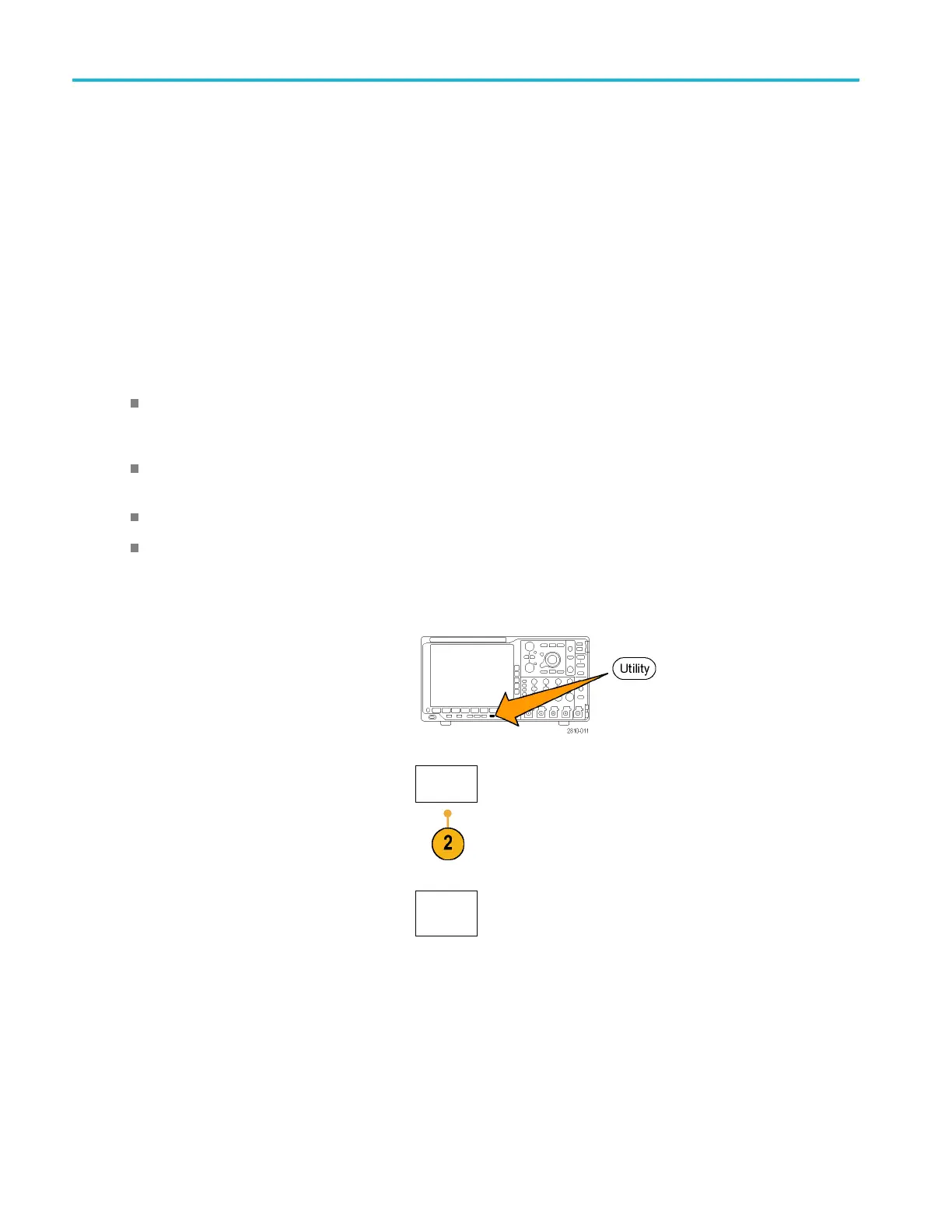

1. To set the graticule style, push U tility.
2. Push Utility P age.
Utility
Page
3. Turn multipurpose knob a and select
Display.
Display
92 MSO4000B and DPO 4000B Series Oscilloscopes User Manual
