This section describes concepts of and procedures for setting up the oscilloscope to acquire the signal as you want it to.
Setting Up Analog Channels
Use front panel buttons and knobs to set up your instrument to acquire signals using the analog channels.

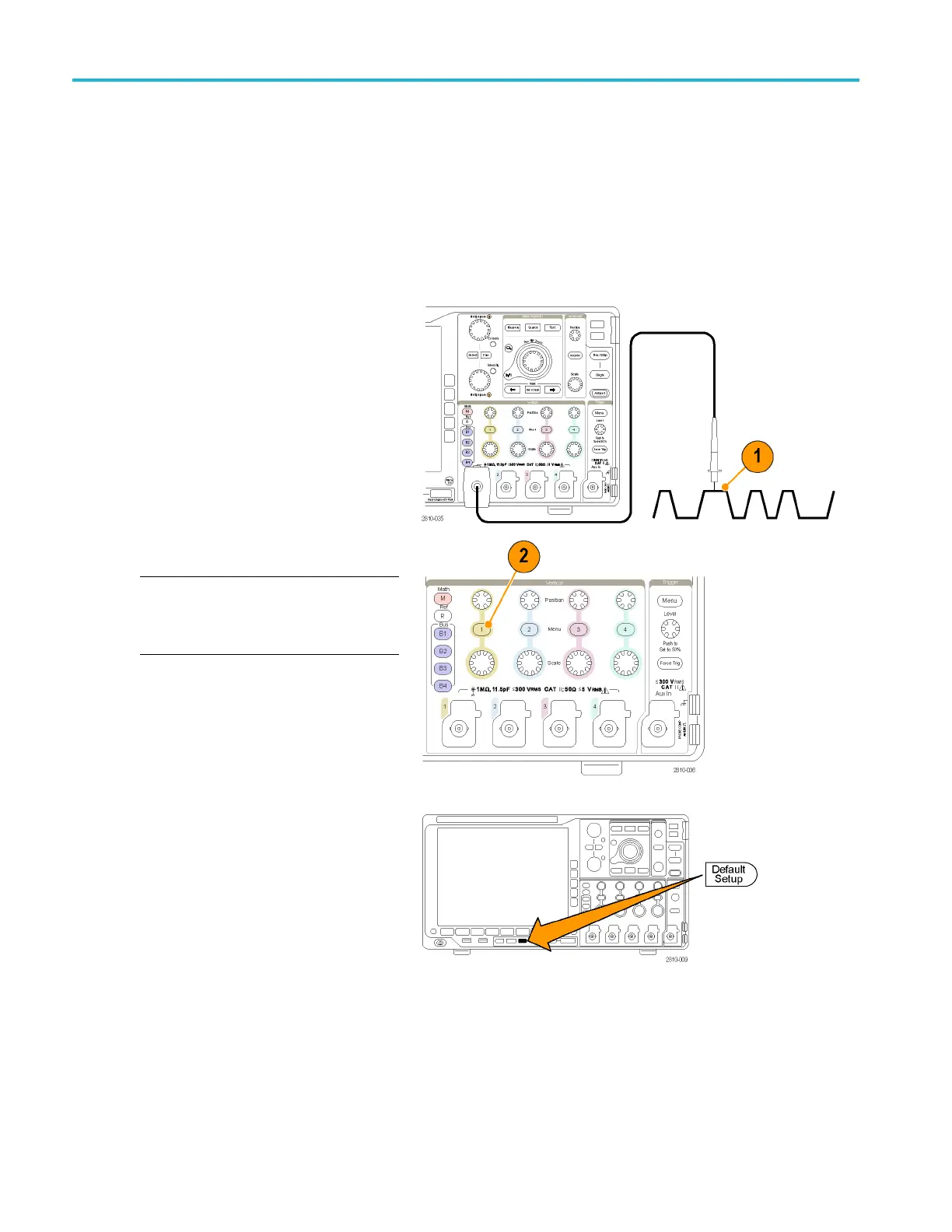

1. Connect the TPP0500B/TPP1000 or VPI
probe to the
input signal source.
2. Select the input channel by pushing the
front panel buttons.
NOTE. If
you are using a probe that does not
supply probe encoding, set the attenuation
(probe factor) on the oscilloscope vertical
menu for
the channel to match the probe.
3. Push Default Setup.
46 MSO4000B and DPO 4000B Series Oscilloscopes User Manual
