Save and Recall I
nformation

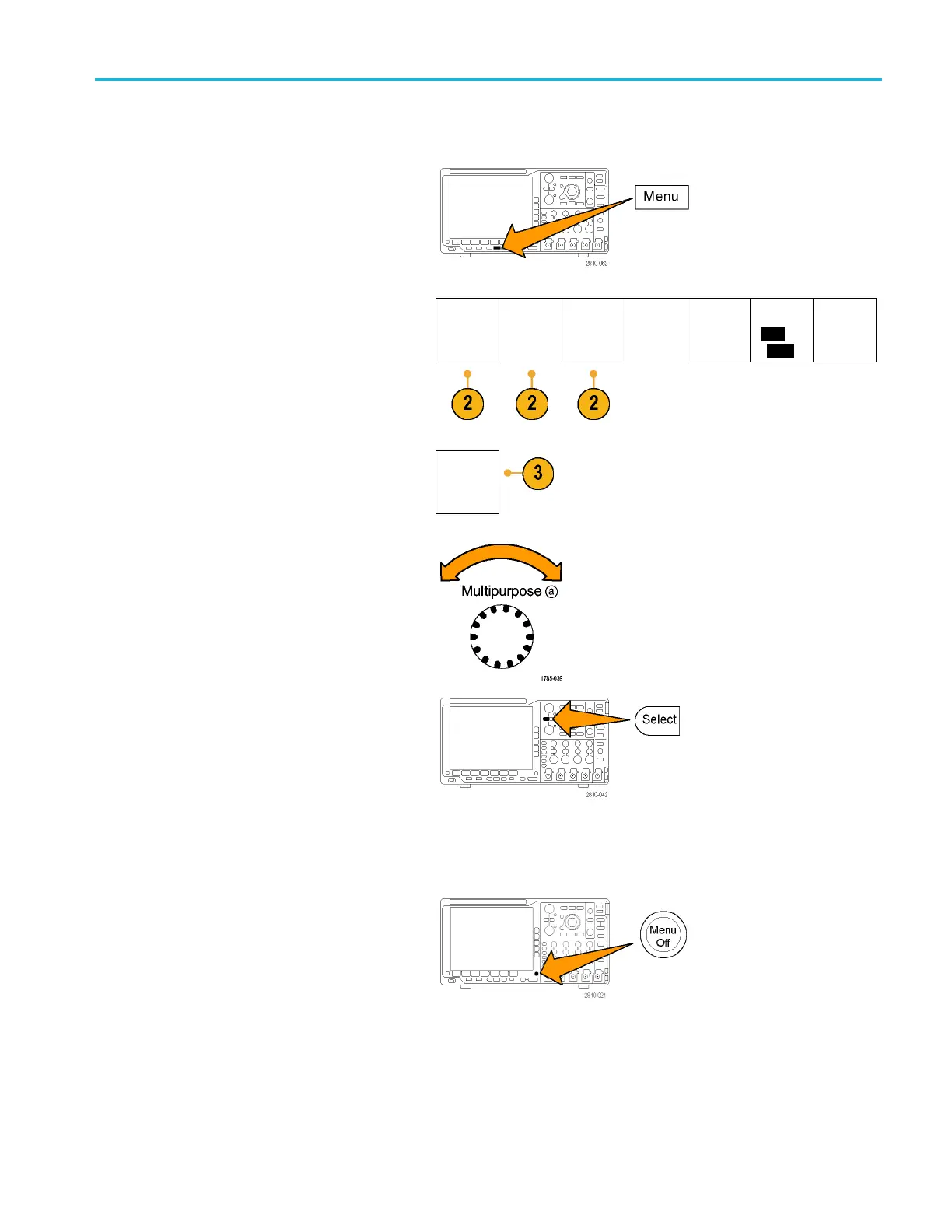

Editing file, directory, reference waveform, or instrument setup names. Give files descriptive names that you can
recognize at a l
ater date. To edit file names, directory names, reference waveform and instrument setup labels:
1. Push Save / R ecall Menu.
2. Push Save S cr
een Image, Save Waveform,
or Save Setup.
Save
Screen
Save
Waveform
Save
Setup
Recall
Waveform
Recall
Setup
Assign
Save|to
Setup
File
Utilities
3. For w aveform or setup files, enter the file
manager by pushing the appropriate side
menu butt
on.
To File
4. Turn multipurpose knob a to scroll through
the file structure. (See page 140, External
file stru
cture.)
5. Push S elect to open or close file folders.
6. Push Edit File Name.
Edit the file name the same way you edit
labels for c hannels. (See page 47, Labeling
Channels and Buses.)
7. Push the Menu Off button to cancel the
save operation, or push OK Save on the
side menu to complete the operation.
MSO4000B and DP O4000B Series Oscilloscopes User Manual 141
