Tektronix MSO4000B Series User Manual

Acquire the Sign
al

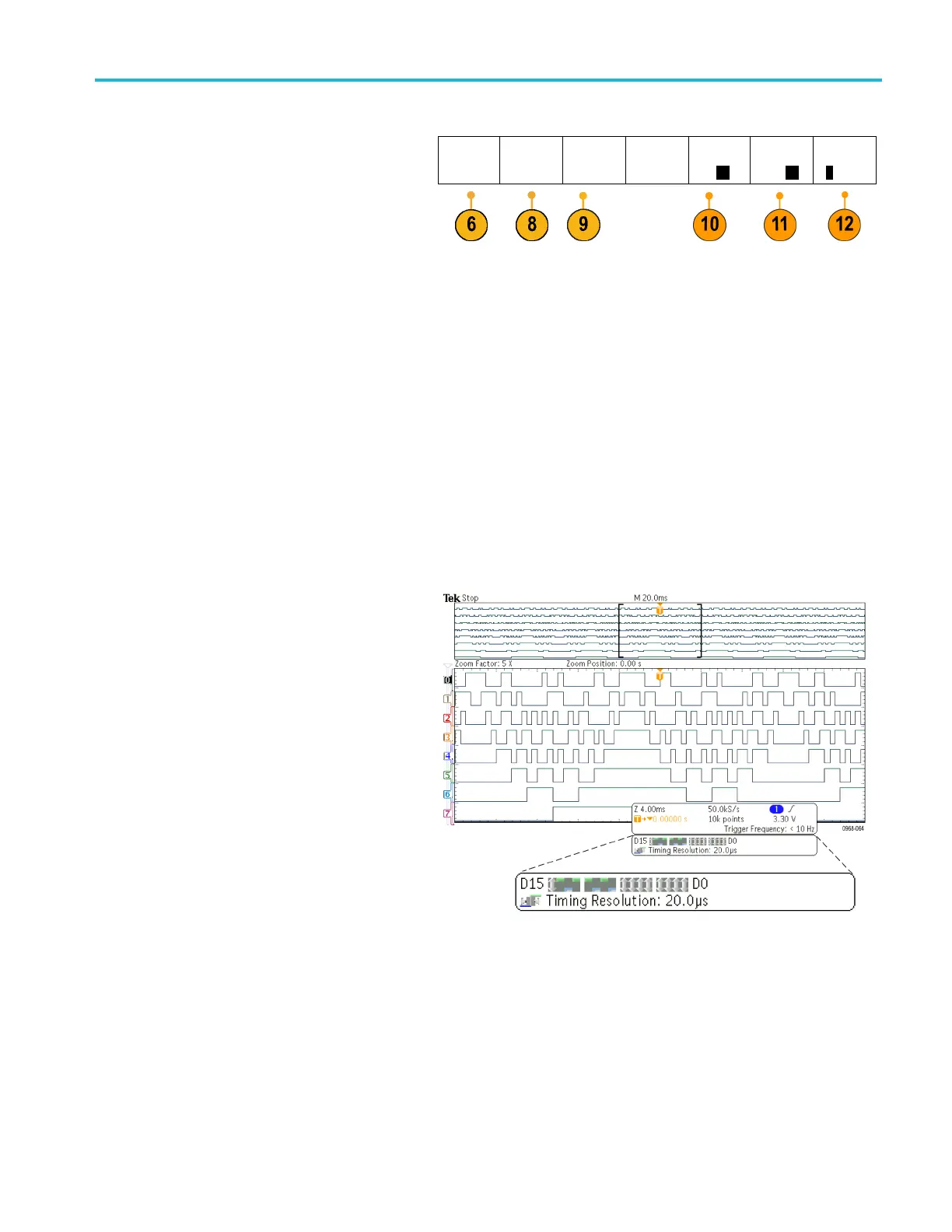

6. Push D15 - D0 on
the lower menu to access
the D15 - D0 On or Off menu.
D15–D0
On/Off
Thresholds Edit Labels Monitor
On
Off
MagniVu
On |Off
Height
S |ML
7. Turn multipu
rpose knob a to scroll through
the list of digital channels. Turn multipurpose
knob b to position the selected channel.
As you posit
ion channels close to each other
on the display, the oscilloscope groups the
channels, and adds the group to the pop-up
list. You c
an select the group from the list to
move all the channels in the group instead of
individual channels.
8. Push Thre
sholds on the l ower menu. You
can assign a different threshold value to
each channel.
9. Push Edit
Labels on the lower menu and
create the label. You can create labels
through the front panel or with an optional
USB keyb
oard. (See page 47, Labeling
Channels and Buses.)
10. Push Monitor to show the activity on digital
channe
ls at a glance.
11. Push MagniVu on the lower menu to
increase the timing resolution. (See page 74,
Wh
en and Why to Turn On MagniVu.)
MSO4000B and DP O4000B Series Oscilloscopes User Manual 73
