Tektronix TG8000 User Manual

AVG7 Analog Video Generator module
AVG7 module
CIRCLE submenu
Usethismenuto
overlay a circle on the output test signal and to set its position on
the display. Use the up (▲)ordown(▼) arrow button to scroll through the menu.
The following figure shows the CIRCLE submenu.

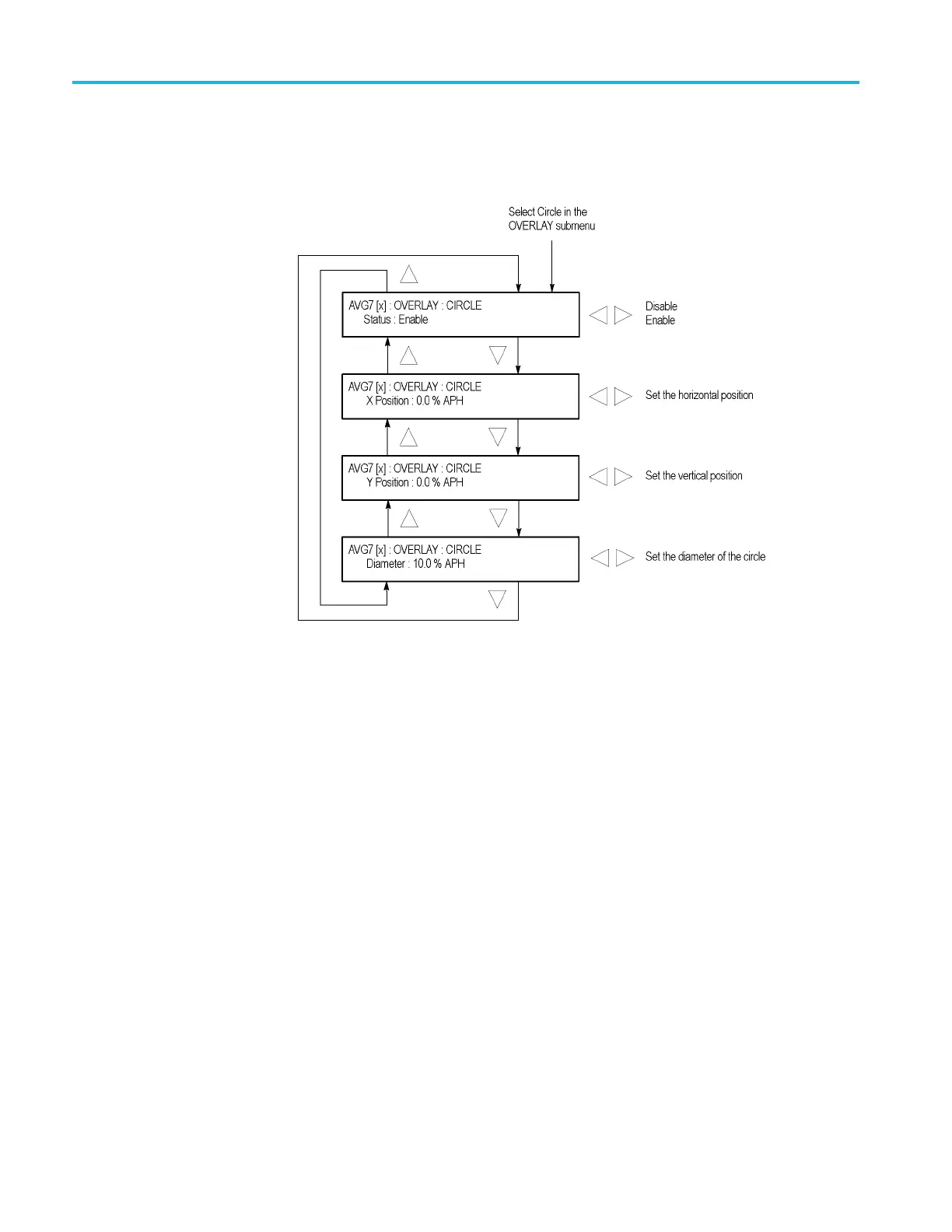

Figure 3-22: AVG7 module CIRCLE submenu
Status. Enables or disables the circle overlay. Use the left (◄)orright(►)
arrow button to select between Enable and Disable. Press the ENTER button to
confirm the selection.
X position. Sets the horizontal position of the circle. The position is set as a
per
centage of active picture width. Use the left (◄)orright(►) arrow button to
change the position. You can set the value from -50.0% to 50.0% in 1% steps.
Y position. Sets the vertical position of the circle. The position is set as a
percentage of active picture height. Use the left (◄)orright(►) arrow button to
change the position. You can set the value from -50.0% to 50.0% in 1% steps.
Diameter. Sets the diameter of the circle. The diamete r is set as a percentage of
active picture height. Use the left (◄)orright(►) arrow button to change the
value. You can set the value from 0.0% to 100.0% in 1% steps.
3–42 TG8000 Multiformat Test Signal Generator User Manual
