Tektronix TG8000 User Manual

AVG7 Analog Video Generator module
AVG7 module
APL submenu
Usethismenuto
set the APL and Bounce parameters for the test signal outputs.
Use the up (▲)ordown(▼) arrow button to scroll through the menu. The
following figure shows the APL submenu.

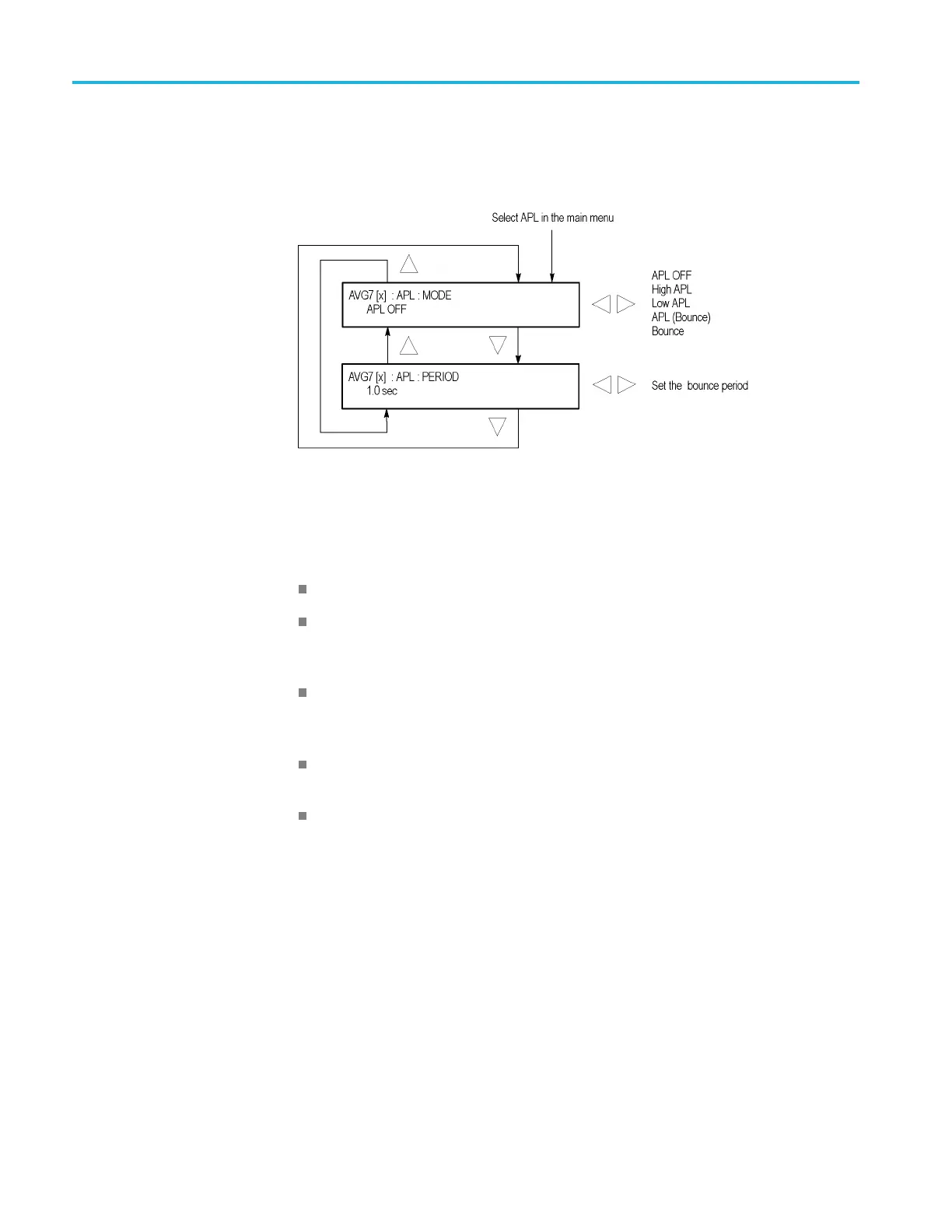

Figure 3-25: AVG7 module APL submenu
MODE. Sets the output mode of the APL signal. Use the left (◄)orright(►)
arrow button to select the mode, and then press the ENTER button to confirm
the sel
ection. The choices are:
APL OFF: Outputs the selected signal without making any changes.
High APL: Divides the video lines of the selected signal into 5 lines (for
NTSC) or 4 lines (for PAL) and changes the lines except the last line to the
100% fl
at field signal, and then outputs them.
Low APL: Divides the video lines of the selected signal into 5 lines (for
NTSC
) or 4 lines (for PAL) and changes the lines except the last line to the
0% flat field signal, and then outputs them.
APL
(Bounce): Outputs the High APL signal and Low APL signal alternately
for the period set in the PERIOD menu item.
Bo
unce: Outputs the 100% flat field signal and 0% flat field signal alternately
(regardless of the selected signal) for the period set in the PERIOD menu item.
PERIOD. Sets the time interval between two signals when they are output in
APL (Bounce) or Bounce mode. Use the left (◄) or right (►) arrow button to
change the interval. You can set the value from 0.5 seconds to 2.0 seconds in
0.5 second steps.
3–46 TG8000 Multiformat Test Signal Generator User Manual
