DVG7 Digital Video Generator module
DVG7 module
TIMING submen
u
Usethismenuto
adjust the timing offset of the serial digital video outputs relative
to the internal reference signal (frame reset signal). Use the up (▲)ordown
(▼) arrow button to change the m enu items. The following figure shows the
TIMING submenu.

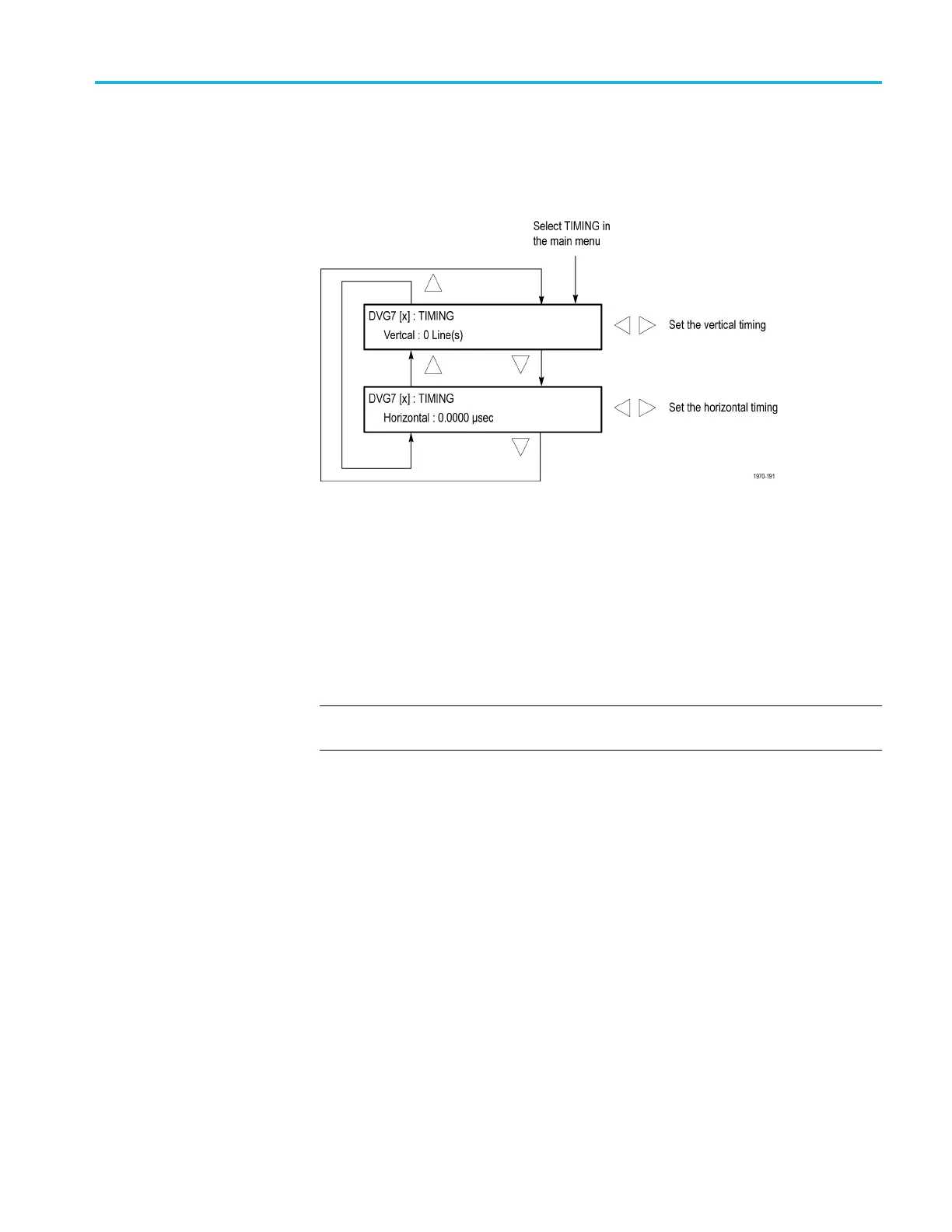

Figure 3-50: DVG7 module TIMING submenu
Vertical. Sets the vertical timing offset. Use the left (◄)orright(►) arrow
button to change the timing o ffset. You can set the value within 1/2 frame for
525-270 and 625-270 formats.
Horizontal. Sets the horizontal timing offset. Use the left (◄) or right (►) arrow
butto
n to change the timing offset. You cansetthevaluefrom-1to+1linein
1-clock (37.0 ns for 525-270 and 625-270 formats) steps.
NOTE. You can reset the timing offset to zero by pressing the left (◄)orright(►)
arrow buttons simultaneously.
TG8000 Multiformat Test Signal Generator User Manual 3–91
