DVG7 Digital Video Generator module
DVG7 module
VIDEO submenu
Usethismenuto
perform the following tasks:
Turn each serial digital v ideo component (Y, Pb, or Pr) on or off individually.
Turn the insertion of the EDH (Error Detection and Handling) on or off.
Set the resolution of the serial digital video signals to 8 or 10 bits.
Turn the output mode for an audio/video timing measurement on or off.
Use the up (▲)ordown(▼) arrow button to scroll through the menu. The
following figure shows the VIDEO submenu.

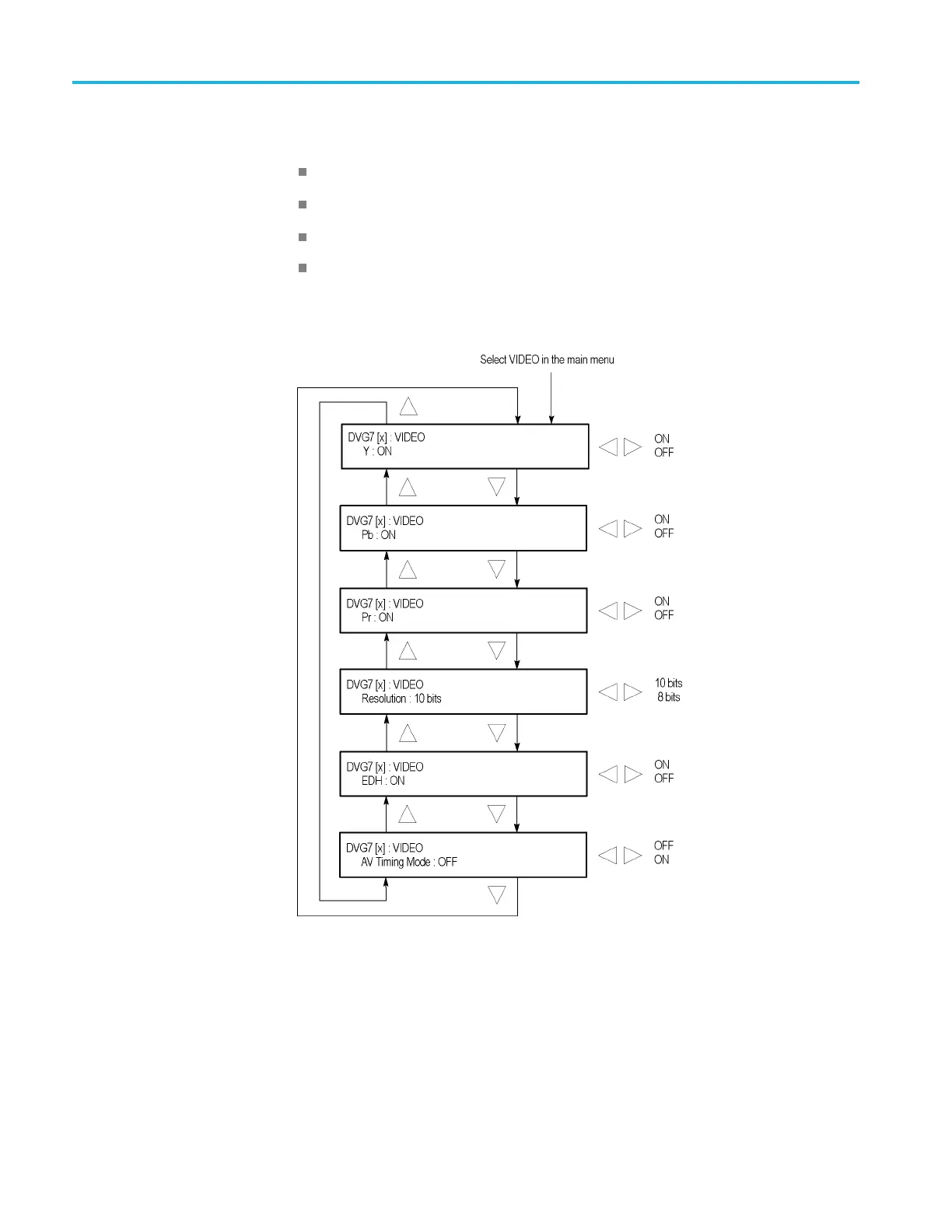

Figure 3-51: DVG7 module VIDEO submenu
3–92 TG8000 Multiformat Test Signal Generator User Manual
