Tektronix TG8000

GPS7 GPS Synchronization and Timecode modu le
GPS7 modu le
HD TRI-LEVEL SYNC
RATE submenu
Use this submen
u to select whether an integer or non-integer clock will be used
for the HD tri-level sync rate for the BLACK outputs. Use the left (◄)orright
(►) arrow button to select Integer (60, 50, 30, 25, 24) or Non-Integer (59.94,
29.97, 23.98).PresstheENTER buttontoconfirm the selection.
NOTE. The c lock rate selected here affects which signal formats are available
for the BLACK outputs.
The following figure shows the HD TRI-LEVEL SYNC-RATE submenu.

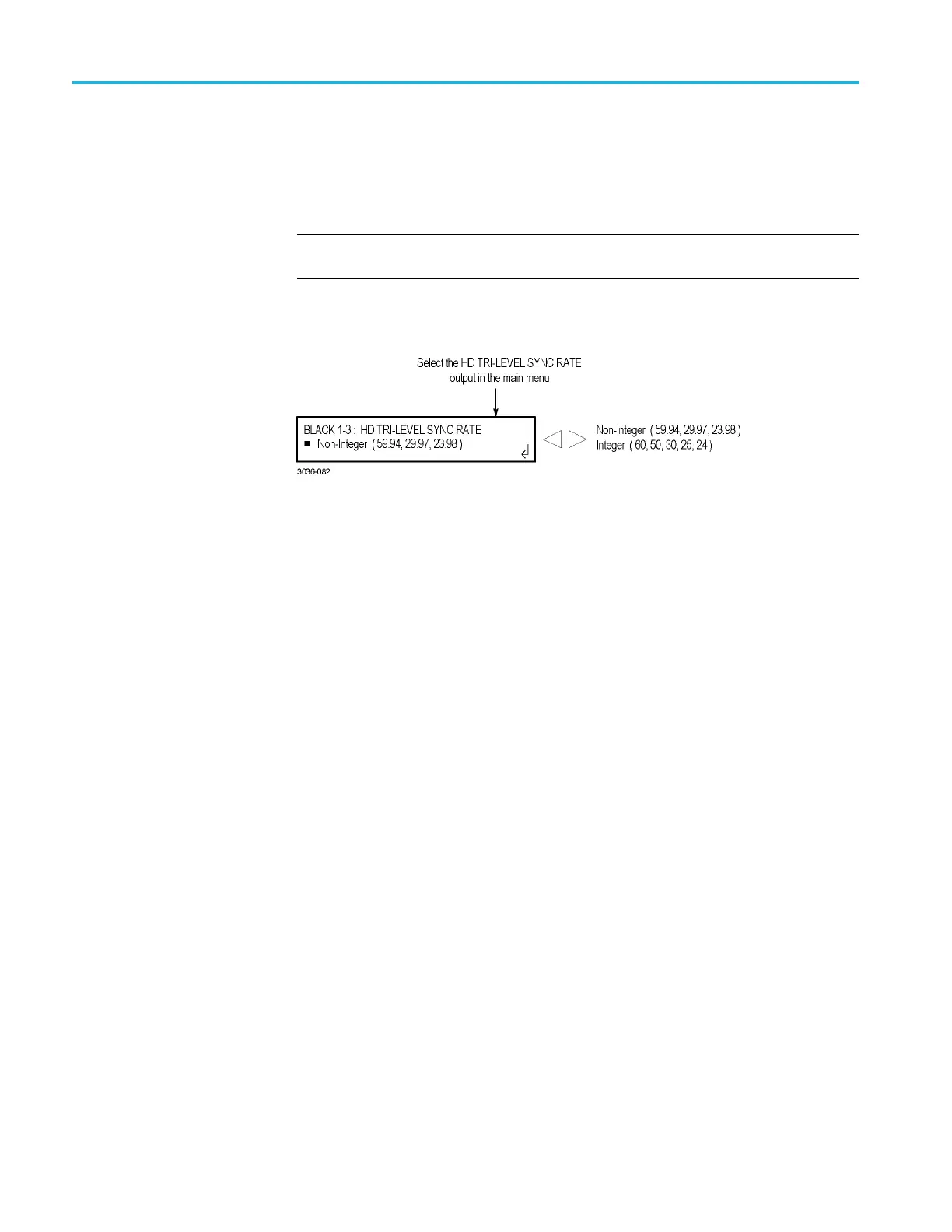

Figure 3-59: GPS7 module HD TRI-LEVEL SYNC RATE submenu
3–126 TG8000 Multiformat Test Signal Generator User Manual
