Tektronix TG8000 User Manual

HD3G7 HD 3 Gb/s SDI Video Generator module

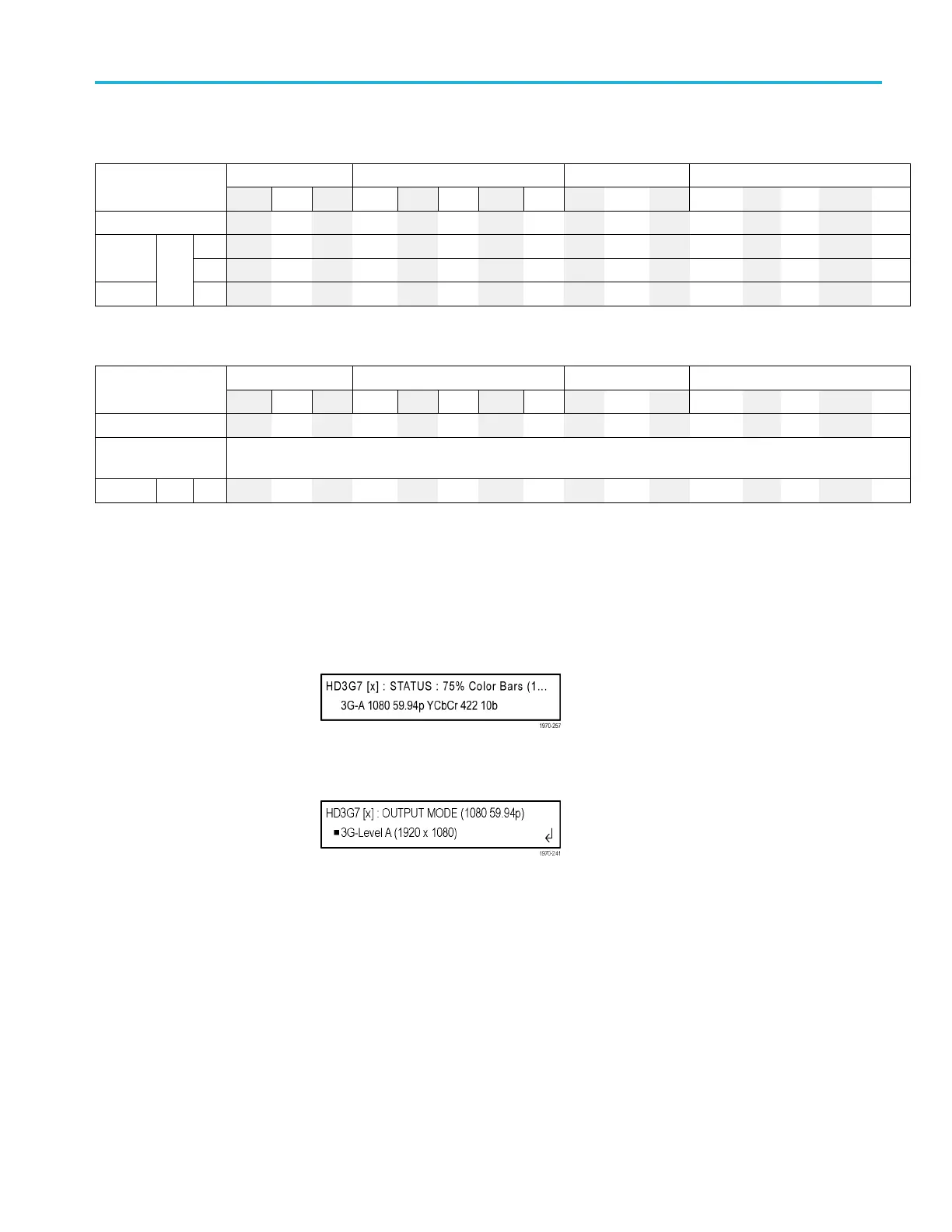

Table 3-35: HD3G7 module Converter mode – 3 G Level B (1920 × 1080) (cont.)
1080i 1080p 1080i
1080psf
HD Input Signal
59.94 50 60 23.98 24 25 29.97 30 50 59.94 60 23.98 24 25
29/97
30
Output Format 59.94i 50i 60i 23.98p 24p 25p 29.97p 30p 50p 59.94p 60p 23.98psf 24psf 25psf 29.97psf 30psf
12bXXXXXXXX X XX X X
GBR
10bXXXXXXXX X XX X X
GBR+A
4:4:4
10bXXXXXXXX X XX X X
Table 3-36: HD3G7 module Converter mode – 3G Level B (2×HD 1920 × 1080)
1080i 1080p 1080i
1080psf
HD Input
Signal
59.94 50 60 23.98 24 25 29.97 30 50 59.94 60 23.98 24 25
29/97
30
Output
Format
59.94i 50i 60i 23.98p 24p 25p 29.97p 30p 50p 59.94p 60p 23.98p
sf
24psf 25psf 29.97p
sf
30psf
Outpu
t sample
structure
YCbCr
4:2:2 10b X X X X X X X X X X X X X
To select th e ou tpu t mode
on the HD3G7 module
You can select how the generated 1.5 Gb/s or 3 Gb/s serial data stream is
constructed. This selection is available in the HD3G7 OUTPUT MODE
submenu. Perform the following steps to select the output mode:
1. Press the front-panel MODULE button until the HD3G7 module main menu
appearsasshownbelow.
2. Press the down (▼) arrow button to access the output mode menu, as shown
below:
Note the dot at the start of the second line and the return symbol at the end
of the second line. The dot indicates that this is the currently selected output
mode, and the return symbol indicates that you can press the ENTER button
to select a new displayed output mode.
TG8000 Multiformat Test Signal Generator User Manual 3–163
