HD3G7 HD 3 Gb/s SDI Video Generator module
3G non-fast progressive formats (1080 line)
3G fast progressive format (1080 line)
• YCbCr 422 10b
3G formats (720 line)
• RGB 444 10b • YCbCr 444 10b
• RGBA 444 10b • YCbCrA 444 10b
2×HD formats (1080 and 720 line)
• YCbCr 422 10b
2K line formats
• XYZ 444
12b
• RGB 444 12b
HD format
• YCbCr 422 10b
When the desired sample structure is displayed, press the ENTER button to
select it.
To select the test sig n al on
the HD3G7 module
All of the signal sets that are available in the module are already assigned to the
corresponding test signal buttons. (See Table 3-37.) When the HD3G7 module
is selected and you press any of the front-panel te st signal buttons, the selected
signal in the signal set is output. (See Figure 3-77.)
Fo
r example, when you press the COLOR BAR test signal button, a signal in
the Color Bars signal set is output. Use the left (◄)orright(►) arrow button, or
press the COLOR BAR test signal button repeatedly to select a different signal
from the Color Bars signal set.

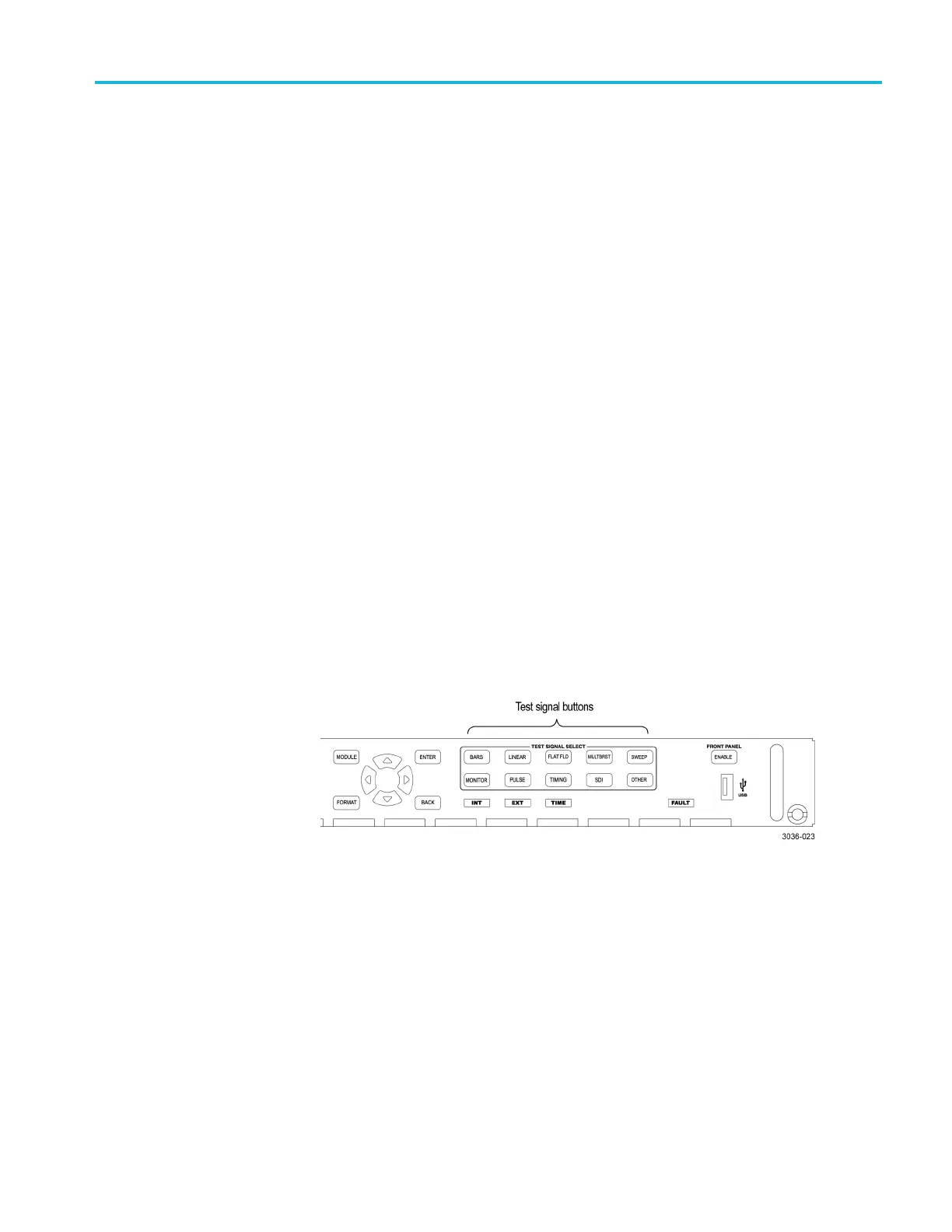

Figure 3-77: Front-panel test signal buttons
TG8000 Multiformat Test Signal Generator User Manual 3–165
