HD3G7 HD 3 Gb/s SDI Video Generator module
ATC-VITC. Use t
his menu selection to e nable or disable the Ancillary Ve rtical
Interval Time Code. Use the left (◄) and right (►) arrow buttons to select
between Enable and Disable, and then press the ENTER buttontoconfirm the
selection.
HD3G7 module
VIDEO submenu
Usethismenutoturneachserialdigital video component on or off individually
(generator mode only), and to disable the edge filter and the AV Timing mode.
Use the up (▲)ordown(▼) arrow button to scroll through the menu. The
following figure shows the VIDEO submenu.
NOTE. The items in this menu modify the signal output to make it non-standard.
To indica
te that the signal is non-standard, an asterisk “*” is inserted at the
beginning of the signal name when a parameter has been changed in this menu.

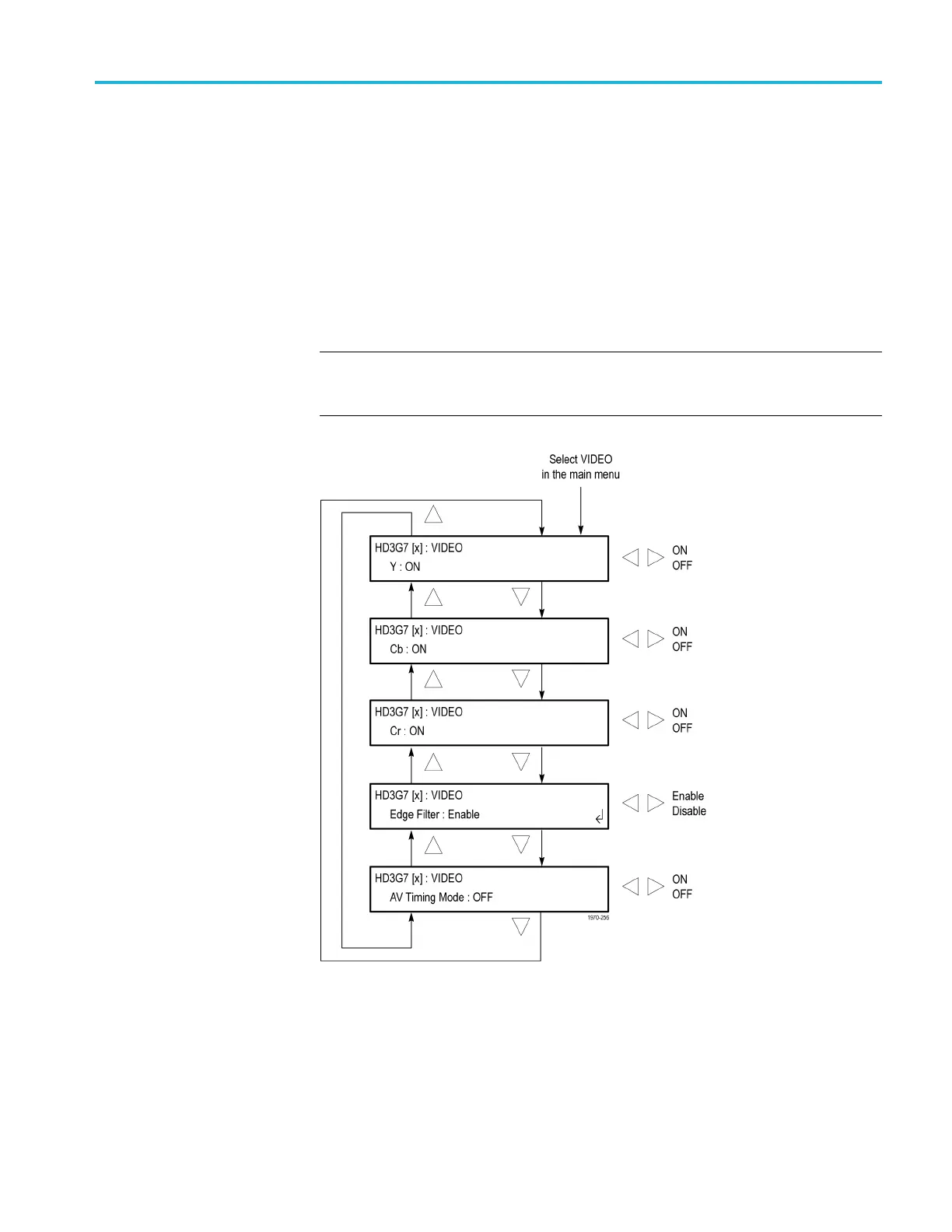

Figure 3-92: HD3G7 module VIDEO submenu
Y. Turns the Y component (YCbCr format), G component (GBR format), or X
component (XYZ format) of the serial d igital video signal on or off. Use the left
TG8000 Multiformat Test Signal Generator User Manual 3–199
