HD3G7 HD 3 Gb/s SDI Video Generator module
HD3G7 module
DIAGNOSTICS su bmenu
Usethismenuto
view operation parameters for the HD3G7 module. Module
diagnostics provide status information only and do not affect operating behavior.
The following figure shows the DIAGNOSTICS submenu.

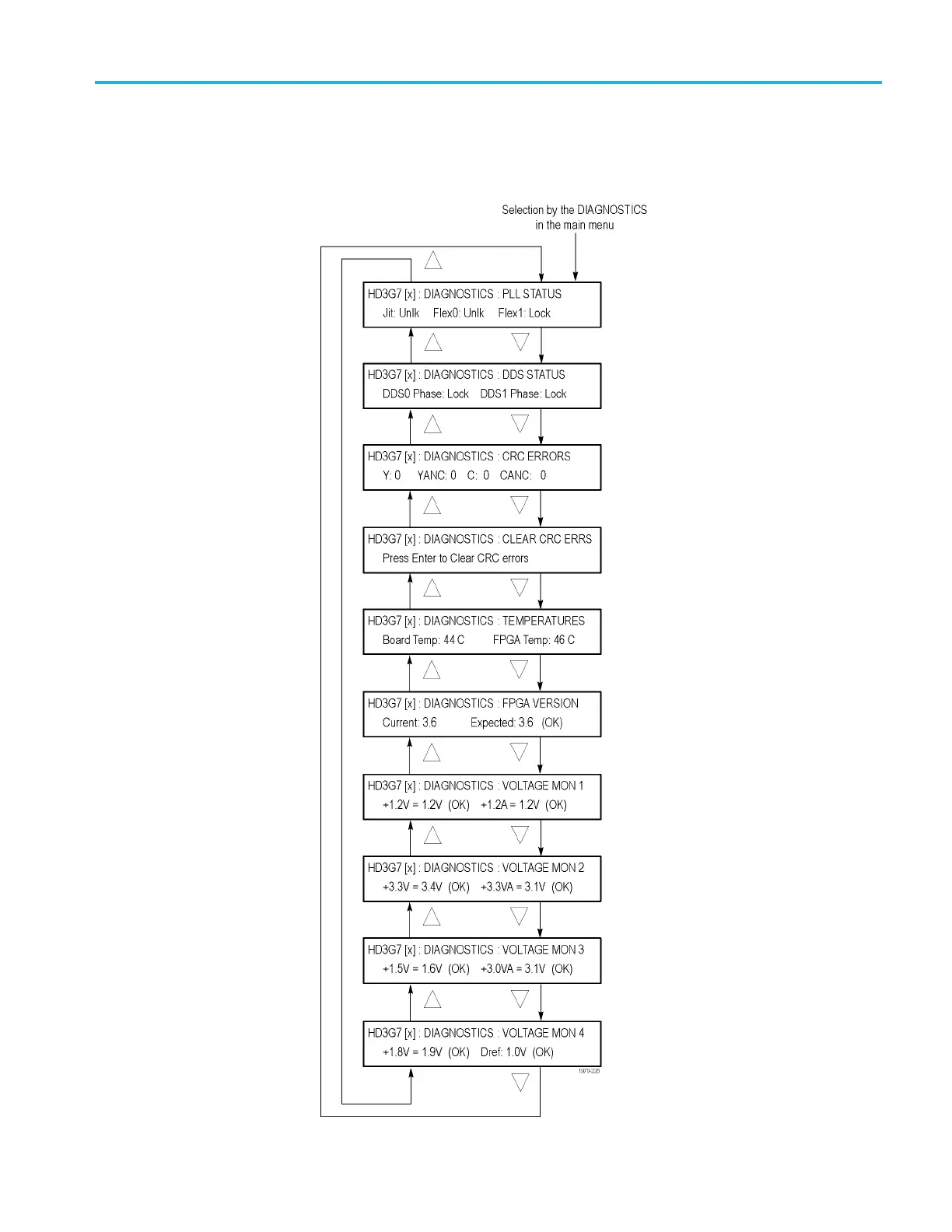

Figure 3-97: HD3G7 module DIAGNOSTICS submenu
TG8000 Multiformat Test Signal Generator User Manual 3–209
