HDVG7 HDTV Digital Video Generator module
HDVG7 module
TIMING submen
u
Usethismenuto
adjust the timing offset of the serial digital video outputs relative
to the internal reference signal (frame reset signal). Use the up (▲)ordown
(▼) a rrow button to change the menu items. The following figure shows the
TIMING submenu.

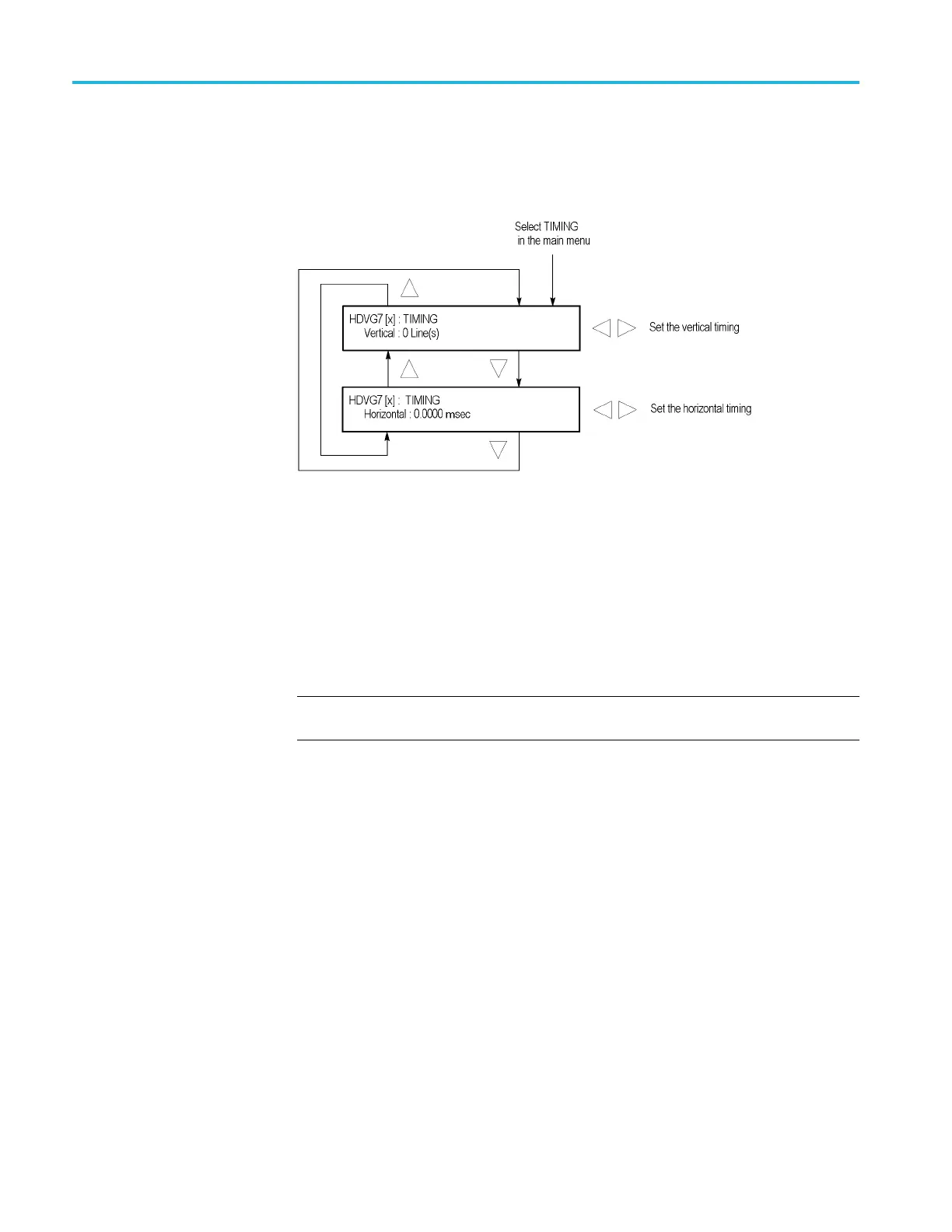

Figure 3
-111: HDVG7 module TIMING s ubmenu
Vertical. Sets the vertical timing offset. Use the left (◄) or right (►) arrow
button to change the timing offset. You can set the value from -1/2 to +1/2 frame
in 1-line steps.
Horizontal. (See page 3-133, GPS7 module TIME OF DAY submenu.)Sets the
horizontal timing offset. Use the left (◄)orright(►) arrow button to change the
timing offset. You can set the value from -1 to +1 line in 1-clock (13.5 ns) steps.
NOTE. You can reset the timing offset to zero by pressing the left (◄)orright(►)
arrow buttons simultaneously.
3–244 TG8000 Multiformat Test Signal Generator User Manual
