GPS7 GPS Synchronization and Timecode module
GPS7 module
TIME OF DAY submenu
Usethismenuto
set the source for the time of day setting and to set the date and
time that will be used when the GPS reference is set to internal. The following
figure shows the TIME OF DAY submenu.

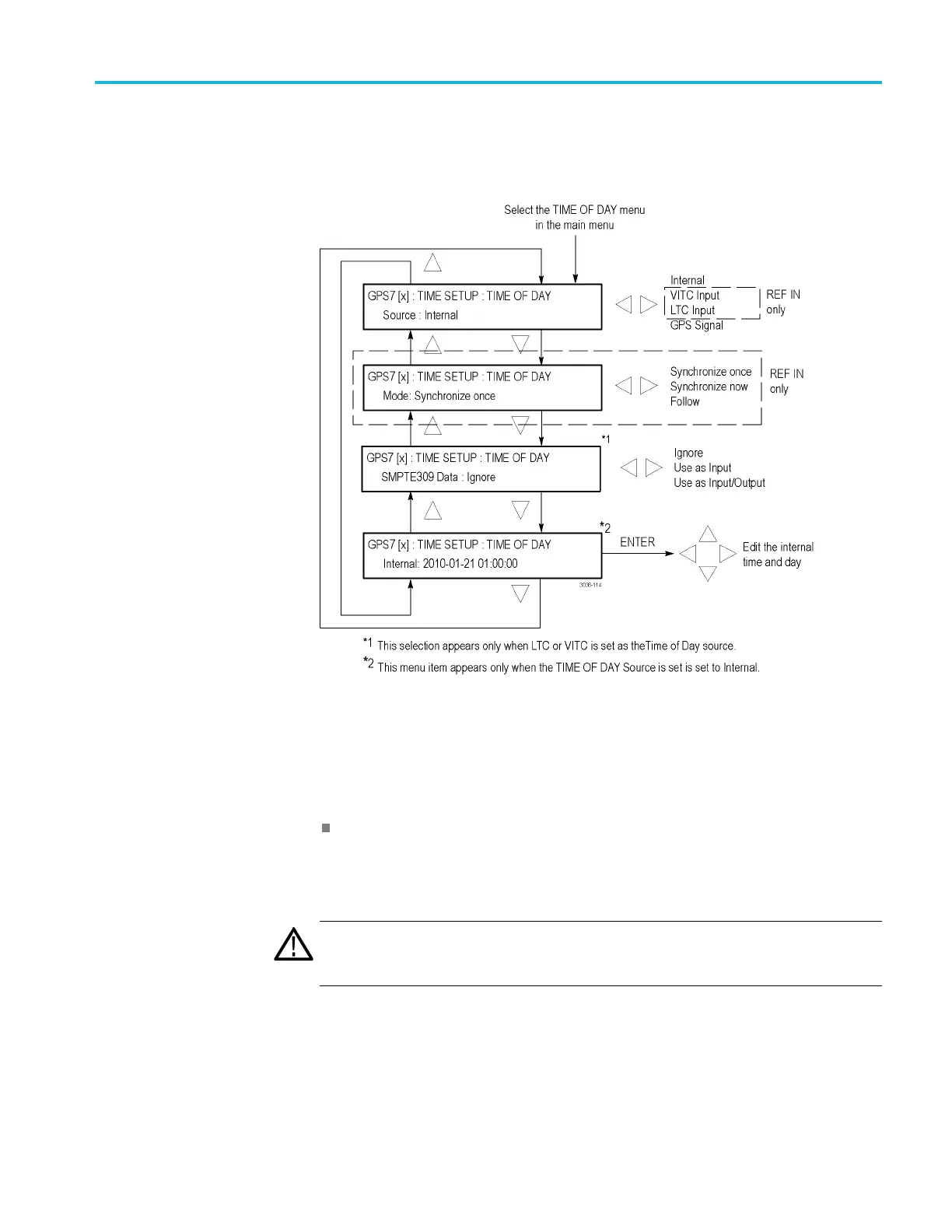

Figure 3-63: GPS7 module TIME OF DAY submenu
Source. Use the left (◄)orright(►) arrow button to select the timecode
refe
rence.
Internal: Enables the Internal Time of Day mode. When the timecode
ref
erence is set to Internal, an additional menu setting appears where you
can set the time manually (like setting any clock) and then activate the
time-of-day change.
CAUTION. When Internal is sele cted as the timecode reference, the time-of-day
will not be automatically changed. (See page 3-137, How to set the time-of-day
in Internal mode.)
TG8000 Multiformat Test Signal Generator User Manual 3–133
