SDI7 Dual Channel SD/HD/3G SDI Video Generator module
SDI7 module
OVERLAY submenu
Usethismenuto
select an item (logo, ID text, circle, or burnt-in timecode) to
overlay on the output test signal, and to set the blinking mode for the overlay. Use
the up (▲)ordown(▼) arrow button to scroll through the menu.
NOTE. You can store overlay functions, including text, in the mainframe presets
so that the overlay is restored on power up.

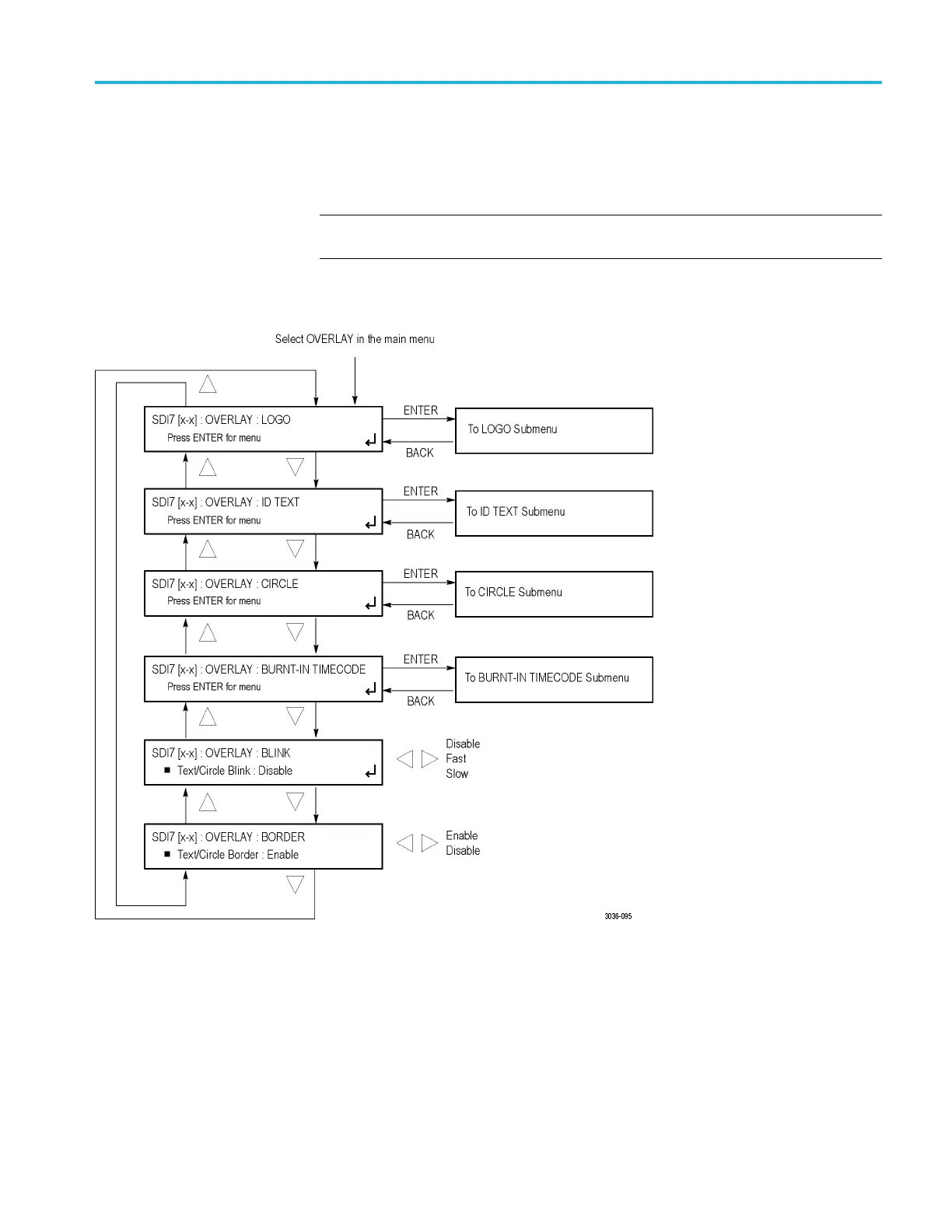

The following figure shows the OVERLAY submenu.
Fi
gure 3 -126: SDI7 module OVERLAY submenu
TG8000 Multiformat Test Signal Generator User Manual 3–293
