SDI7 Dual Channel SD/HD/3G SDI Video Generator module
SDI7 module
TIMECODE submenu
Use this menu to
set ancillary timecode (ATC) parameters for the selected output.
Use the up (▲)ordown(▼) arrow button to scroll through the menu. The
following figure shows the TIMECODE submenu.

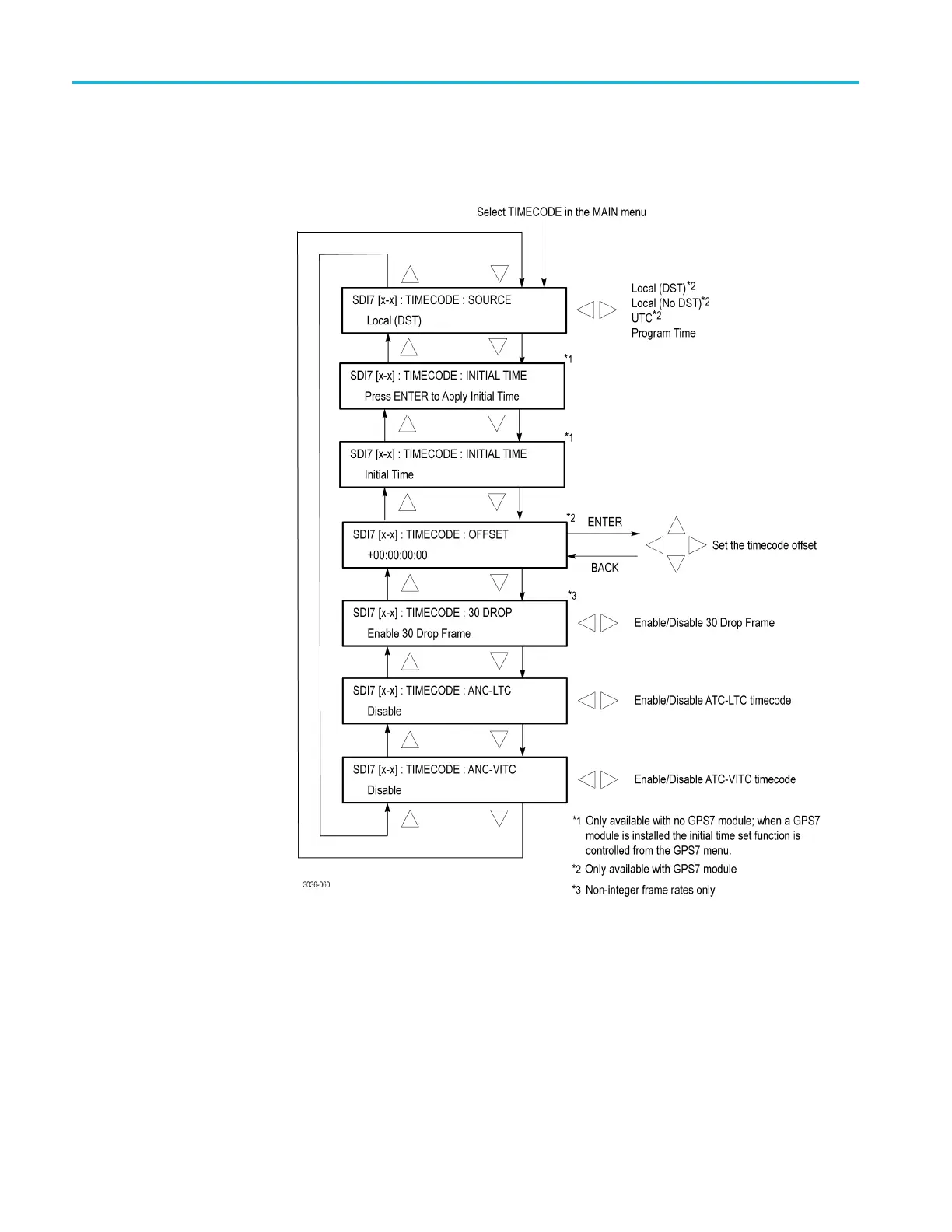

Figure 3-136: SDI7 module TIMECODE submenu
3–320 TG8000 Multiformat Test Signal Generator User Manual
