CLEAR UDW. Use t
his menu selection to clear the entire User Data Word. Press

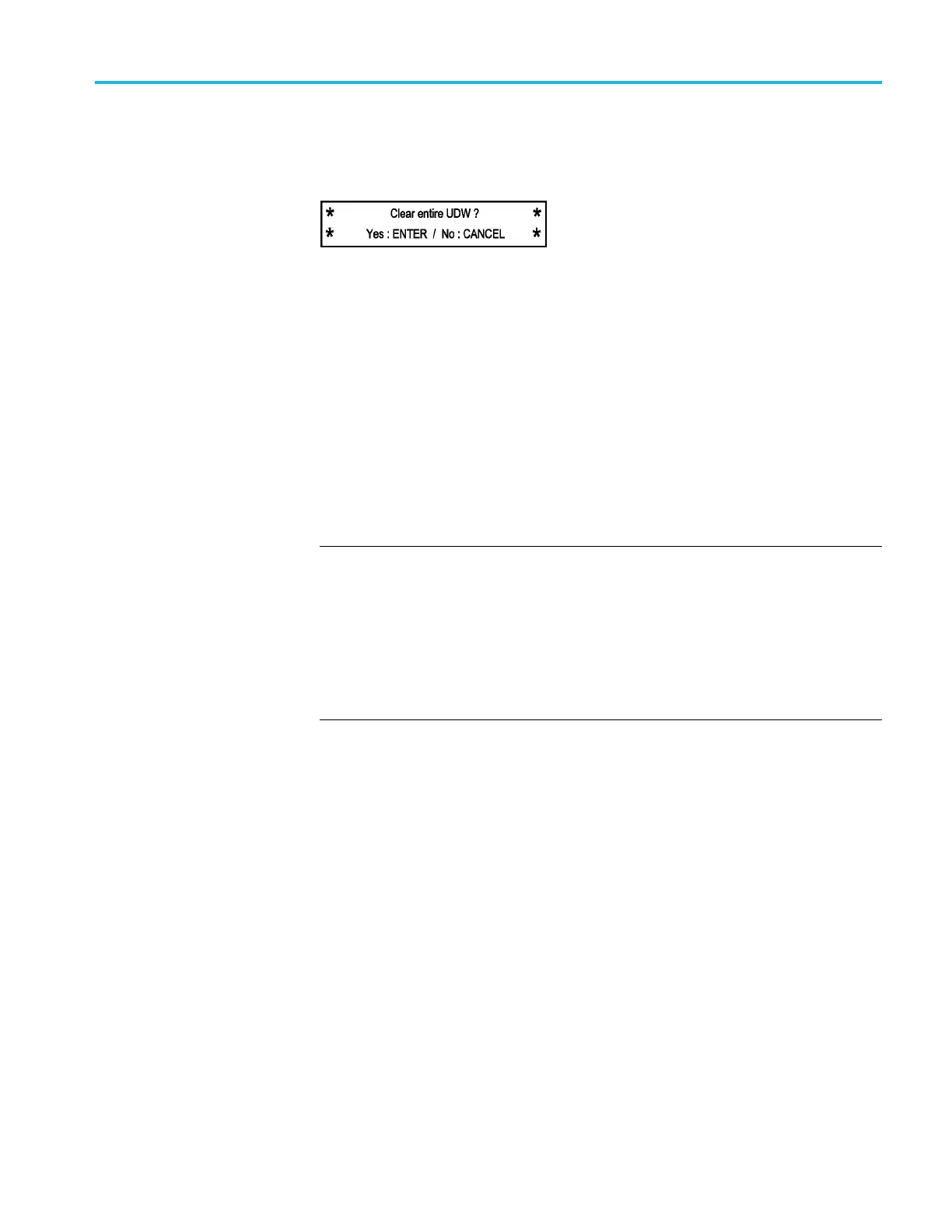

the ENTER button to enter the CLEAR UDW mode, which will present the
following dialog:
Press the ENTER button to clear the User Data Word and exit CLEAR UDW, or
press the BACK button to exit without clearing the User Data Word.
CS. Use this m enu selection to set the Checksum. Press the ENTER button to
edit the Checksum. You can set the Checksum from 0x00 to 0xFF (in 8-bit mode),
or from 0x000 to 0x3FF (in 10-bit mode). Use the left (◄)andright(►) arrow
buttons to position the cursor, and then use the up (▲)anddown(▼) arrow
buttons to set the number for that position. Press the E NTER buttontoconfirm
the Checksum and exit Checksum editing.
Auto-Calculate CS. Use this menu selection to enable or disable checksum
auto-calculation. Use the left (◄)andright(►) arrow buttons to select between
Enable or Disable, and then press the ENTER buttontoconfirm the choice.
NOTE. Different video modes and formats have different ranges of lines and pixels
in their active and ANC spaces. Users should be careful to change the line, field
and sample offset parameters of the ANC insertion feature after changing video
modes or formats to be sure the ANC data is programmed as desired.
If the line number or sample o
ffset are left at v alues outside the allowed range for
a given format, the packet will not be inserted in the stream. Alternatively if these
parameters are left at values near the e nd of active or ANC space, the packet may
overwrite other elements of the stream such as EAV and SAV.
Line. Use this menu selection to set the line to carry the ancillary data payload.
Use the left (◄)andright(►) arrow buttons to set the line number. This menu
selection is available only in progressive formats.
Field. Use this menu selection to set the Field to carry the ancillary data payload.
Use the left (◄) and right (►) arrow buttons to select between Field: 1 O nly,
Field: 2 Only, or Field: 1 and 2. This menu selection is available only in
interlaced formats.
Field 1 : Line. Use this menu selection to s et the line in F ield 1 to carry the
ancillary data payload. Use the left (◄) and right (►) arrow buttons to set the
line number. This menu selection is ava ilable only in interlaced formats.
Field 2 : Line. Use this menu selection to set the line in Field 2 to carry the
ancillary data payload. Use the left (◄) and right (►) arrow buttons to set the
line number. This menu selection is ava ilable only in interlaced formats.
