Tektronix TG8000 User Manual

Getting started

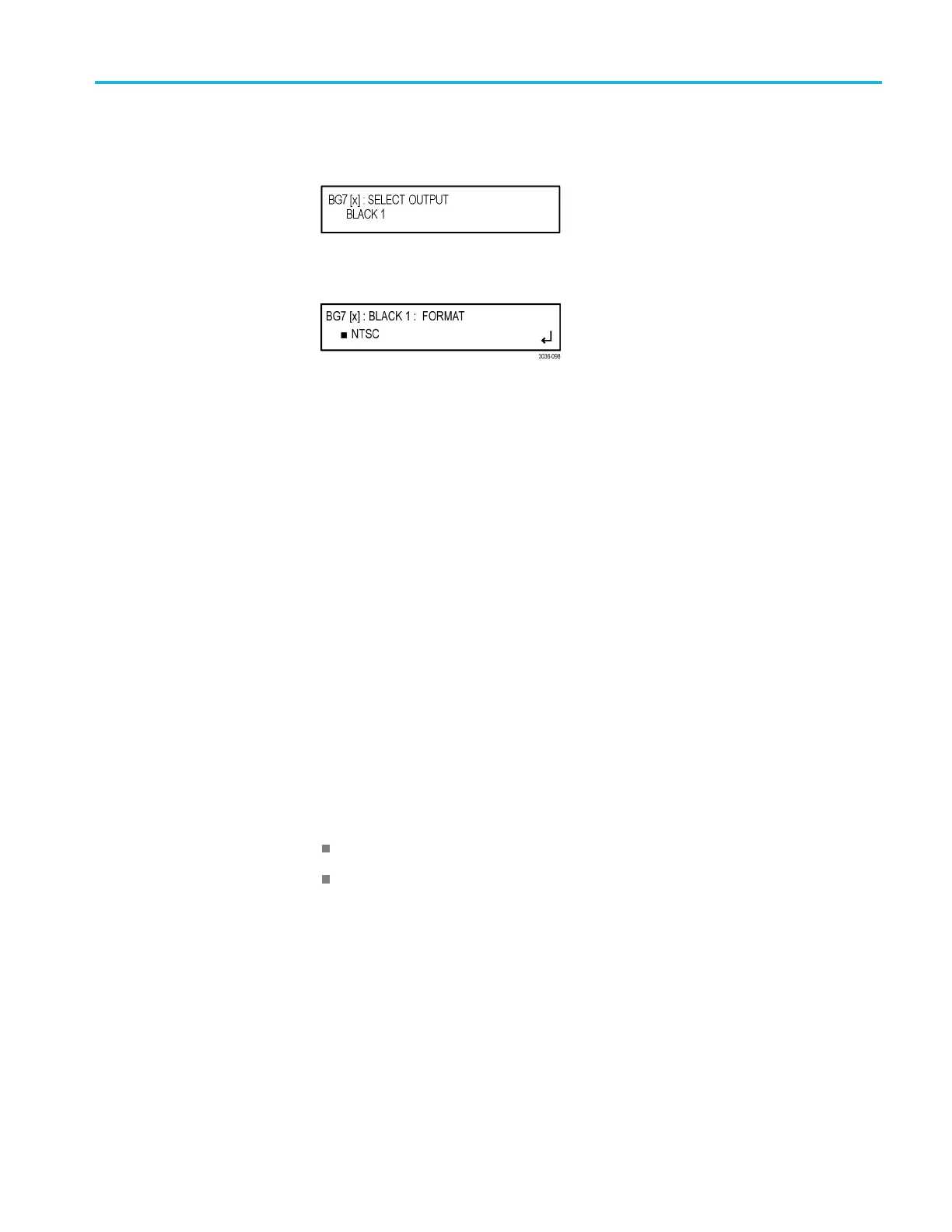

6. Press the front
-panel MODULE button until the BG7 main menu shown
below appears.
7. Press the front-panel ENTER button. The BLACK FORMAT menu selection
shown below appears.
8. Press the left (◄)orright(►)arrowbuttontoselectNTSC or PAL and then
press the ENTER button to enable the selection.
9. Connect the BLACK 1 connector to the NTSC/PAL waveform monitor using
the 75 Ω BNC cable.
10. Set the waveform monitor to view the blanking area of the signal.
11. Check that the appropriate black burst s ignal is displayed.
12. Press the left (◄)orright(►) arrow button to select 1080 59.94i and then
press the ENTER button to enable the selection.
13. Disconnect the BNC cable from the NTSC/PAL waveform monitor, and th
en
reconnect it to the HDTV waveform monitor.
14. Check that the appropriate HDTV trilevel sync signal is displayed.
15. Repeatsteps6through14fortheBLACK 2, BLACK 3,andBLACK 4
outputs.
DVG7 module functional
check
Use the follo
wing procedure to check that the DVG7 Digital Video Generator
module is functional:
Required equipment.
Serial digital waveform monitor
75 Ω BNC cable
Procedure.
1. Install the module into the TG8000 mainframe. (See page 1-11.)
2. Power on the TG8000 mainframe by connecting it to the power source. The
initialization process for all installed modules is executed.
3. Check that no error messages appear on the LCD display.
4. Warm up the instrument for 20 minutes.
TG8000 Multiformat Test Signal Generator User Manual 1–25
