Getting started

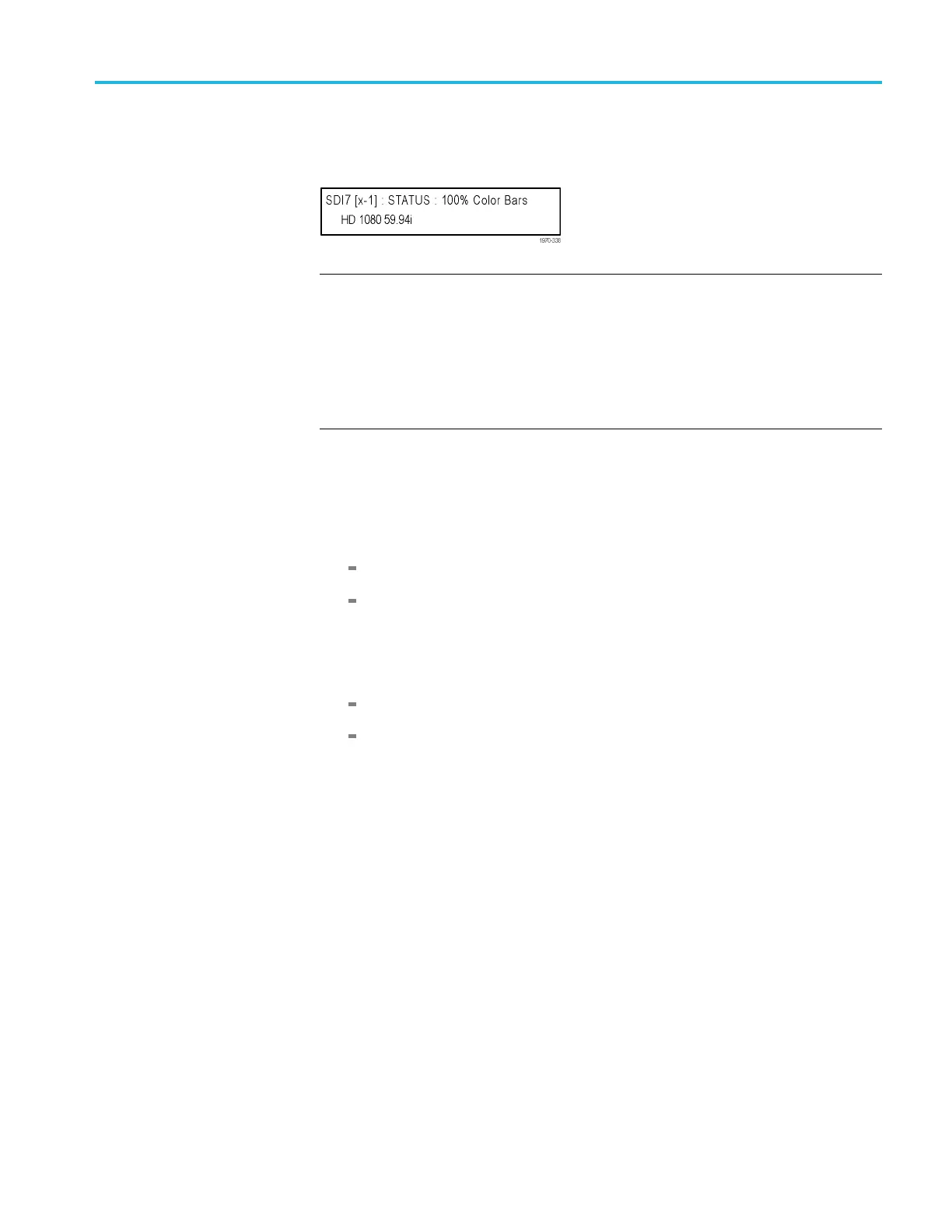

5. Press the front
-panel MODULE button until the SDI7 main menu for
channel 1 appears as shown in the following figure.
NOTE. The SD
I7 module provides two channels of output. The display indicates
which SDI7 channel is selected. For example, a display of SDI7[3-1] indicates
that the SDI7 module is installed in slot 3 and that channel 1 is selected. A display
of SDI7[3-2] indicates that channel 2 is selected.
Press the MODULE button to advance from channel 1 to channel 2. You c an press
the left (◄)orright(►) arrow button to switch between channels 1 and 2 of the
selected SDI7 module when the STATUS menu is displayed as shown above.
6. Press the down (▼)arrowbuttontoselectOUTPUT MODE,andthenuse
the left (◄)orright(►) arrow button to s elect the appropriate output mode
for your SDI7 module as listed below. When the desired output mode is
displ
ayed, press the ENTER button to confirm the selection.
Option 3G enabled: select the 3G-Level A (1920 × 1080) output mode.
Option 3 G not enabled: sele ct the HD 1080 59.94i output mode.
7. Press the FORMAT button and use the left (◄)orright(►) arrow button to
select the appropriate format for your SDI7 module a s listed below. When the
desired format is displayed, press the ENTER buttontoconfirm the selection.
Option 3G enabled: select the 1080 50p format.
Option 3G not enabled: select the 1080 50i format.
8. Press the COLOR BAR button and select a signal to output.
9. Press the BACK buttontoexittheCOLORBARSmenu.
1
0.
C
onnect the SIGNAL 1A connector to the HDTV waveform monitor using
the 75 Ω BNC cable.
11. Set the waveform monitor to view the signal.
12. Check that the signal appears as expected. Check for errors on the video
session screen of the waveform monitor.
13. Disconnect the BNC cable from the SIGNAL 1A connector, and then connect
the BNC cable to the SIGNAL 1B connector.
TG8000 Multiformat Test Signal Generator User Manual 1–43
