The menu for programming the number of input pulses expected
to be introduced at the roller shutter control or expected to be
generated by the shock sensor (see instruction on installing and
servicing the MC 100 TE detector) can be set here.
Entered value of 00 means that to the input of the programmed
magnetic contact could be connected normal wire detectors
without using the magnetic contact itself. Entered value of 01
means that the magnetic contact is used together with the con-
nected normal wire detectors. The rolling shutter set pulse val-
ues shall be within the range of 2÷250. It is recommended when
controlling rolling shutters the preset range to be the within value
of 2÷25. With a shock sensor the value depends on the stabil-
ity of the construction in which the magnetic contact has been
installed and it is recommended that the preset values be within
the range of 20÷100, where the higher value shall mean a less
responsive sensor.
The performance is as described in §3.1.3.
The performance is as described in §3.1.2.
The performance is as described in §3.1.2.
The performance is as described in §3.1.2.
The performance is as described in §3.1.3.
Use the
ENT
button to conrm all entered data and changes.

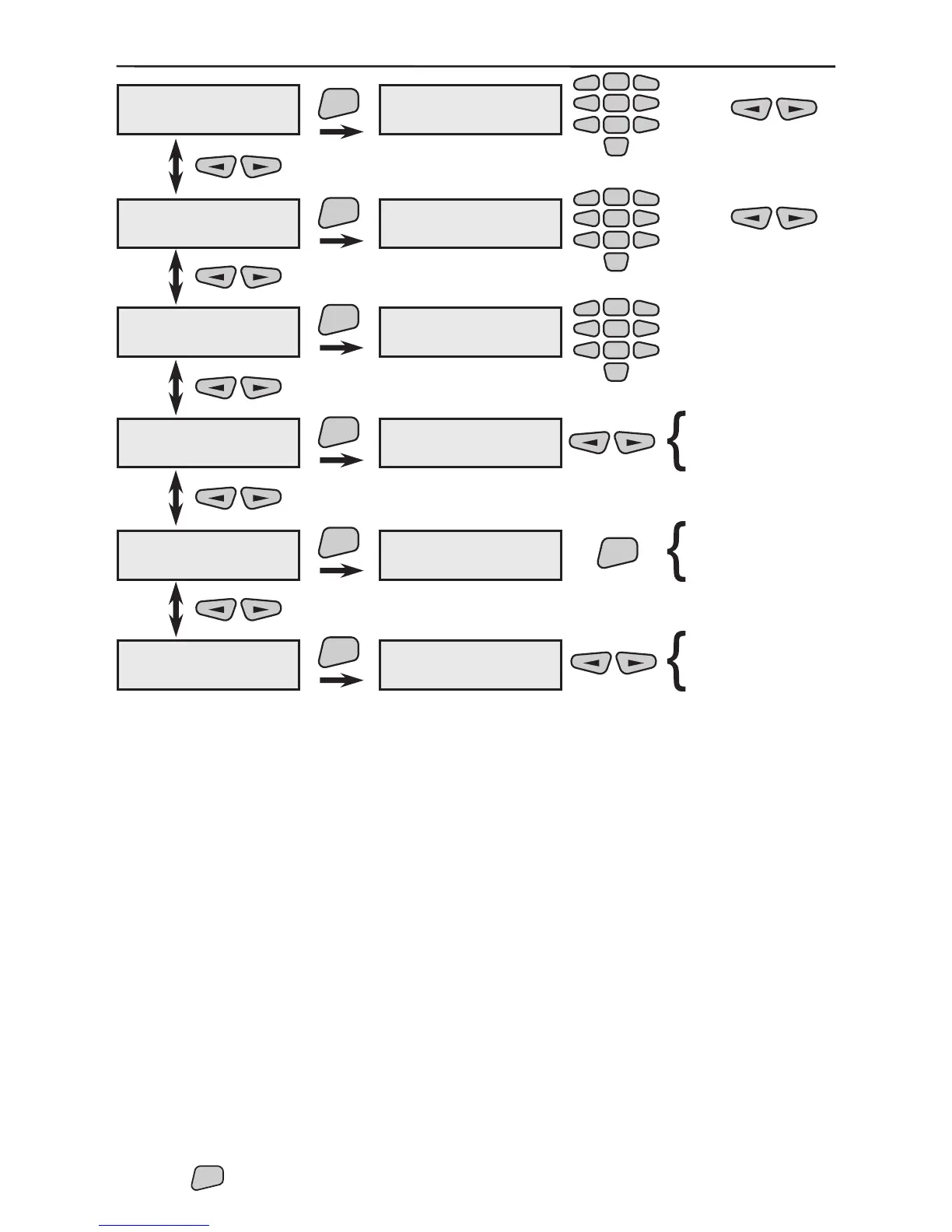

MC01
