Addressable Fire Panel IRIS - Installation and Programming Manual 35
• - the output is set at ON, when the result of the logical function is FALSE.
• - the output is set at ON, when the result of the logical function is TRUE.
• - the output signal is continuous
• - the output signal is a pulse signal (3 sec. ON / 3 sec. OFF)
• - the output signal is a single pulse signal (5 sec)
ONE PULSE must be used in the case of ACTION type activating input or else the activat-
ing input must be LATCHED or the output LATCHED.
• – deleted only after RESET.
• – monitors the status.

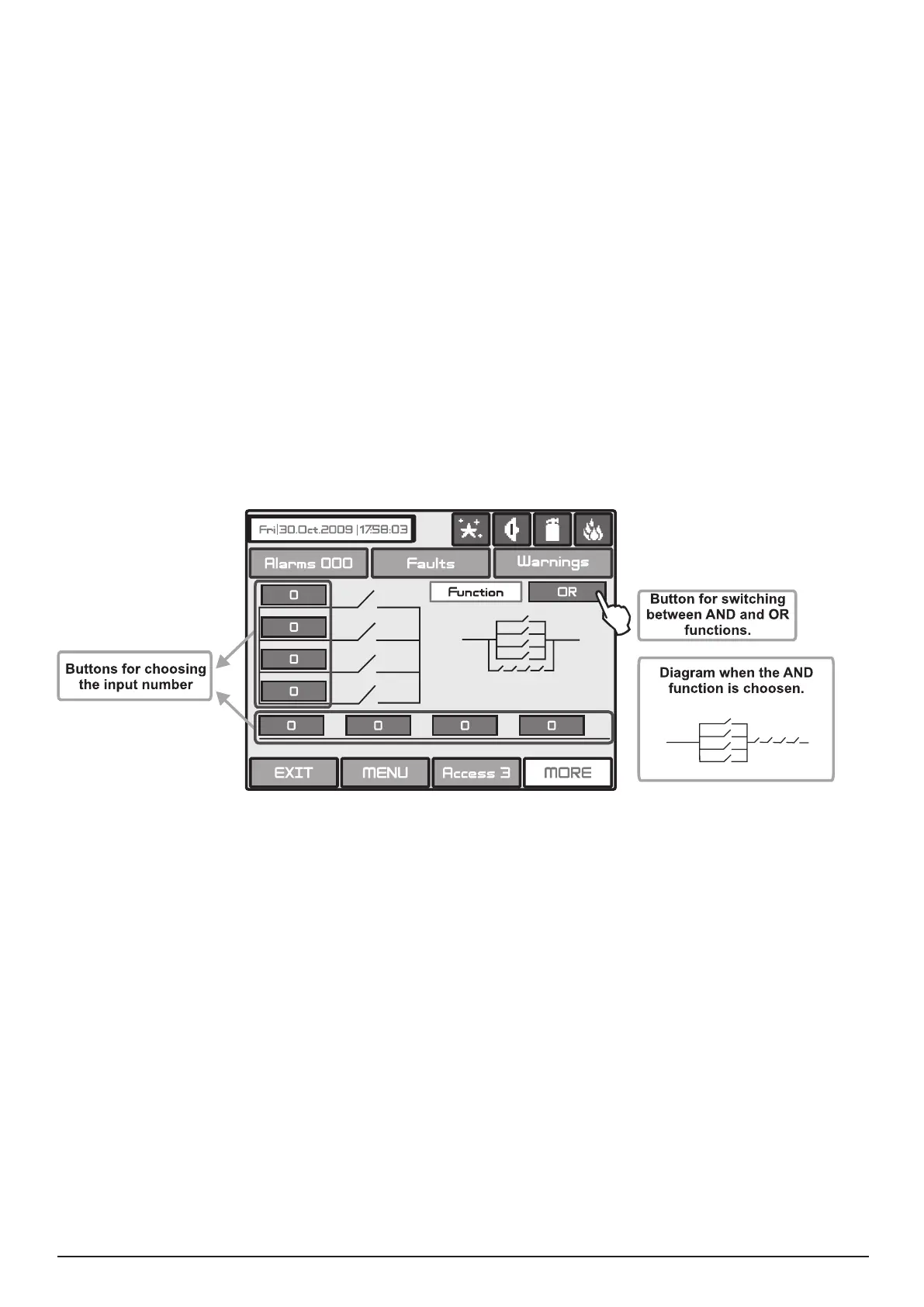

Fig. Screen 18
All changed parameters are conrmed and saved by pressing the APPLY button in the upper left cor-
ner of the screen.
