34 Addressable Fire Panel IRIS - Installation and Programming Manual
3.6 Outputs
To enter the submenu for outputs conguration choose “Outputs” button from Programming menu - Fig.
Screen 3. The general view of the menu for inputs conguration is shown on Fig. Screen 17.

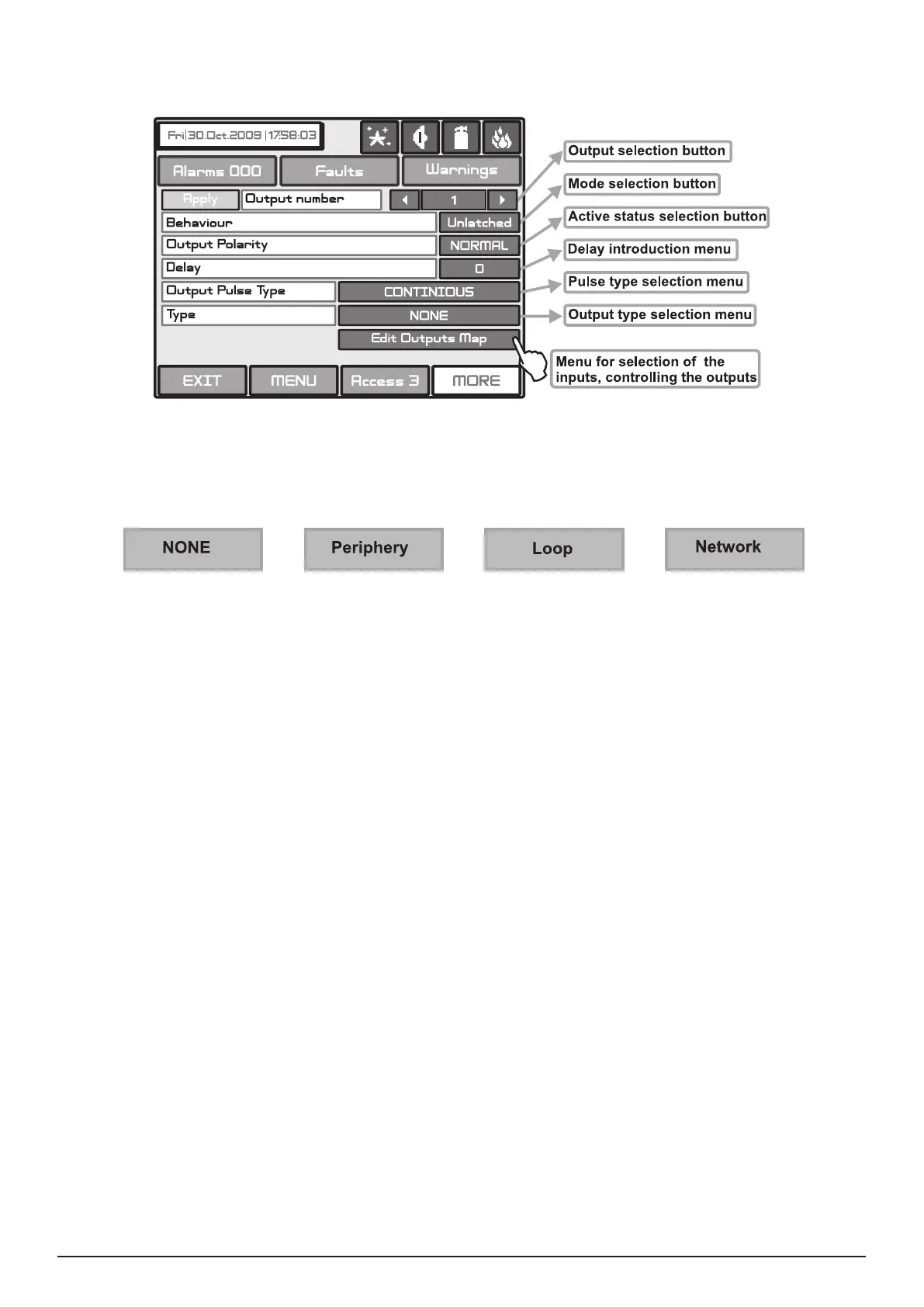

Fig. Screen 17 - Menu for introducing output parameters.
By pressing the button for output type a new screen is displayed from which can be chosen the following
types:
Depending on the type of output after choosing the button MORE could be programmed the parameters of
every output type. The information is displayed on a separate screen. There can be programmed the follow-
ing parameters:
• PERIPHERY - Choose the MORE button. Set the parameters in the screen “OUTPUT Parameters - pe-
riphery devices”:
- Address of periphery device. Enter an address number from 1 to 10.
- Output of periphery device. The button have two states - ON and OFF, according the type of the
device. Enter a periphery device output number.
• LOOP - Choose the MORE button. Set the parameters in the screen “OUTPUT Parameters - loop de-
vices”:
- Address of loop device. Enter an address number from 1 to 100 (LOOP SS) and 1 to 250 (LOOP
TTE).
- Loop number. Enter the loop number.
- Type of the device.
- Channel. Enter a serial number of an output accessable in the device.
• NETWORK - Panel / repeater number and output number, to which the output shall be attached. Choose
the MORE button. Set the parameters in the screen “OUTPUT Parameters - network”:
- OUTPUT Number. Enter a number from 1 to 128.
- PANEL/REPITER Number. Enter a number from 1 to 32.
All changed parameters are conrmed and saved by pressing the APPLY button in the upper left cor-
ner of the screen.
The delay can be within the interval 0–600 sec.
