5. INSTRUCTION FOR USE
5.1 Status Line
Purpose – Indicates the current status of the re alarm panel, containing detailed information on the access
level, the working mode (day/ night time), the status of the re output and re protection, etc - see Fig. Screen
43 and Fig. Screen 44.

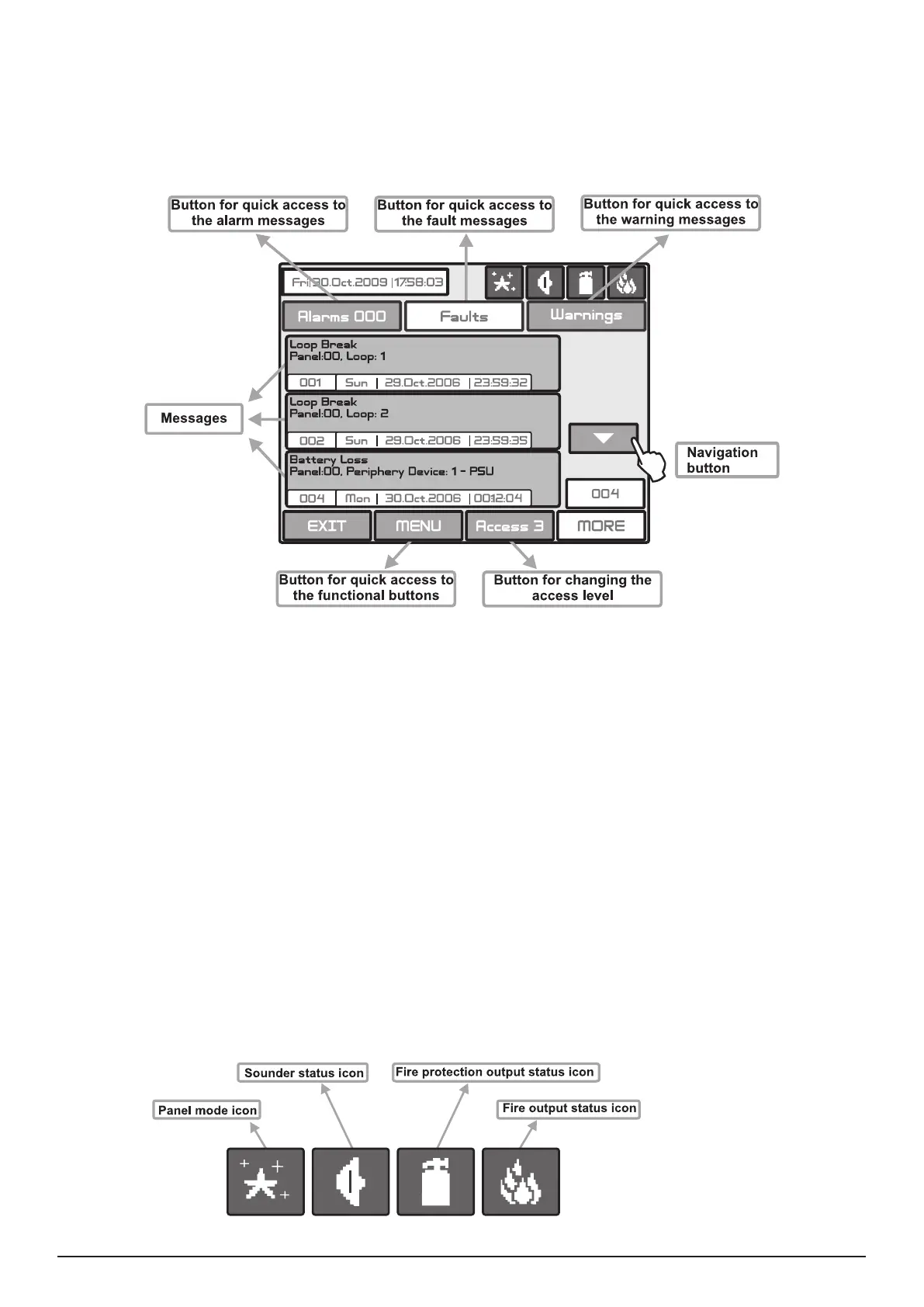

Fig. Screen 43.

Used for accessing the Change Access Level menu.

Used for changing over from message review mode to functional buttons mode.

Used for accessing the alarm review window. The button contains a counter of the current alarms in the panel.

Used for accessing the error review window.

Used for accessing the warnings review window.
5.2 Panel Status Icons
Fig. Screen 44.
