Addressable Fire Panel IRIS - Installation and Programming Manual 7
Battery Power Supply
- Voltage output (U): 13,8V
- Current output (I): 2A
- Number of the Batteries: 1, 12V/ 18Ah
- Battery Size: 167x181x76mm
- Type of the Battery connection: with a at terminal lug - Ø5mm (M5)
List of the fuses
- General Power Supply: 2A, T Type
- Outputs: 0,3A, PTC Type
- Battery: 7.5A, PTC Type

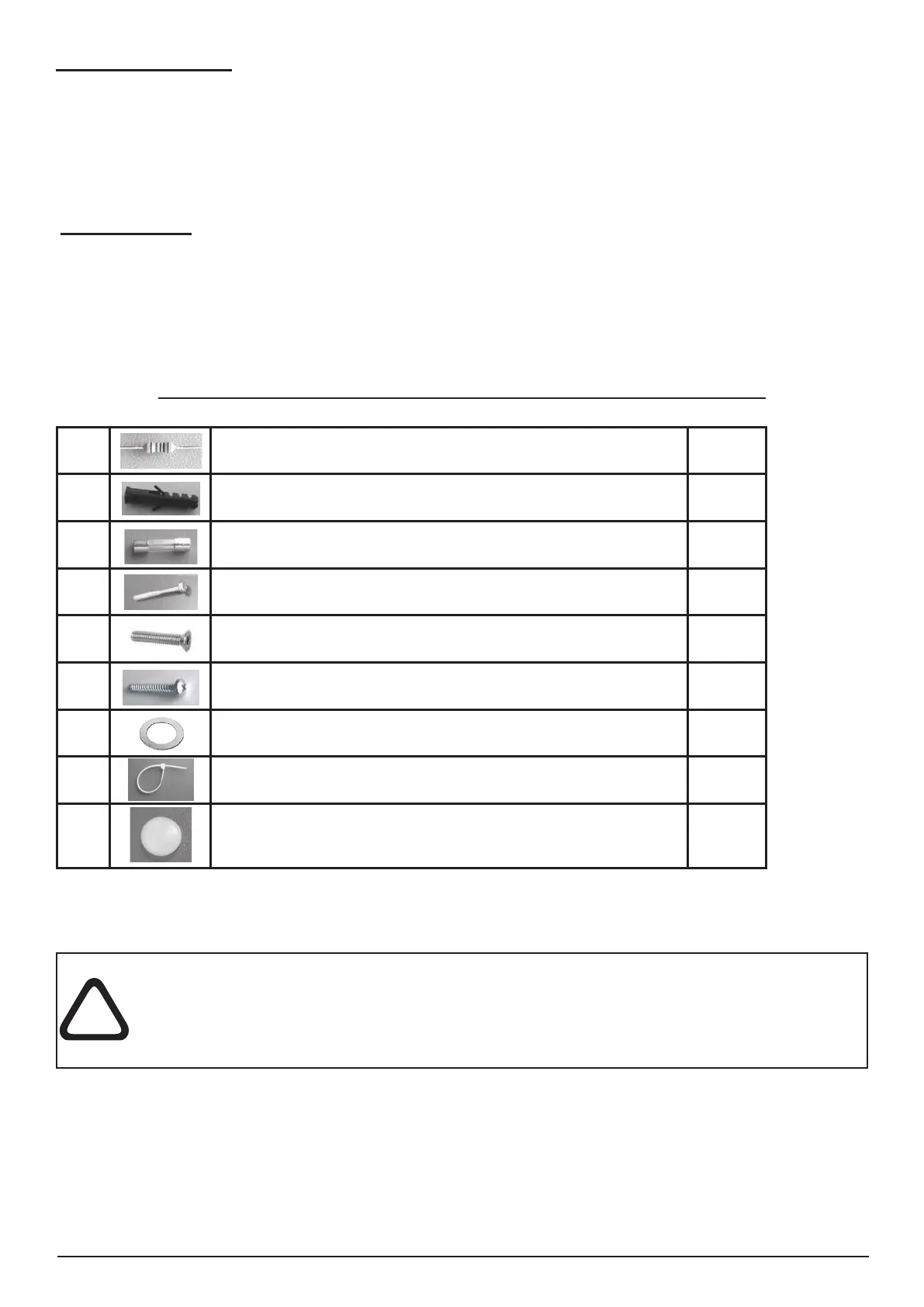

List of the additional components, included in the set of the re panel IRIS:
1. Resistor 10K ±5%, 0,25W 2
2. Anchor 6х30mm 4
3. Fuse 2А, T type 5x20mm (for the mains power supply) 1
4. Screw М4х40 Cross slot DIN7985 4
5. Screw М4х30 Cross slot DIN965 2
6. Screw М4,2х35 Cross slot DIN7981 4
7. Washer М4 DIN522 4
8. Cable tie 2,5/160mm 2
9. Plastic cap 21
The panel should be installed by qualied specialists only.
The electronic components of the panel are vulnerable to electrostatic discharge.
Never add or turn off components which are being power supplied!
