TLV-300E/TAV-900A Professional Digital TV Receiver User’s Manual
1.4 REAR PANEL OVERVIEW
1.4.1 Overview
The rear panel has all the necessary connections to receive and send the incoming/outgoing
signal.
The real panel can be divided into 4 main parts:
Table 6 Regions in the rear panel
1. Video/audio output part
2. Transport stream (TS) input/output part
3. Communication part
4. Power part
The following diagram and descriptions give you a better understanding of the connections that you
need to make in order to receive and display the incoming signal. For specific information, please
refer to the input/output specifications.
SUB
SUB
MAIN
MAINANALOG AUDIO
ETHERNET
BNC OUT
(AES3/ASI/SMPTE-310M)
BNC IN
(ASI/SMPTE-310M)
RF IN 1
RF IN 2
FAULT
OUT
R1
L1HD OUT
VD OUTNC
Y/G OUT
Pb/B OUT L2/R2
Pr/R OUT
SDI OUT1
USB
NC
1 2 3 4 5
1 2 3 4
100- 240V~ 50-60Hz 40W

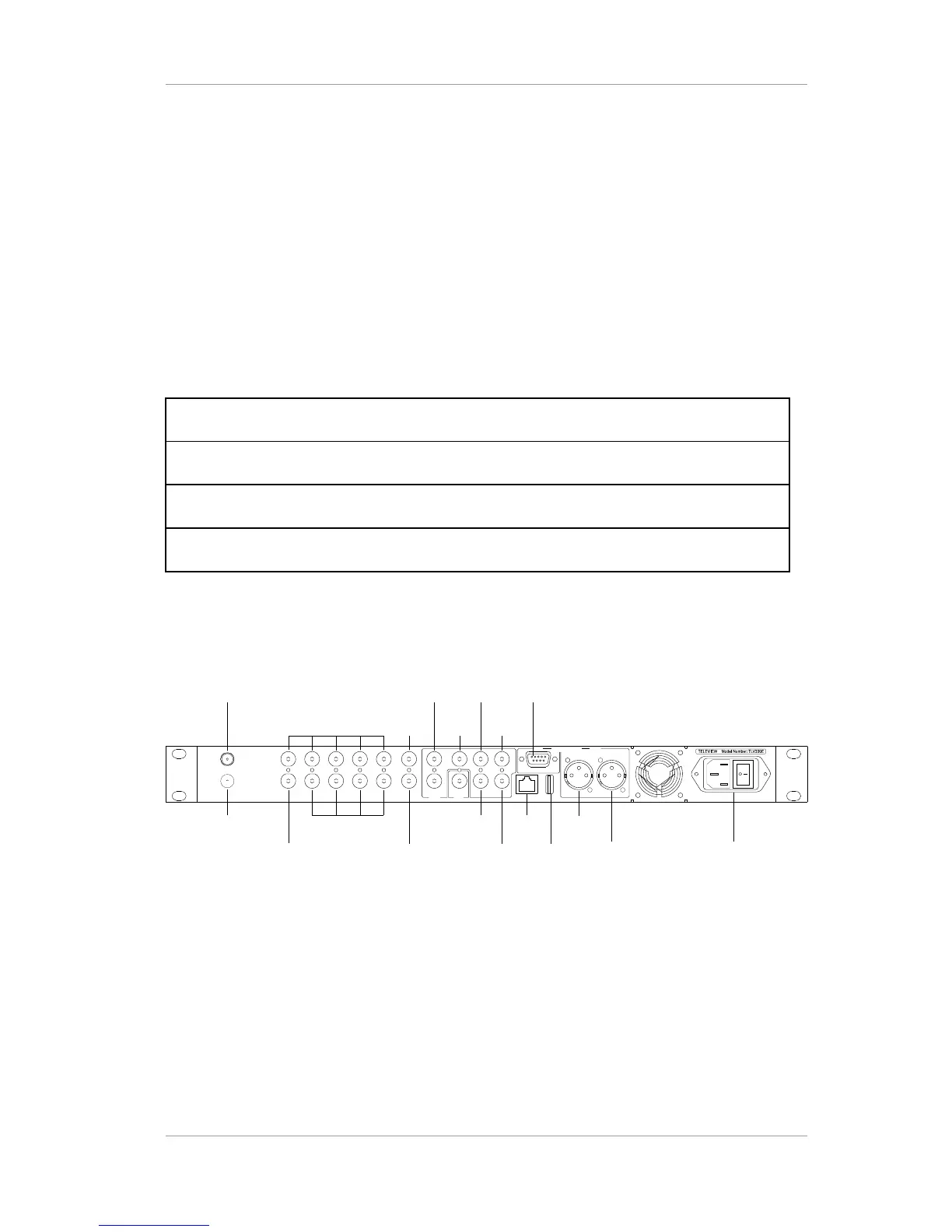

Figure
6
Rear Panel of the Receiver
Version 2.0 13
