TLV-300E/TAV-900A Professional Digital TV Receiver User’s Manual
SUB
SUB
MAIN
MAINANALOG AUDIO
100-240V~ 50 -60Hz 80W
BNC OUT
(AES3/ASI/SMPTE-310M)
BNC IN(ASI/SMPTE-310M)
RF IN 1
RF IN 2
(OPTIONAL)
FAULT
OUT
SDI OUT2
CVBS OUT
HD OUT
VD OUTNC
Y/G OUT
Pb/B OUT
Pr/R OUT
SDI OUT1
NC
1 2 3 4 5
1 2 3 4
ETHERNET
R1
L1
L2/R2
USB
Figure
7

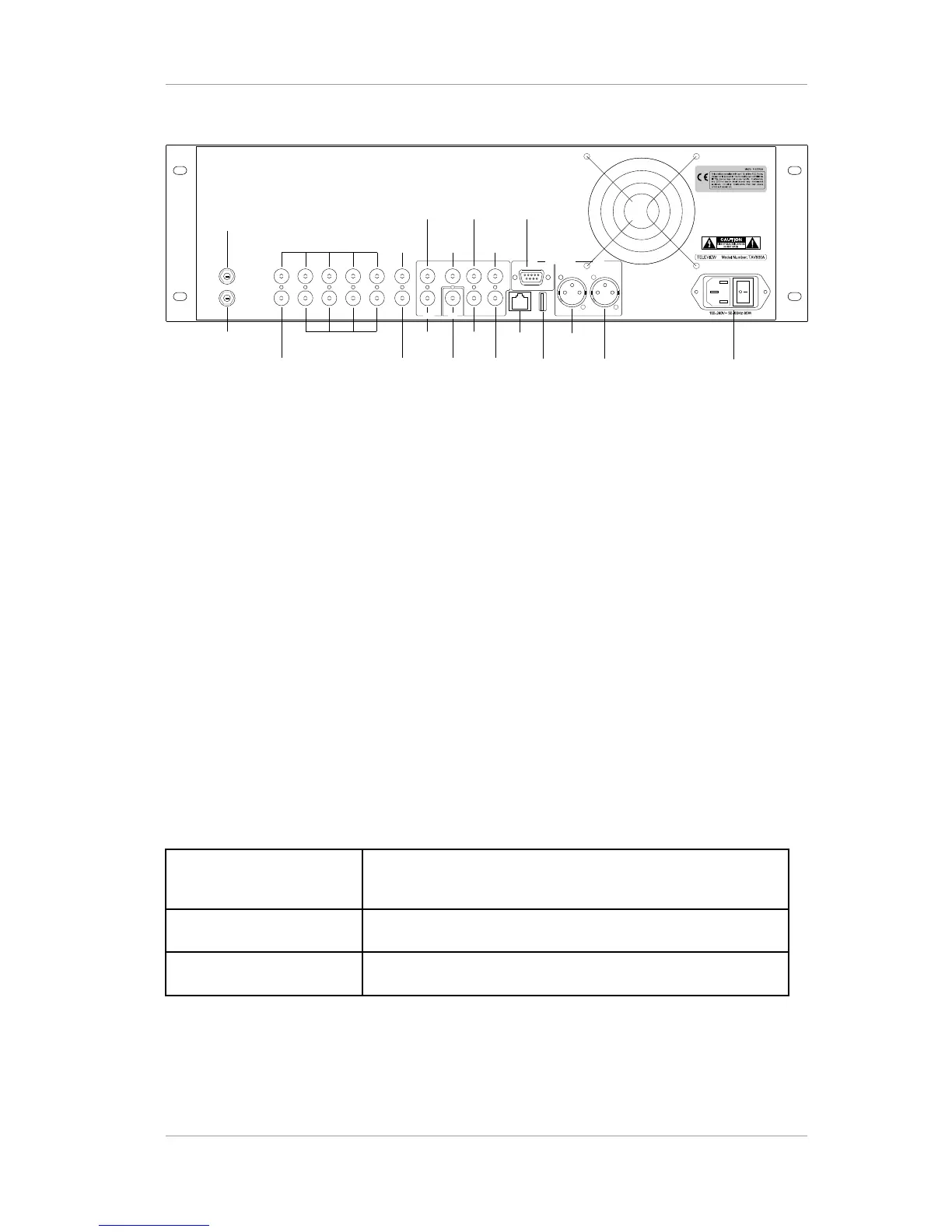

Rear Panel of the Receiver
Serial number overview: Ex) 88.00.20.03.10.00.00.01
88: Product identification (TLV-300E) / 95: Product identification (TAV-900A)
00: Option
20.03: Year of product produced
10: Month of product produced
00.00.01: Production number
1.4.2 Video Output
In the rear panel, there are analog component video output and one digital video output for MAIN
channel display. Composite output supplied SUB channel video output.
 MAIN channel analog video output connectors
YPbPr/RGB Three BNC type connectors enable analog video output signal
(YPbPr output of RGB output)
HD OUT A BNC type connector enables horizontal sync signal.
VD OUT A BNC type connector enables vertical sync signal.
The Y/Pb/Pr signal supports 1080i, 720p, 480p (576p) and 480i (576i) video output mode.
Version 2.0 14
