TLV-300E/TAV-900A Professional Digital TV Receiver User’s Manual
TLV300E DIGITAL TV RECEIVER
ENTER
EXIT
POWER STATUS FAULT
LOCK

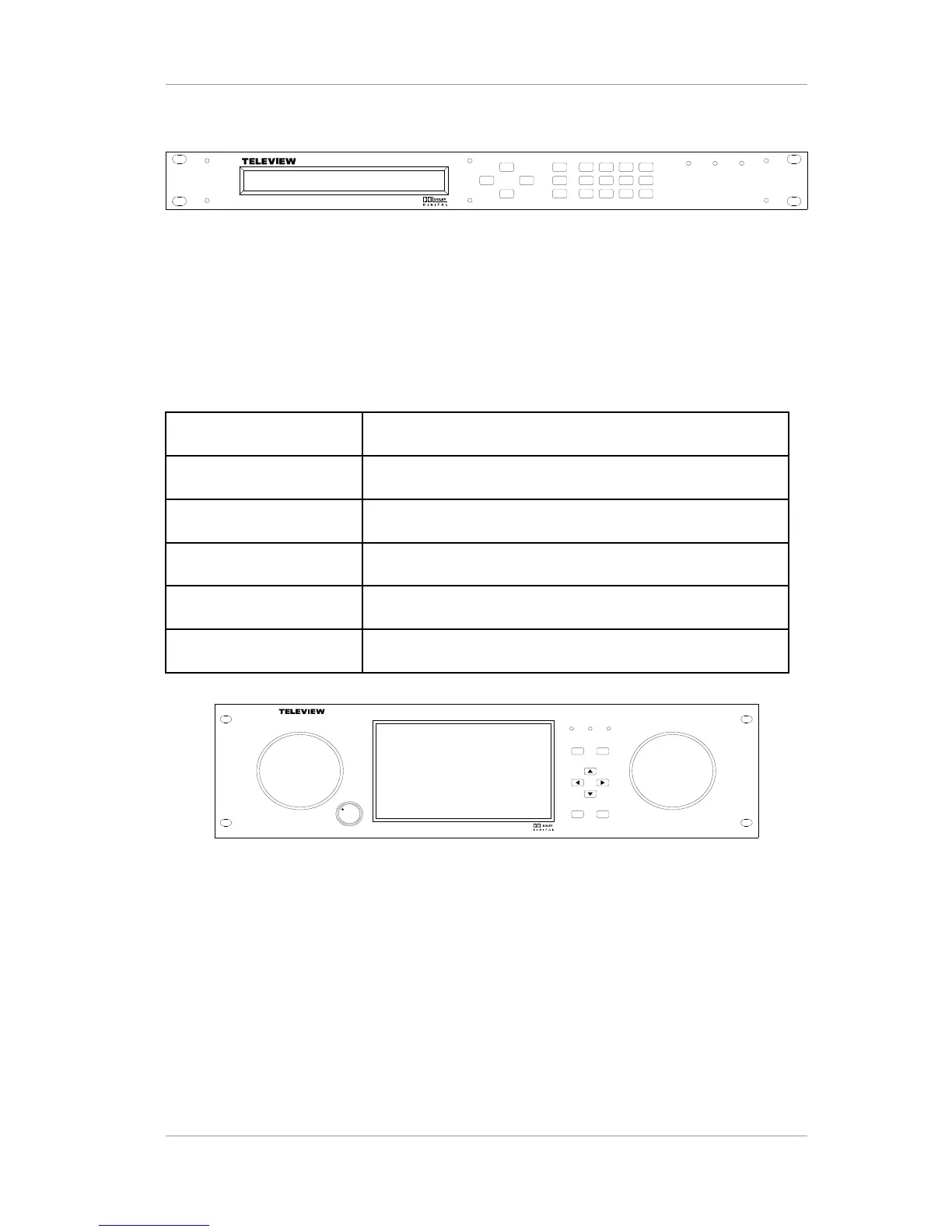

Figure
1
Front Panel View of the TLV-300E Receiver
The Front panel of TLV-900A can be divided into 6 main parts:
Table 3 Front panel components
1 7 inch color TFT-LCD display
2 Two speakers
3 Volume knob
4 Function buttons (Menu, Mute, SLCT(==ENTER), EXIT)
5 Arrow buttons
6 3 LEDs (POWER, STATUS, FAULT)
TAV900 A DT V M ON ITO R
POWER
M ENU M UTE
STATUS FAULT
SLCT
EXIT
VOLUME MIN M AX
Figure
2
Front Panel View of the TAV-900A Receiver
Version 2.0 9
