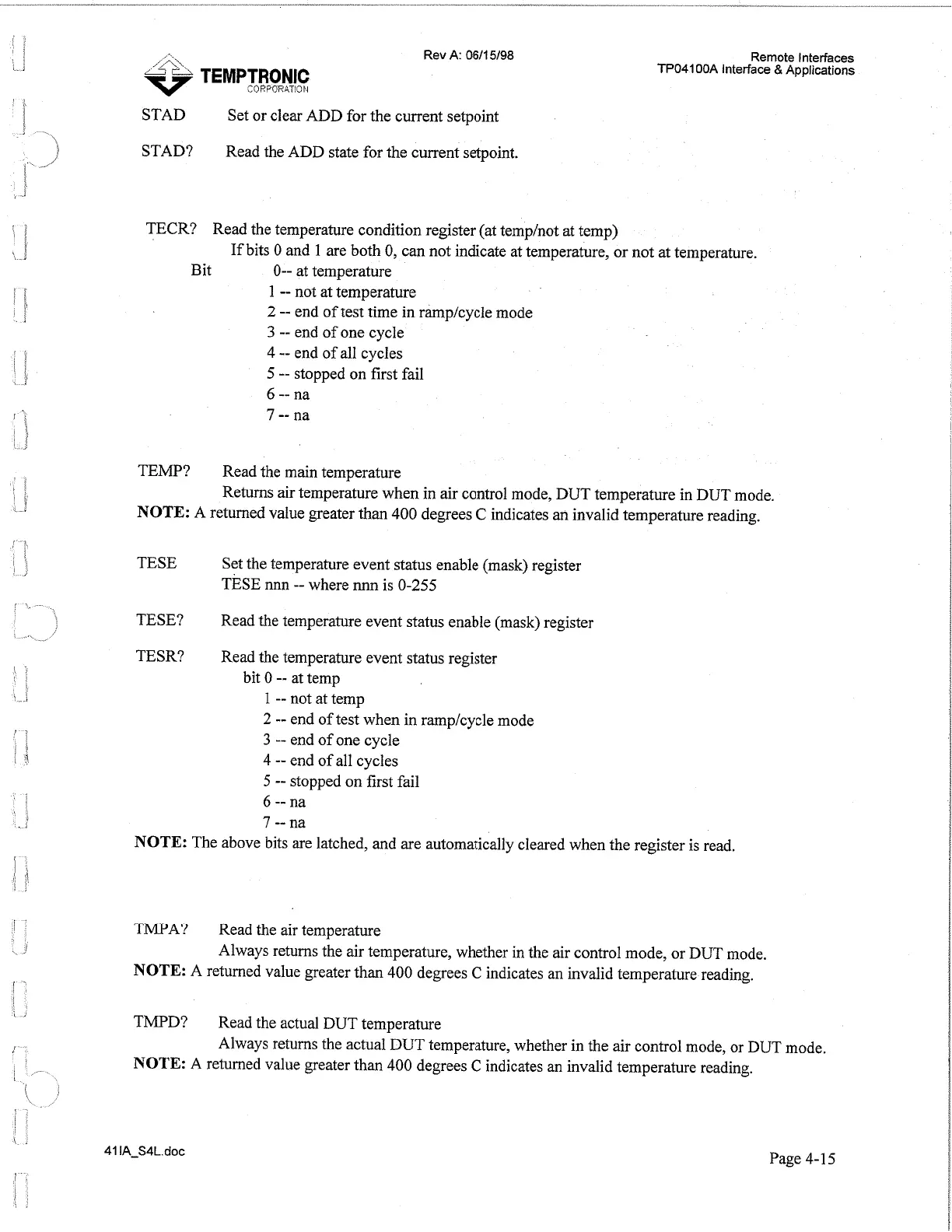

TEMPTRONIC
CORFORATION
Rev
A: 0611
5/98
Remote Interfaces
TP04100A Interface
8
Applications
STAD
Set or clear ADD for the current setpoint
STAD? Read the ADD state for the current setpoint.
TECR? Read the temperature condition register (at templnot at temp)
If bits 0 and
1
are both 0, can not indicate at temperature, or not at temperature.
Bit 0-- at temperature
1
--
not at temperature
2
--
end of test time in ramp/cycle mode
3
--
end of one cycle
4
--
end of all cycles
5
--
stopped on first fail
6
--
na
7
--
na
TEMP? Read the main temperature
Returns air temperature when in air control mode, DUT temperature in DUT mode.
NOTE:
A returned value greater than 400 degrees C indicates an invalid temperature reading.
TESE Set the temperature event status enable (mask) register
TESE
nnn
--
where nnn is 0-255
TESE? Read the temperature event status enable (mask) register
TESR? Read the temperature event status register
bit 0
--
at temp
1
--
not at temp
2
--
end of test when in ramplcycle mode
3
--
end of one cycle
4
--
end of all cycles
5
--
stopped on first fail
6
--
na
7
--
na
NOTE:
The above bits are latched, and are automatically cleared when the register is read.
TMPA? Read the air temperature
Always returns the air temperature, whether in the air control mode, or DUT mode.
NOTE:
A returned value greater than 400 degrees C indicates an invalid temperature reading.
TMPD?
Read the actual DUT temperature
Always returns the actual DUT temperature, whether in the air control mode, or DUT mode.
NOTE:
A returned value greater than 400 degrees C indicates an invalid temperature reading.
Page 4-1
